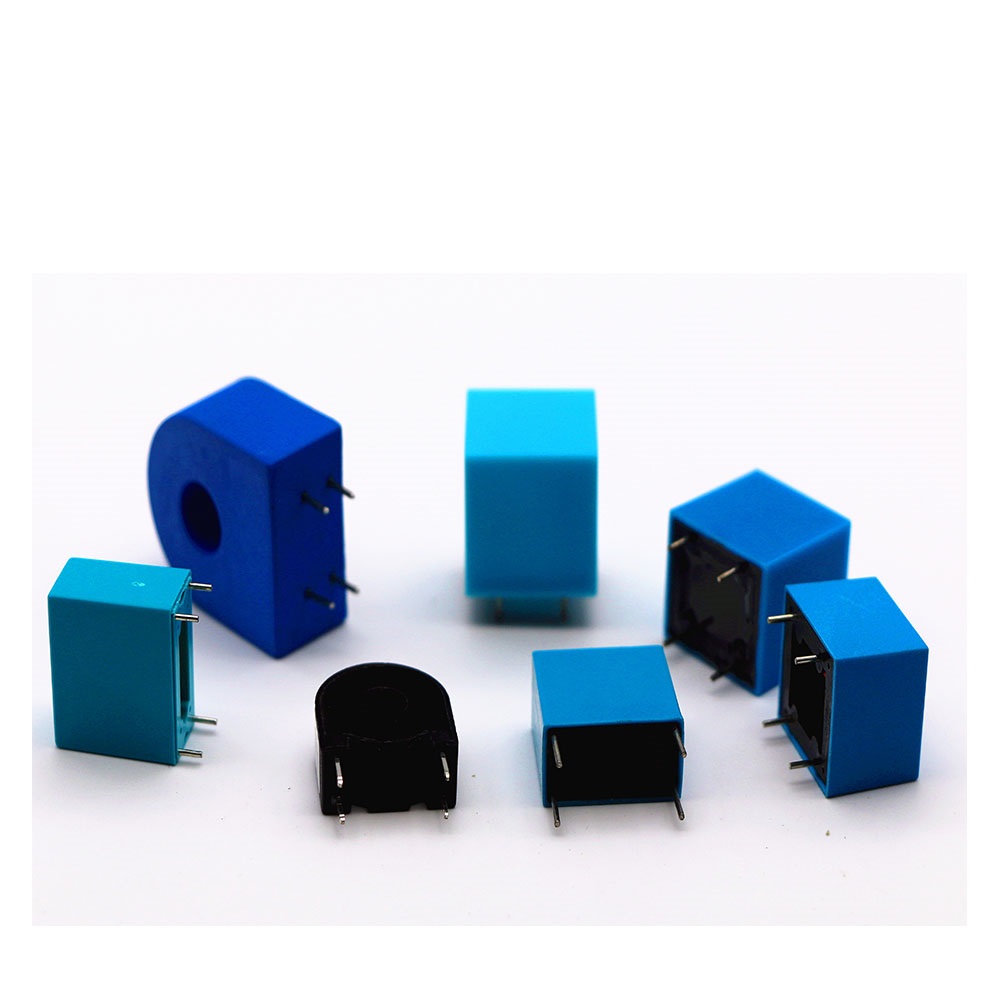

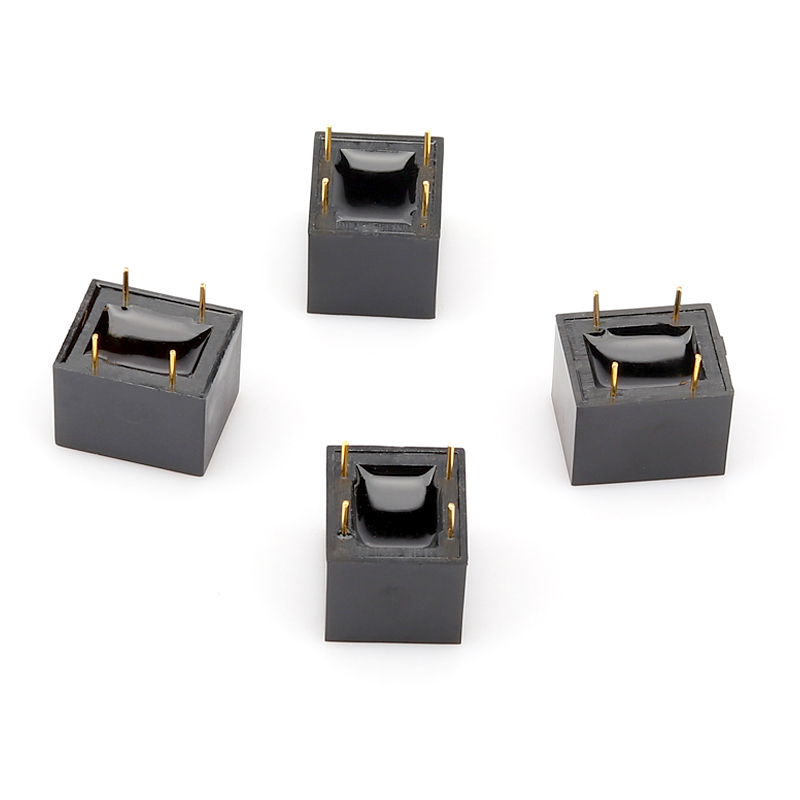

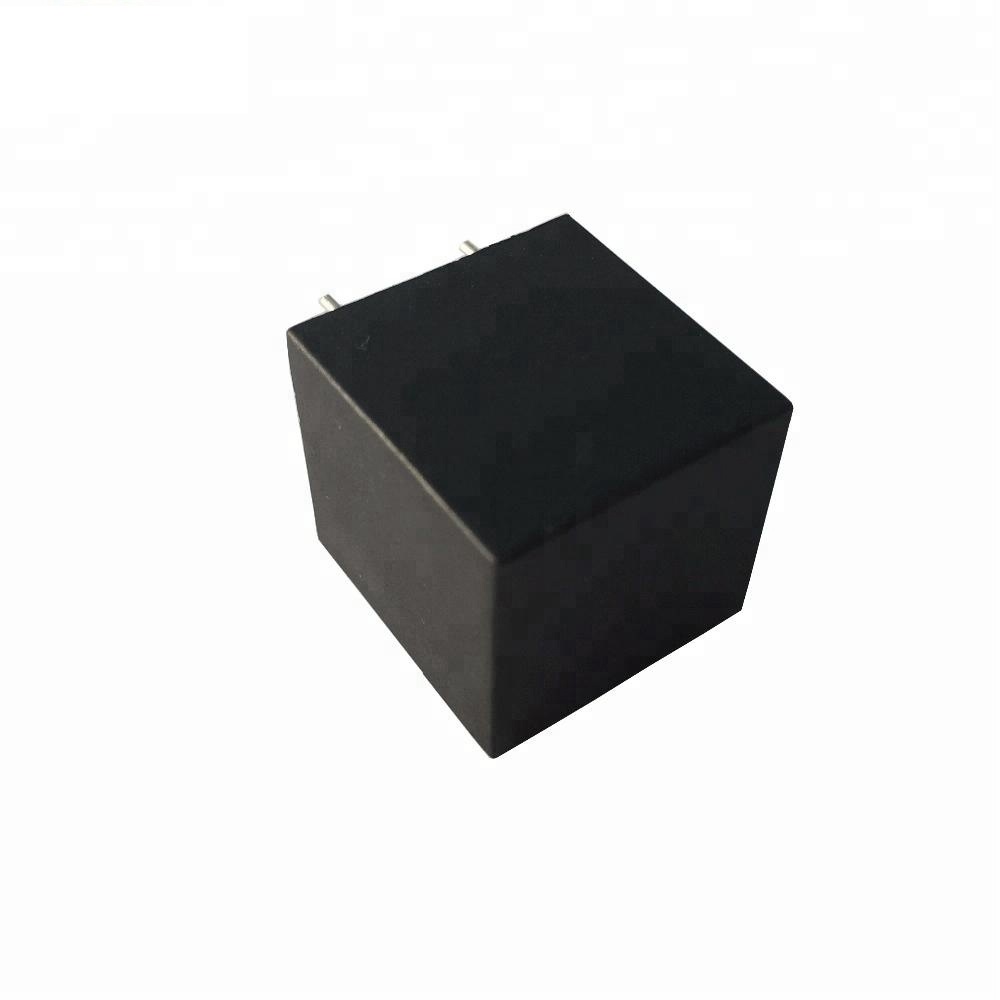

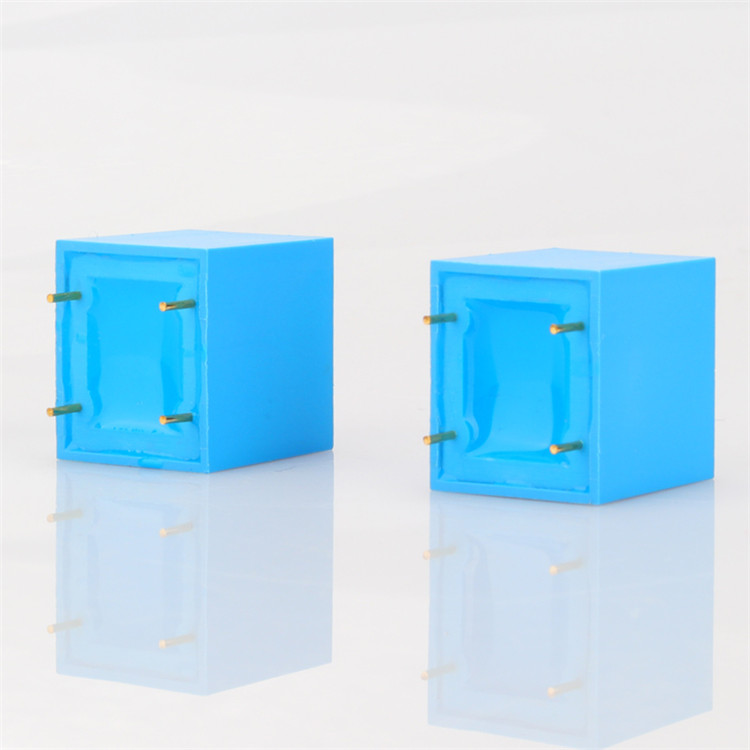

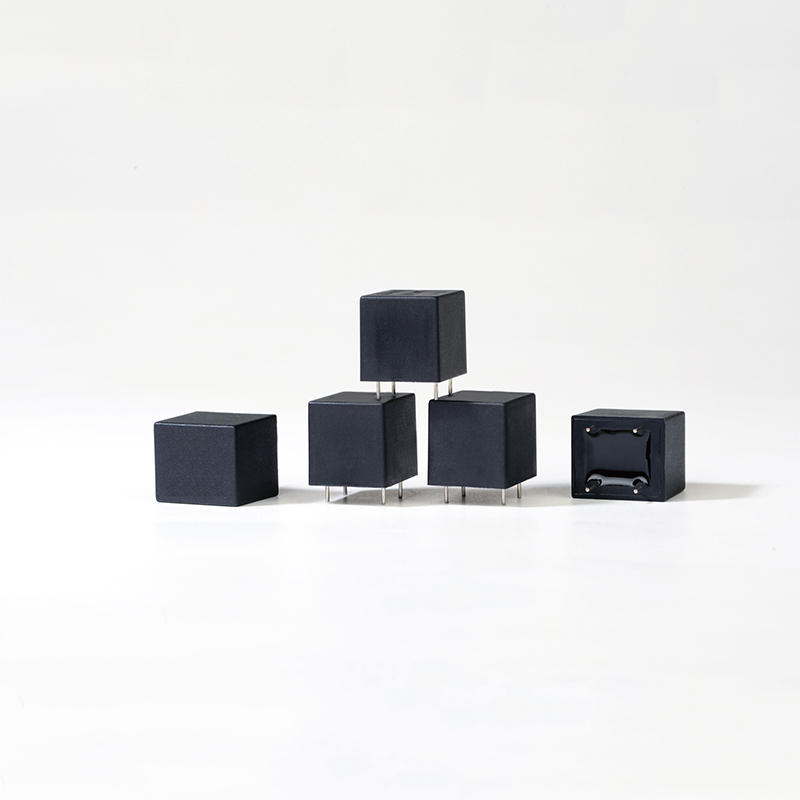

PCB Mount Current-type Voltage/Potential Transformer PT

P/N: MLVC-2144


  • Installation method: PCB mounted
  • Rated input current: 2mA/2mA
  • Hi-pot test: 3000V-4000V/1mA1min
  • DC resistance: DC500V/100M ohm
  • Core Material: Ultra crystalline Core
  • Load Resistance: 20Q.50Q.100Q
  • Insulation resistance: ≥500MQ(500VDC)
  • Insulation withstand voltage: 4KV/1mA/60S
  • Operating Frequency: 50-400Hz
  • Operating Temperature: 25°C~+75Cor-40C~+95°C
  • Insulation: Epoxy resin encapsulated
  • Outer Case: Flame Retardant PBT
  • Application: Voltage isolation measurement, power compensation, microcomputer protection, current measurement, precision power meter, Instrument and sensors
  • Product Detail

    Product Tags

    Description

    Product Name PCB Mount Current-type Voltage/Potential Transformer PT
    P/N MLVC-2144
    Installation method PCB mounted
    Rated input current 2mA/2mA
    Hi-pot test 3000V-4000V/1mA1min
    DC resistance DC500V/100M ohm
    Core Material Ultra crystalline Core
    Accuracy 0.1,0.2,0.5
    Load Resistance 20Ω,50Ω,100Ω
    Insulation resistance ≥500MΩ (500VDC)
    Insulation withstand voltage 4KV/1mA/60S
     Operating Frequency 50-400Hz
      Operating Temperature -25℃ ~ +75℃ or -40℃ ~ +95℃
    Insulation Epoxy resin encapsulated
    Outer Case  Flame Retardant PBT
    Application Voltage isolation measurement, power compensation, microcomputer protection, current measurement, precision power meter, Instrument and sensors

    Features

    Small in size

    Various of configuration and output characteristics, customized products are welcome

    High precision

    Nanocrystalline core
    Very high linearity

    PCB mounted, epoxy resin encapsulated

    Excellent linearity over the whole range

    Rated input and output Current ratio Accuracy class Load resistance Frequency
    2mA/2mA 1000:1000 0.1 or 0.2 ≤150 50-400Hz
    2mA/2mA 1000:1000 0.1 or 0.2 ≤150 50-400Hz
    1mA/1mA, 2mA/2mA 1000:1000 0.1 or 0.2 ≤500 50-400Hz
    2mA/2mA 1000:1000 0.1 or 0.2 ≤200 50-400Hz
