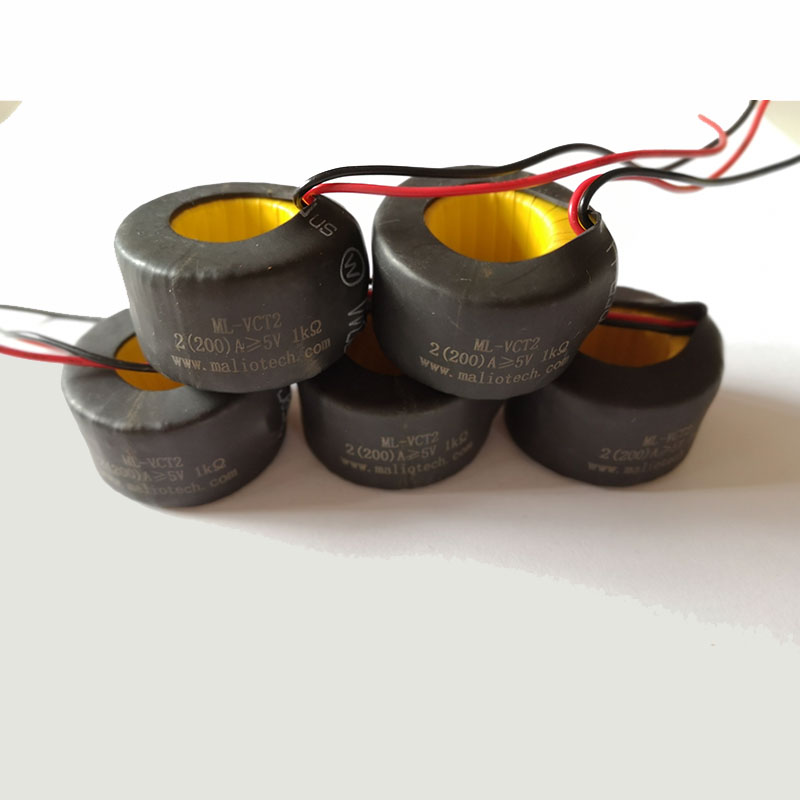

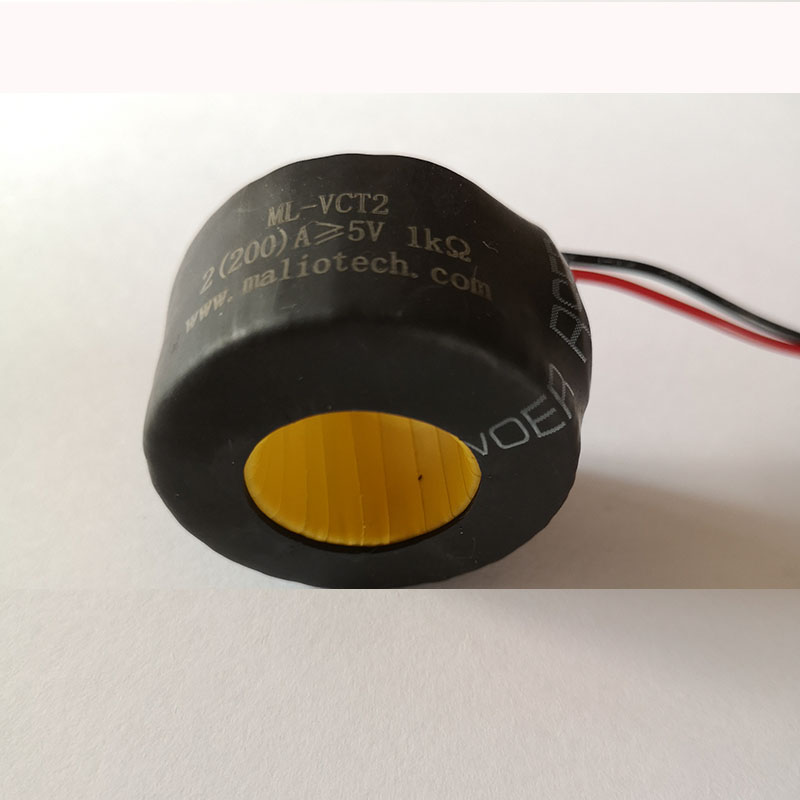

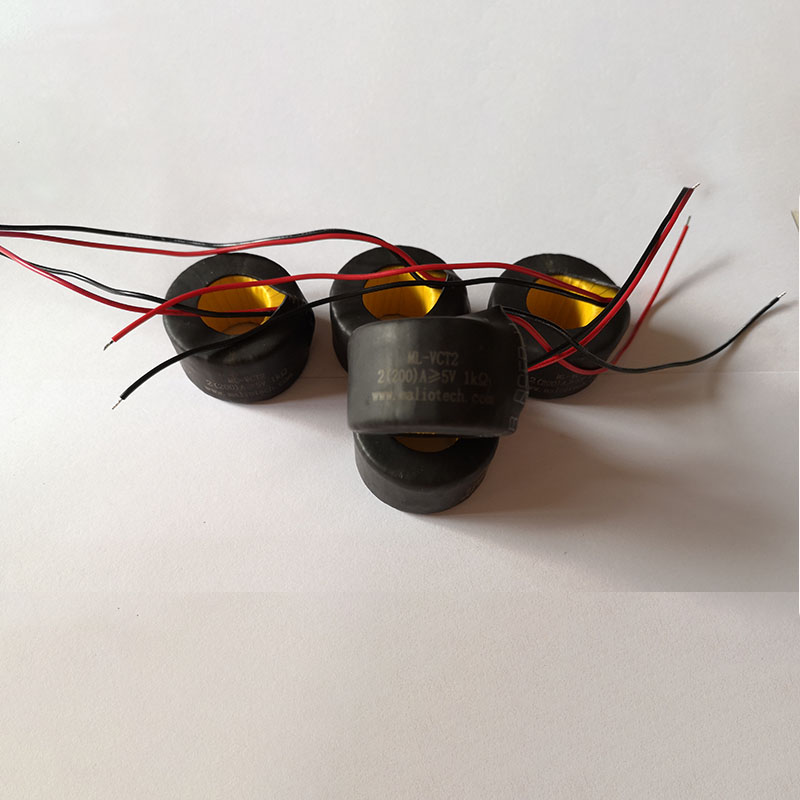

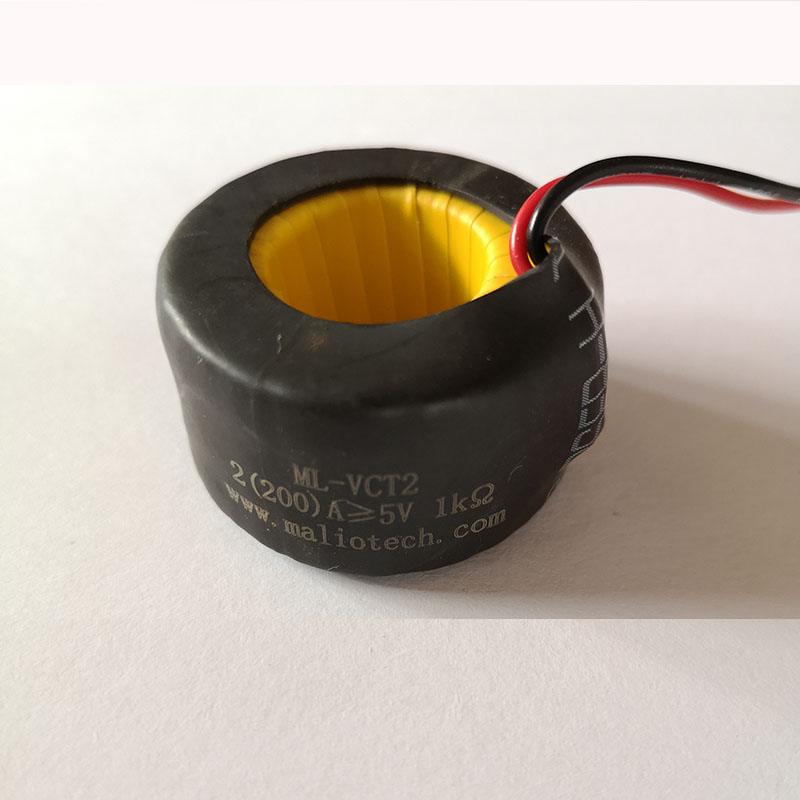

Product Name | 200A 5V output voltage Current Transformer Bushing Type |
P/N | ML-VCT2 |
Installation method | Lead wire |
Primary Current | 2(200)A |
Secondary current | ≥5V |
Load Resistance | 1KΩ |
Core Material | Silicon steel |
Insulation resistance | >1000MΩ (500VDC) |
Insulation withstand voltage | 4000V 50Hz/60S |
Operating Frequency | 50Hz~60Hz |
Operating Temperature | -40℃ ~ +85℃ |
Relative humidity | 95% |
Application | Power transducer, electronic energy meter, precision power meter and other power and energy monitoring devices Over current protection circuit of motor and other electrical appliances. |
Lead wire contact, easy fixing to the inside of meter
Small volume, easy for installation; Output voltage
Big inner hole, easy connection to any busbar and primary cables
Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.
