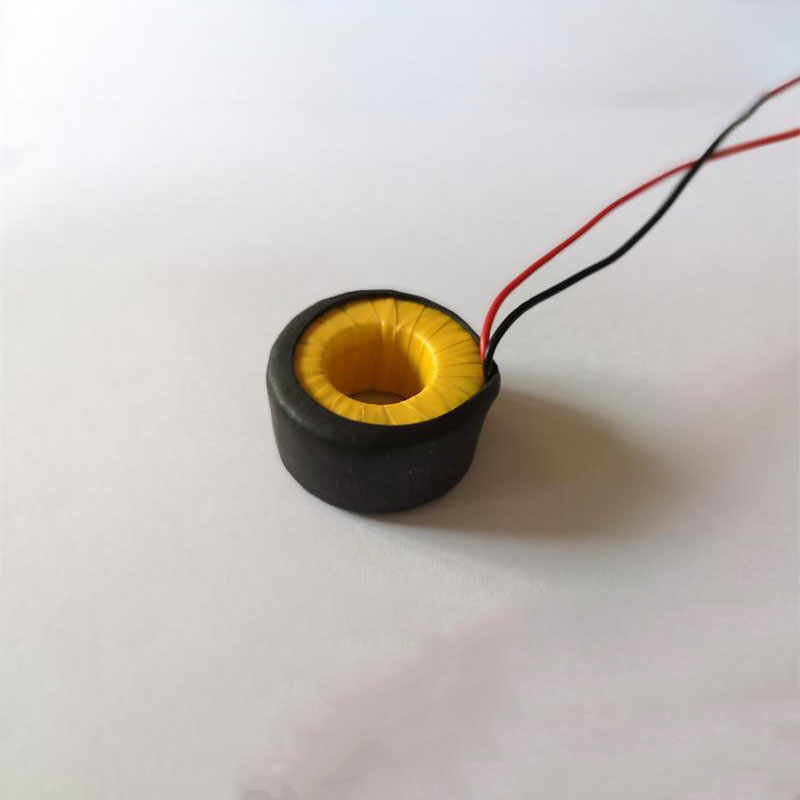

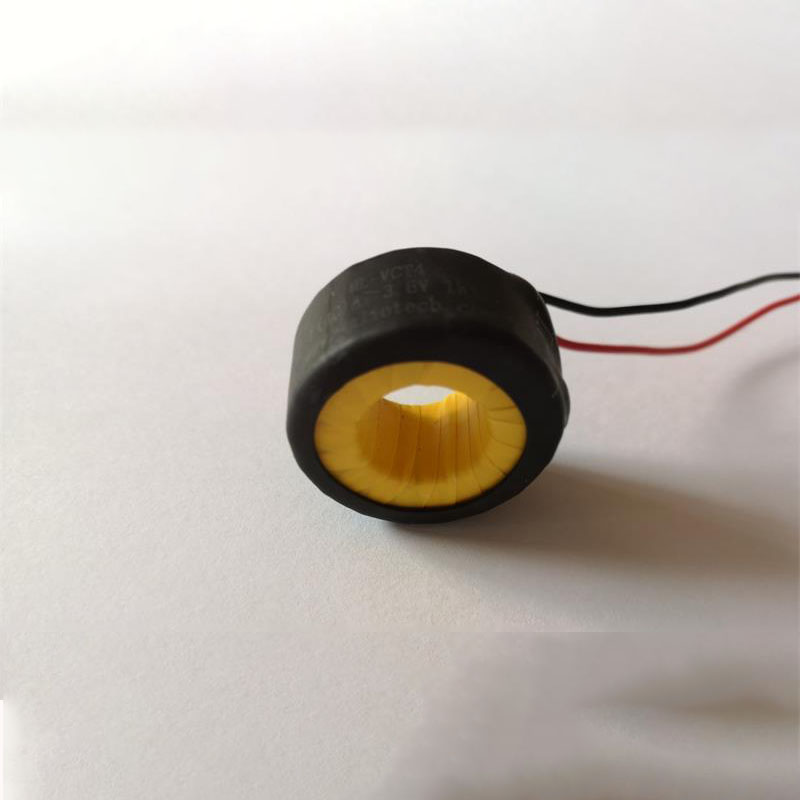

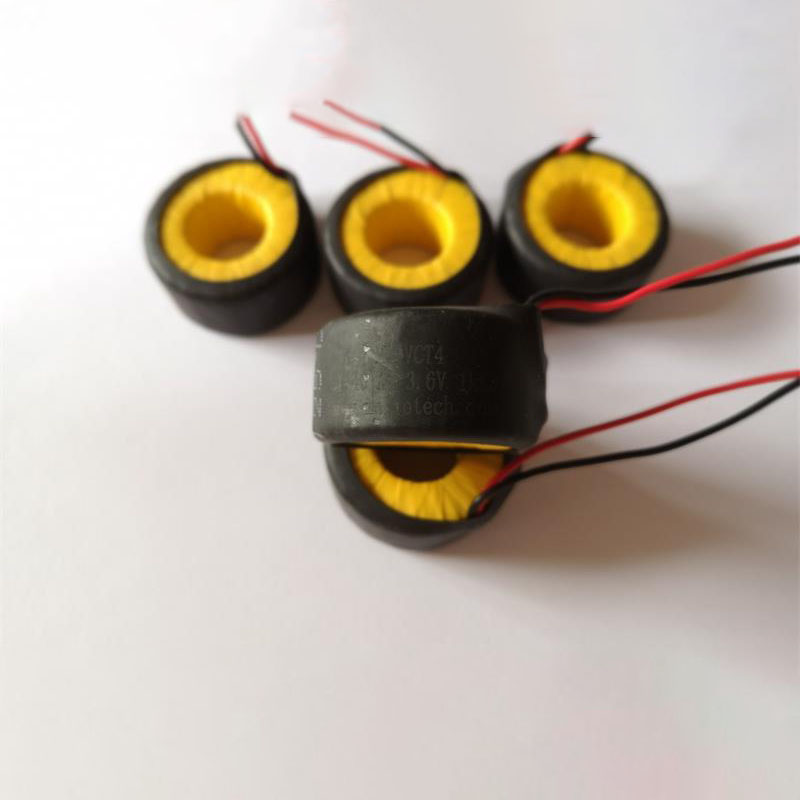

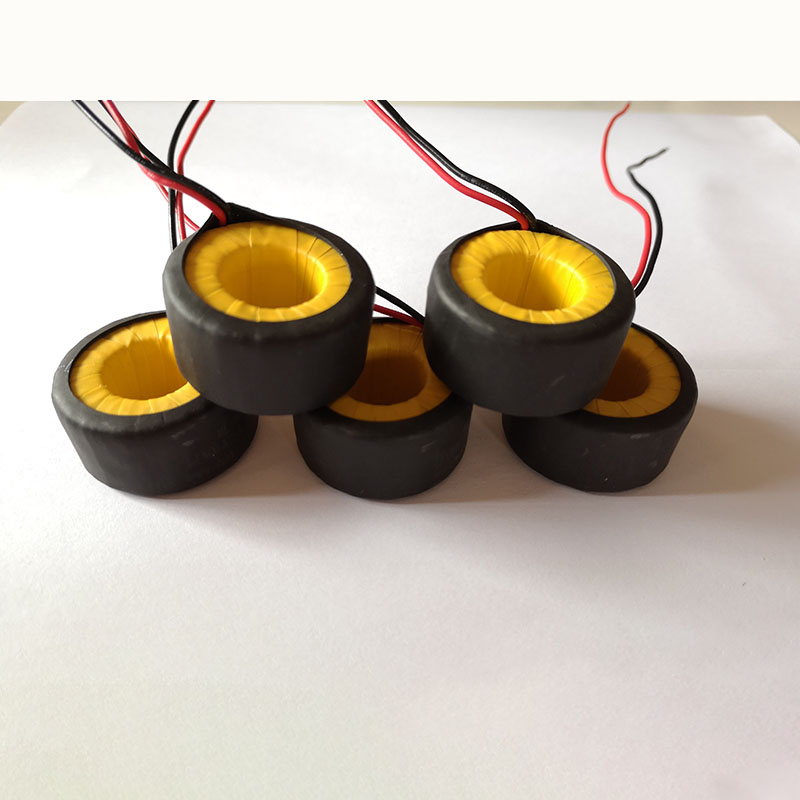

40A 3.6V output voltage Current Transformer Bushing Type

P/N:ML-VCT4


  • Installation method: Lead wire
  • Primary Current: 1(40)A
  • Secondary current: ≥3.6V
  • Load Resistance: 1KΩ
  • Core Material: Ultracrystalline
  • Phase Error: <15'
  • Insulation resistance: >1000MQ(500VDC)
  • Insulation withstand voltage: 4000V 50Hz/60S
  • Operating Frequency: 50Hz~60Hz
  • Operating Temperature: -40°C~+85°C
  • Relative humidity: 95%
  • Application: Power transducer, electronic energy meter, precision power meter and other power and energy monitoring devicesOver current protection circuit of motor and other electrical appliances
  • Product Detail

    Product Tags

    Description

    Product Name 40A 3.6V output voltage Current Transformer Bushing Type
    P/N ML-VCT4
    Installation method Lead wire
    Primary Current 1(40)A
    Secondary current ≥3.6V
    Load Resistance 1KΩ
    Core Material Ultracrystalline
    Phase Error <15'
    Insulation resistance >1000MΩ (500VDC)
    Insulation withstand voltage 4000V 50Hz/60S
     Operating Frequency 50Hz~60Hz
      Operating Temperature -40℃ ~ +85℃
    Relative humidity 95%
    Application Power transducer, electronic energy meter, precision power meter and other power and energy monitoring devices
    Over current protection circuit of motor and other electrical appliances.

    Features

    Easy fixing to the inside of meter

    Small volume, easy for installation

    Output voltage

    Big inner hole, easy connection to any busbar and primary cables

    Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.

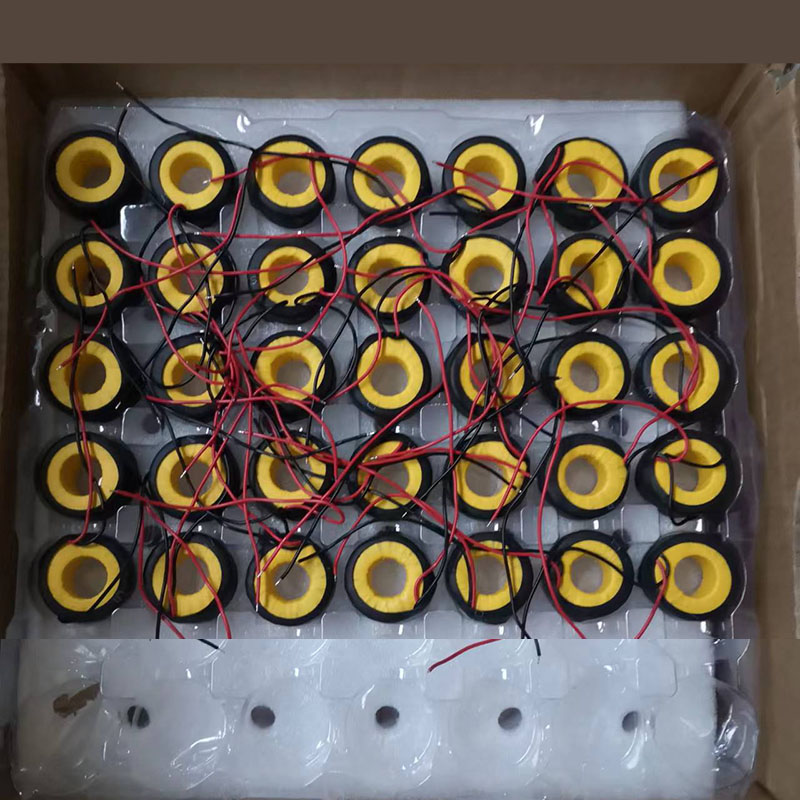

    PN:ML-VCT2-6

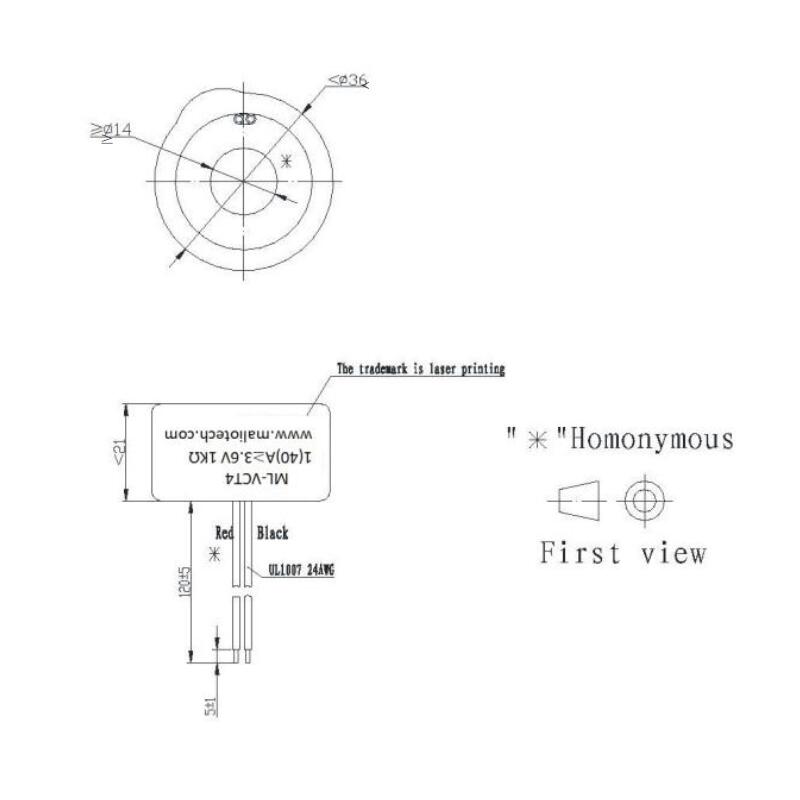

    PN:ML-VCT4-6
