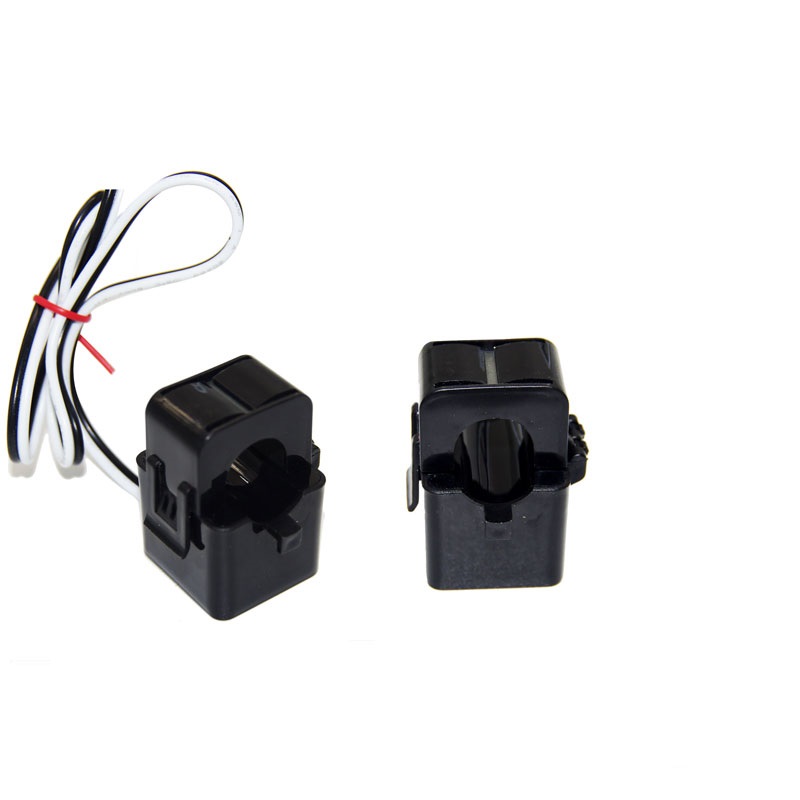

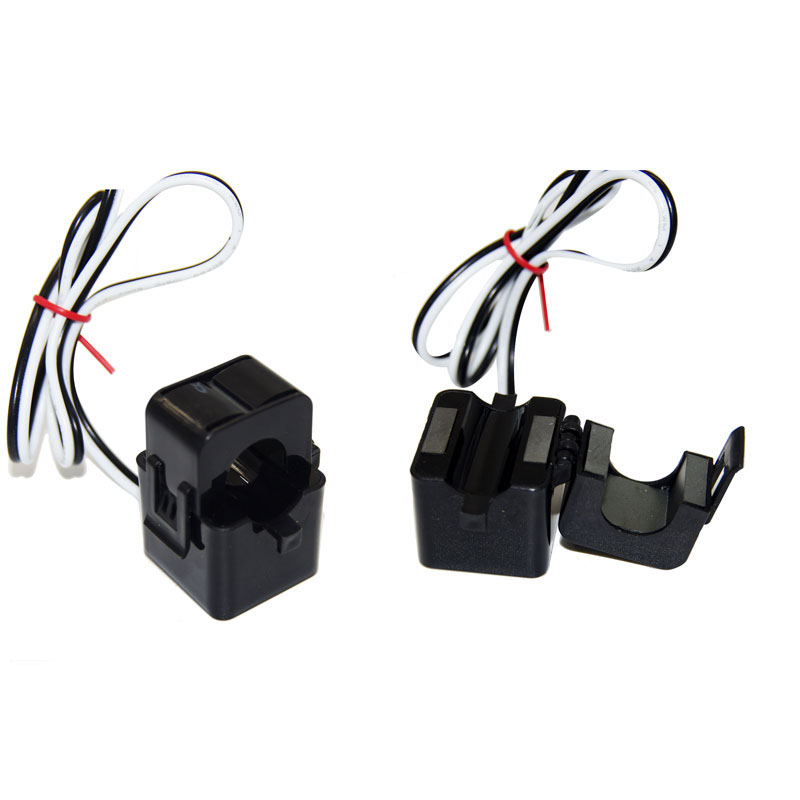

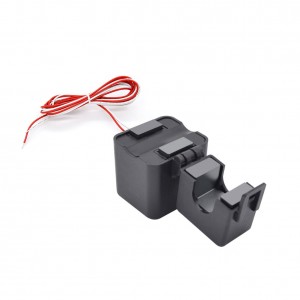

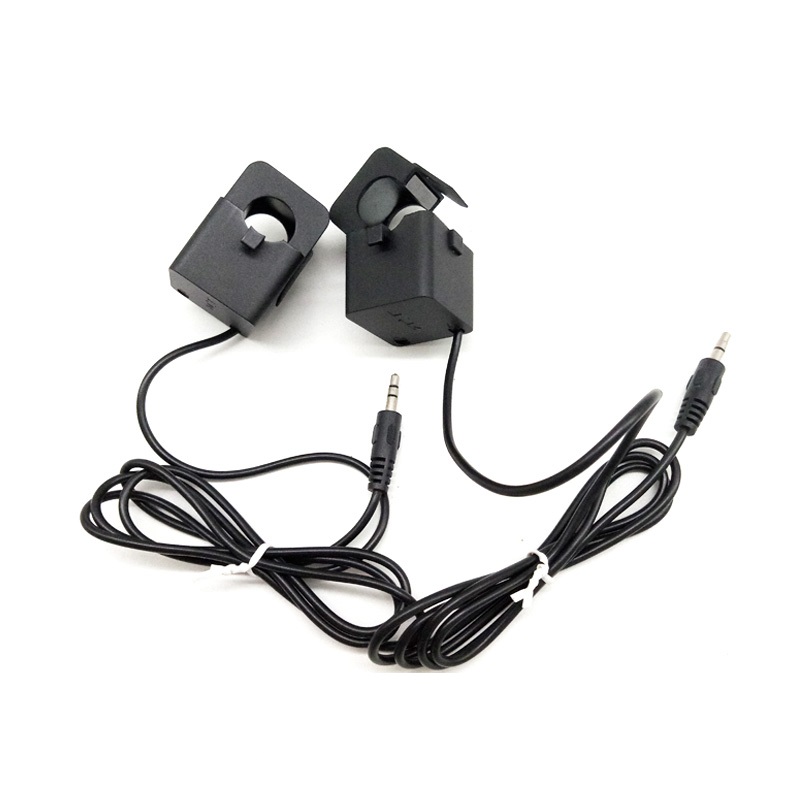

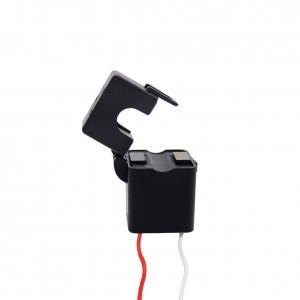

Split Core Current Transformer

P/N: MLSC-2145


  • Installation method: Lead wire
  • Primary Current: 50A,100A,150A,200A,300A,500A,1000A
  • Core Material: Ferrite Core. Silicon Steel Core(CRGO):Ultra crystalline Core
  • Rated Output: 0.333V(AC):0-500 mA
  • Turns Ratio: 1:20;1:30;1:40;1:60
  • Accuracy: 0.1,0.2,0.5 +1%
  • Load Resistance: 10Q
  • Inner Diameter: 8.16,25,32.40,55 or request
  • Insulation resistance: ≥500MQ(500VDC)
  • Operating Frequency: 50-400Hz
  • Operating Temperature: -25°C~+70°C
  • Application: Current Measurement,Electrical loading monitoring, Energy and sub-metering products, Instruments and sensors, Network equipment
  • Product Detail

    Product Tags

    Description

    Product Name Split Core Current Transformer
    P/N MLSC-2145
    Installation method Lead wire
    Primary Current 50A ,100A,150A,200A, 300A,500A, 1000A
    Core Material Ferrite Core; Silicon Steel Core(CRGO); Ultra crystalline Core
    Rated Output 0.333V(AC); 0~500 mA
    Turns Ratio 1:20;1:30;1:40;1:60
    Accuracy 0.1,0.2,0.5 ±1%
    Load Resistance 10Ω
    Inner Diameter 8,16,25,32,40,55 or request
    Phase Error <15',<30'
    Insulation resistance ≥500MΩ (500VDC)
    Insulation withstand voltage 2.5KV/60S
     Operating Frequency 50-400Hz
      Operating Temperature -25℃ ~ +70℃
    Outer Case  Flame Retardant PBT
    Application Current Measurement, Electrical loading monitoring, Energy and sub-metering products, Instruments and sensors, Network equipment

    Features

    Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.

    Comparing other materials, with high accuracy, due to nanocrystalline high permeability.

    Energy conservation & environment protection, huge potential market

    Wide inner window, allowing clamping of big cables or bus-bars



    Input current

    Available output

    Current output

    Voltage output

    MCT10 Series

    15A





    5mA; 10mA;20mA;30mA





    0.25V;0.33V;0.5V;1V;2V

    30A

    50A

    60A

    75A

    MCT16 Series

    50A



    20mA; 33.3mA;

    40mA;50mA;100mA





    0.25V;0.33V;0.5V;1V;2V

    80A

    100A

    120A

    150A

    MCT24 Series

    100A



    5A

    (Secondary current)



    1VA;2.5VA;5VA;

    (Burden)

    150A

    200A

    250A

    300A

    MCT30 Series

    200A



    20mA;33.3mA;

    40mA;50mA;

    100mA;1A;5A



    0.25V;0.33V;0.5V;1V;2V

    300A

    400A

    500A

    600A
