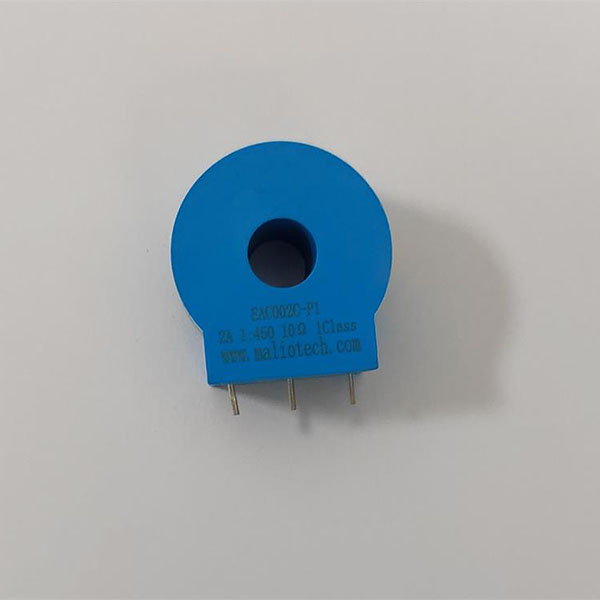

EAC002C-P1 Precision Current Transformer UL94-V0

P/N:EAC002C-P1


  • Installation method: PCB
  • Primary Current: 2A
  • Turns Ratio: 1:450
  • Load Resistance: 10Ω
  • Core Material: Ultracrystalline
  • Insulation resistance: >1000MQ(500VDC)
  • Insulation withstand voltage: 4000V 50Hz/60S
  • Operating Frequency: 50Hz~400Hz
  • Operating Temperature: -40°C~+85°C
  • Encapsulant: Epoxy
  • Outer Case: Flame Retardant rating UL94-V0
  • Application: Power transducer, Electronic energy meter, precision power meter and other power and energy monitoring devicesOver current protection circuit of motor and other electrical appliances
  • Product Detail

    Product Tags

    Description

    Product Name Precision Current Transformer UL94-V0
    P/N EAC002C-P1
    Installation method PCB
    Primary Current 2A
    Turns Ratio 1:450
    Accuracy 1 Class
    Load Resistance 10Ω
    Core Material Ultracrystalline
    Phase Error <15'
    Insulation resistance >1000MΩ (500VDC)
    Insulation withstand voltage 4000V 50Hz/60S
     Operating Frequency 50Hz~400Hz
      Operating Temperature -40℃ ~ +85℃
    Encapsulant Epoxy
    Outer Case  Flame Retardant rating UL94-V0
    Application Power transducer, Electronic energy meter, precision power meter and other power and energy monitoring devices
    Over current protection circuit of motor and other electrical appliances.

    Features

    Secondary output with pin make CT can be mounted directly on the PCB, easy integration, saving production cost

    Big inner hole, suitable for any primary cables and bus bars

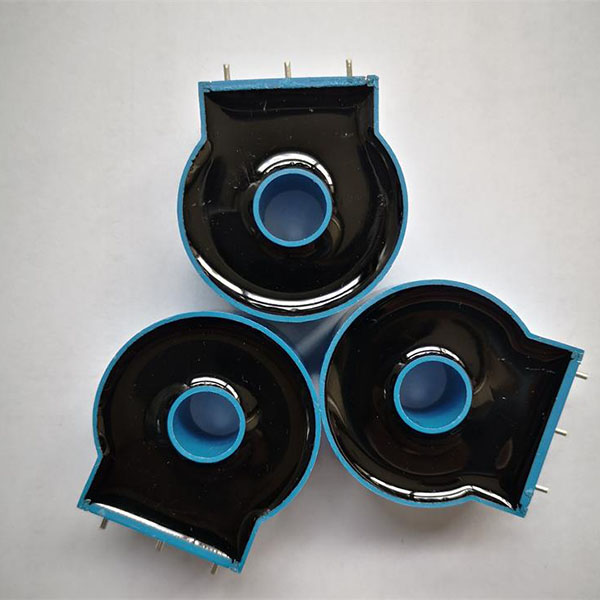

    Encapsulated with epoxy resin, high insulation and isolation capacity, moisture and shock resistant

    Wide linearity range, high output current accuracy and good consistency

    Made of PBT flame retardant plastic casing

    RoHS Compliance is available on request

    Different casing colors available on request



    PN:EAC002C-P1-7

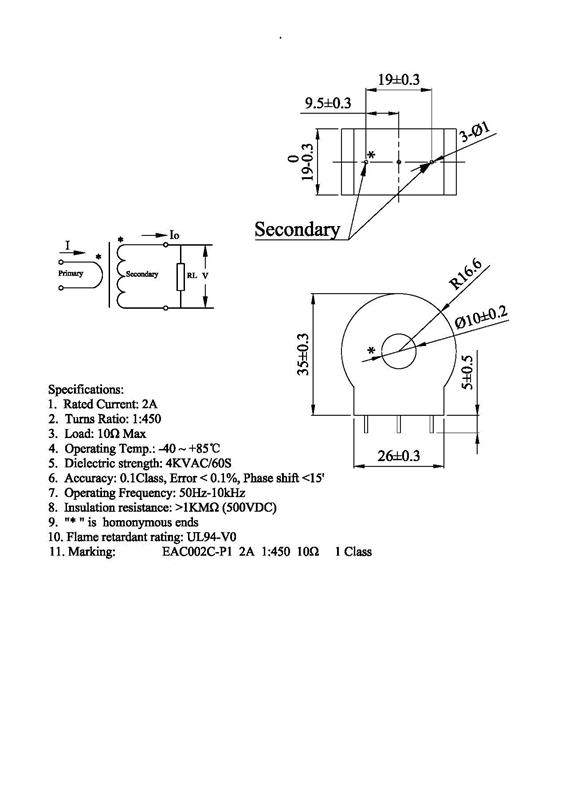

    PN:EAC002C-P1-8
