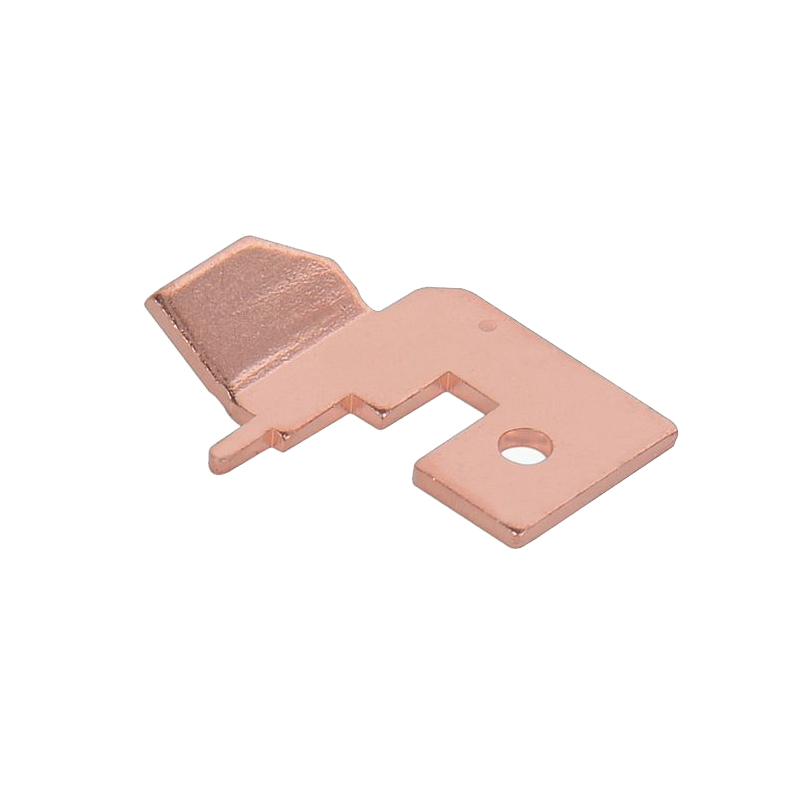

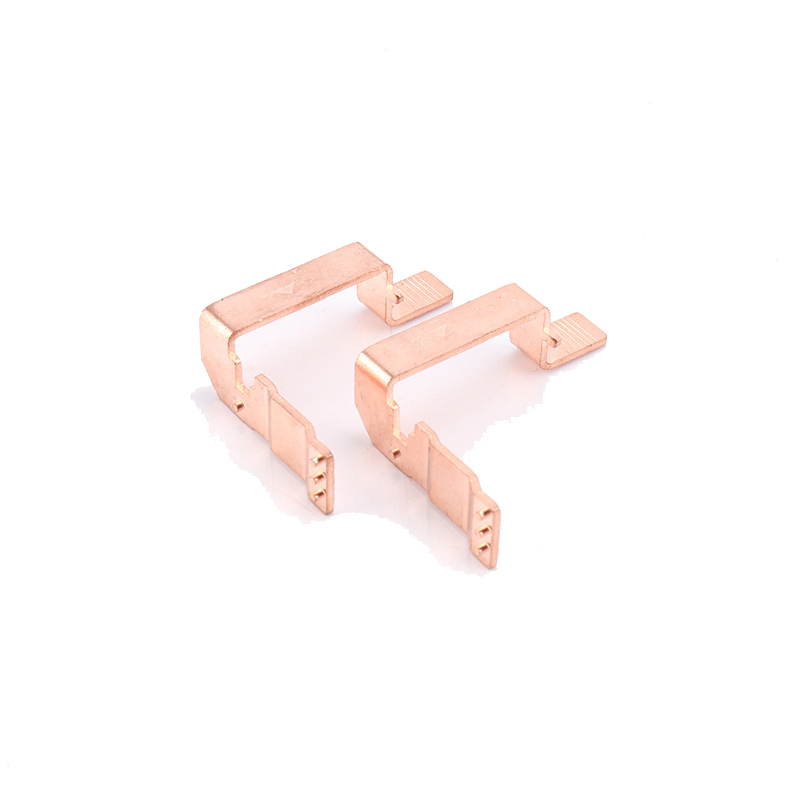

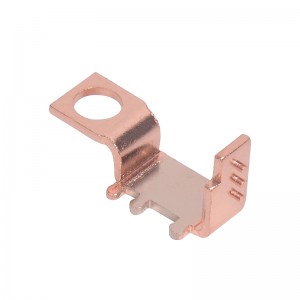

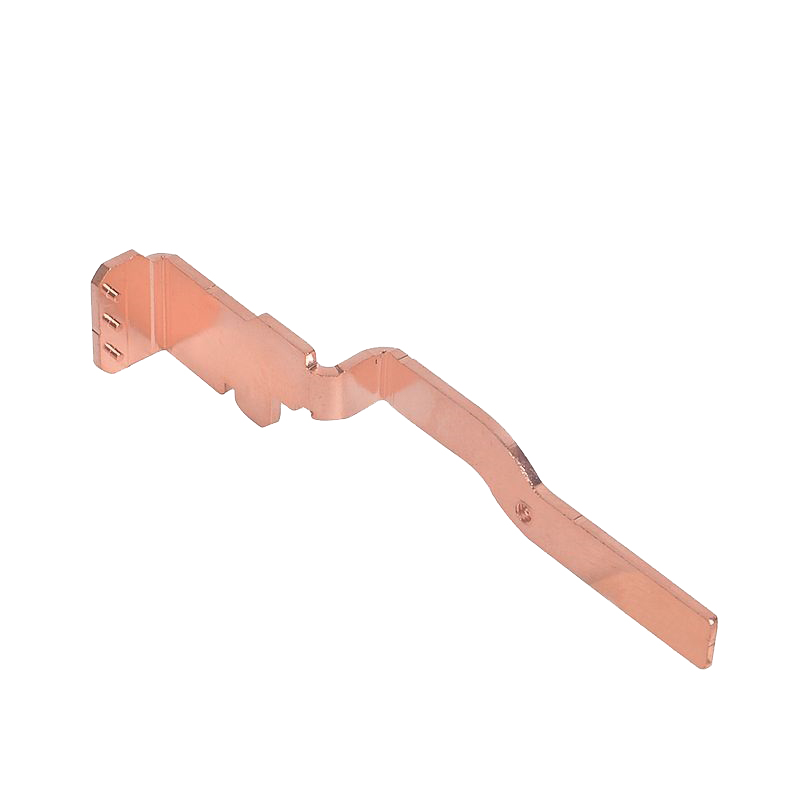

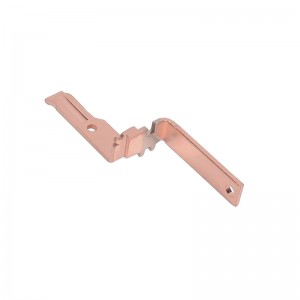

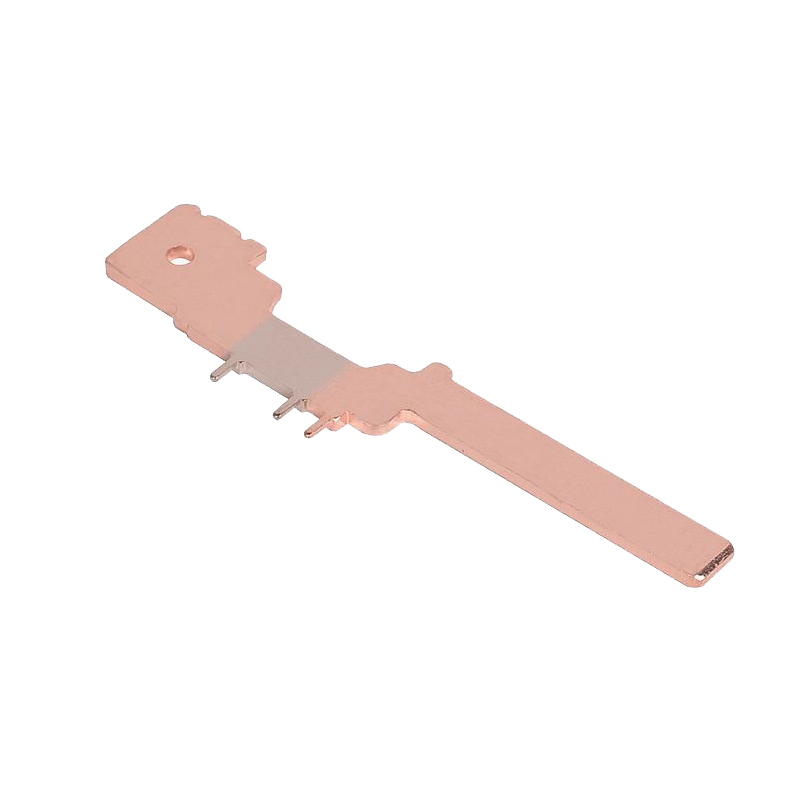

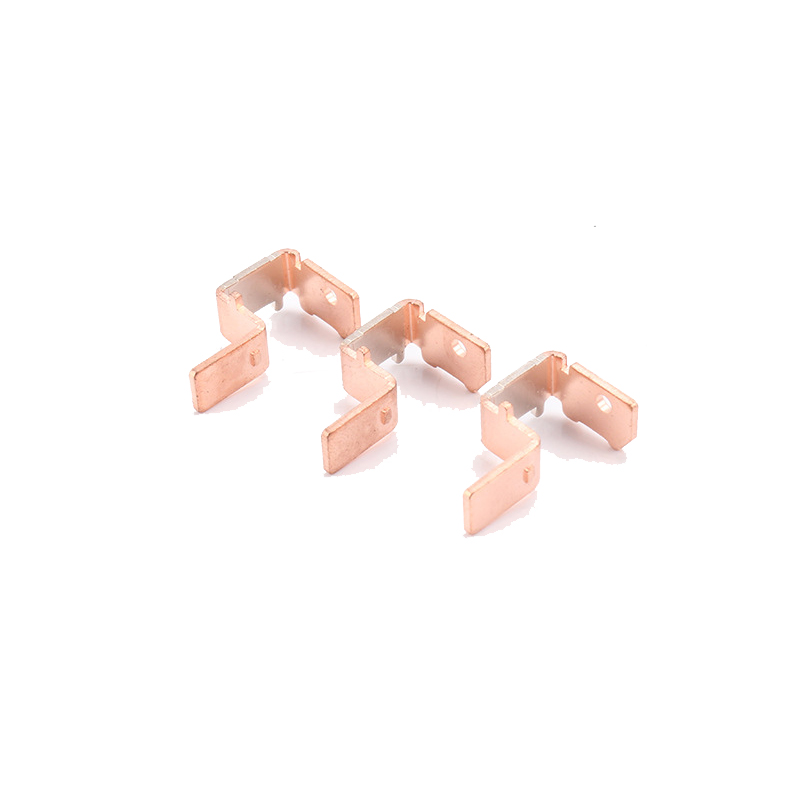

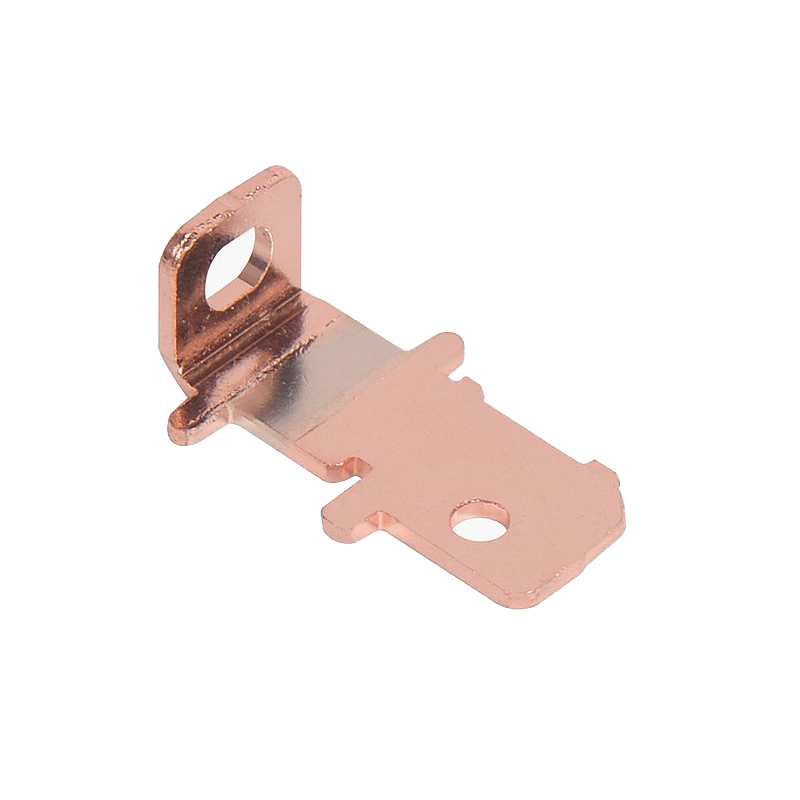

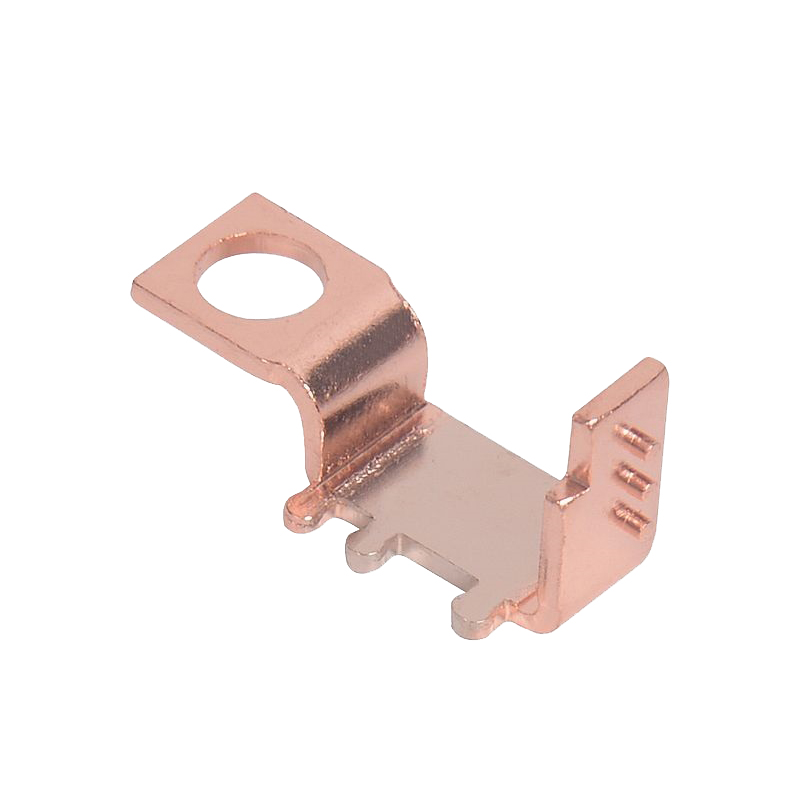

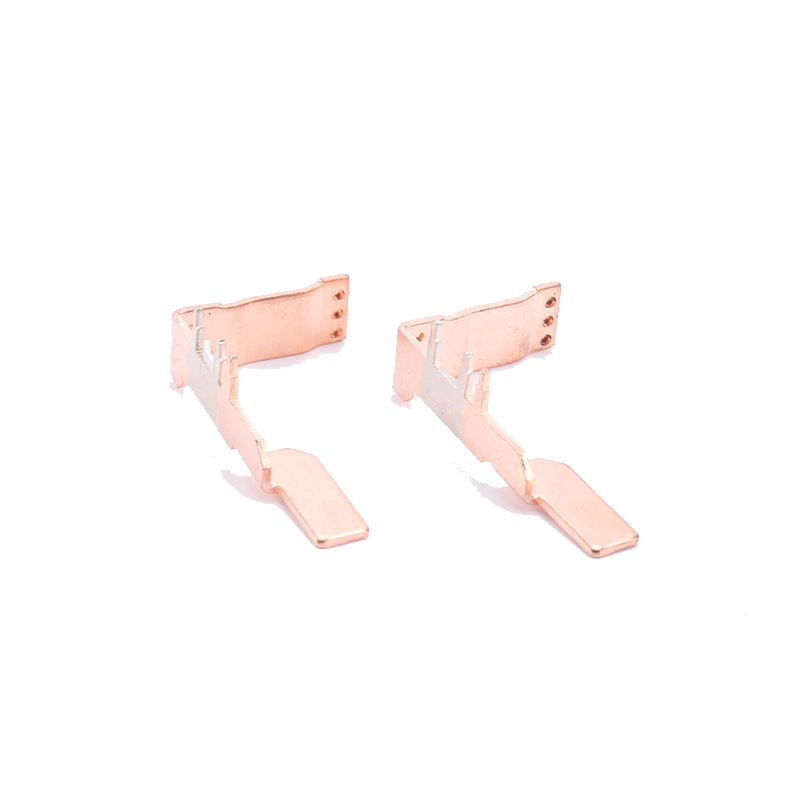

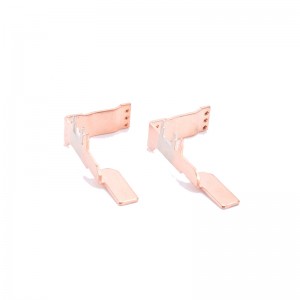

EBW Manganese Copper Shunt Structural Parts of Relay Description

P/N: MLSP-2174


Product Detail

Product Tags

Description

Product Name EBW Manganese Copper Shunt Structural Parts of Relay
P/N P/N: MLSP-2174
Material Copper, manganese copper
Resistance value 50~2000μΩ
Thickness 1.0,1.0-1.2mm ,1.2-1.5mm ,1.5-2.0mm,2.0-2.5mm -2.5mm
Resistance tolerance ﹢5%
Error 2-5%
Operating temperature -45℃~+170℃
Current 25-400A
Process Electron beam welding, brazing
Surface treatment Passivized by pickling
Temperature coefficient resistance TCR<50PP M/K
Loading Ability MAX 500A
Mounting Type SMD, Screw,Welding,and so on
OEM/ODM Accept
Packing Polybag +carton +pallet
Application Instrument and meter, telecommunication equipment, electric vehicle, charging station, DC/AC power system, and so on.

Features

Manganin, E-beam welding
High precision, high strength, reliable and stable
Whole part for resistance measurment, low heat dissipation, low temperature
Low resistance value
