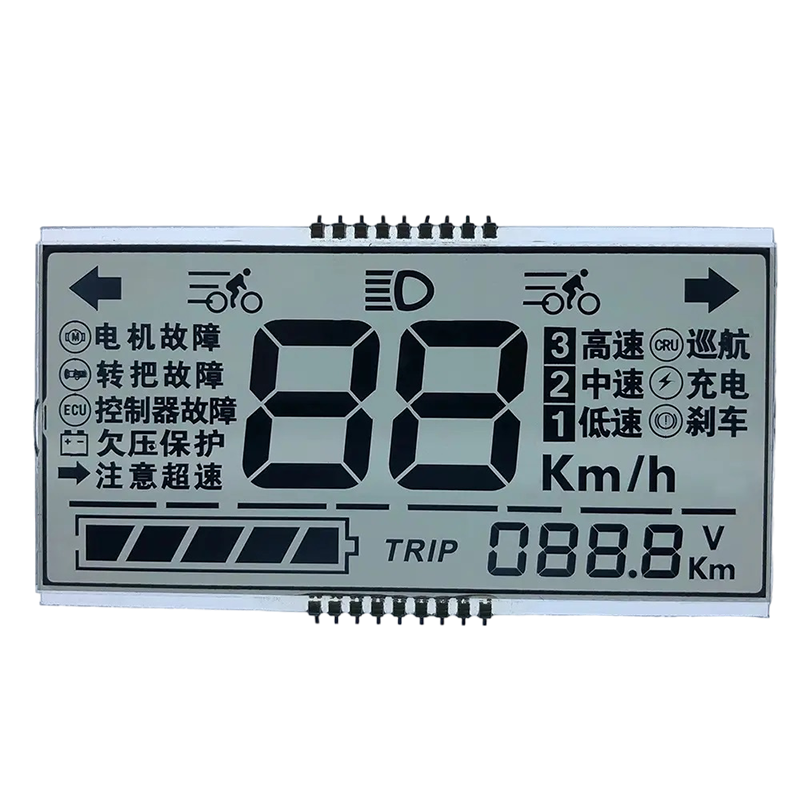

Segment LCD Display TN/HTN/FSTN for Smart Meter
Description
|
Product Name |
Segment LCD Display for KWH Meter/Smart |
|
P/N |
MLSG-2162 |
|
LCD Type |
TN, HTN, STN, FSTN, VATN |
|
Background Color |
Blue, yellow, green, grey, white, red |
|
Display Mode |
Positive, Negative |
|
Polarizer Mode |
Transmissive, reflective, transflective |
|
Viewing Direction |
6 o'clock, 12 o'clock or customize |
|
Polarizer Type |
General durability, medium durability, high durability |
|
Glass Thickness |
0.55mm,0.7mm,1.1mm |
|
Driver Method |
1/1duty---1/8duty, 1/1bias-1/3bias |
|
Operating Voltage |
Above 2.8V, 64Hz |
|
Operating Temperature |
-35℃~+80℃ |
|
Storage Temperature |
-40℃~+90℃ |
|

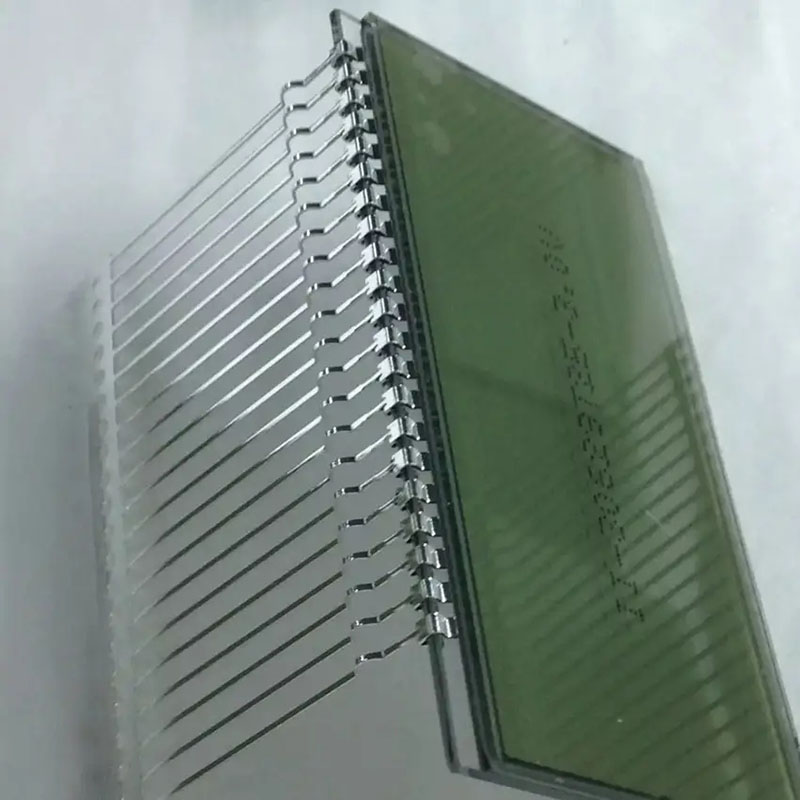

Connector |
Metal Pin, Heat seal, FPC, Zebra, FFC; COG +Pin or COT+FPC |
|
Application |
Meters and test instrument, Telecommunication, Auto- electronics, home appliances, medical equipment etc. |
Features
High contrast ratio, clear in sunlight
Easy fixing and simple assembly
Easy to write drivers, quick in response
Low cost, low power consumption, long life span
High accuracy of image display
