50A/80A PCB Weld Terminal Circuit board holder

P/N: MLST-5436


Product Detail

Product Tags

Description

Product Name 50A/80A PCB Weld Terminal Circuit board holder
P/N ML-5436
Material H65 brass/T2 red copper
Electric current 50A/80A
Material thickness 1.2mm
Surface treatment High temperature nickel bright tin
Thread M5
Pin pitch 5mm*10.1mm
Substrate height 8.5mm
Size 11.2mm*12.5mm*9.2mm
OEM/ODM Accept
Packing Polybag +carton +pallet
Application Electronics, elevators, telecommunications, household lighting, electrical, etc.

Features

Reinforcement of threads, not easy to slip, more solid, high current resistance.

Ensure solid electrical connection, safety, beauty and improve the convenience of electrical installation and maintenance.

Suitable for Security, Industrial, Lighting, Instrument, Metering,

Rail transportation, Elevators, Machinery and Equipment plants, etc.

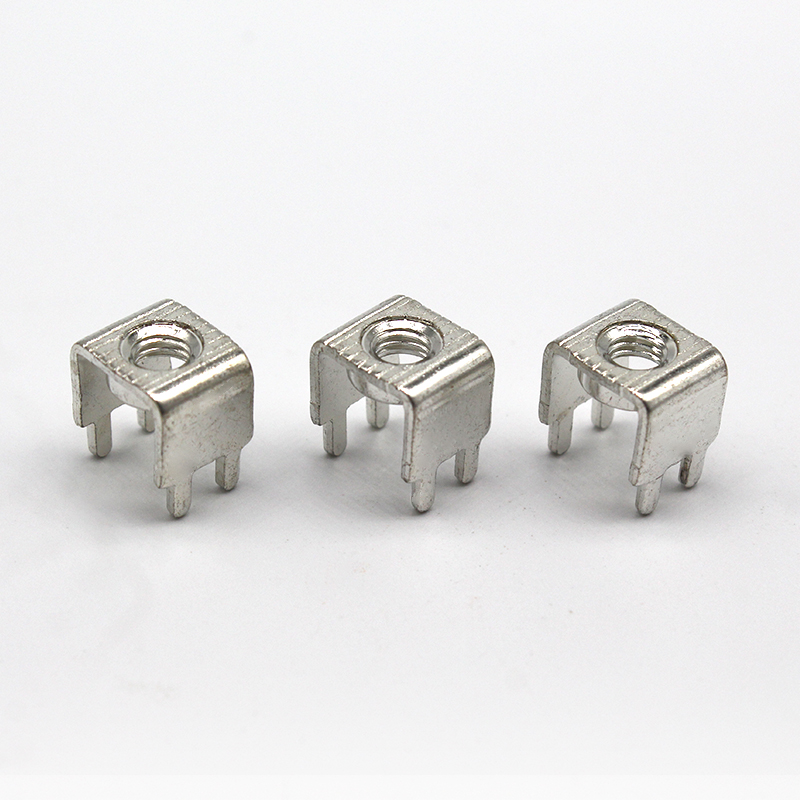

model numberYB-5436-3

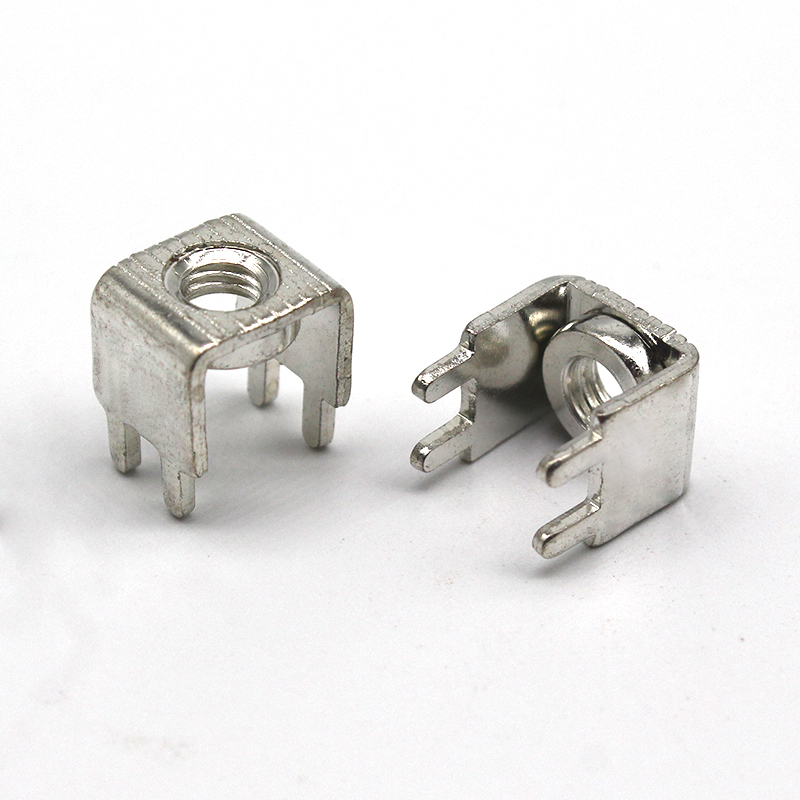

model numberYB-5436-2 (2)
model numberYB-5436-1(1)

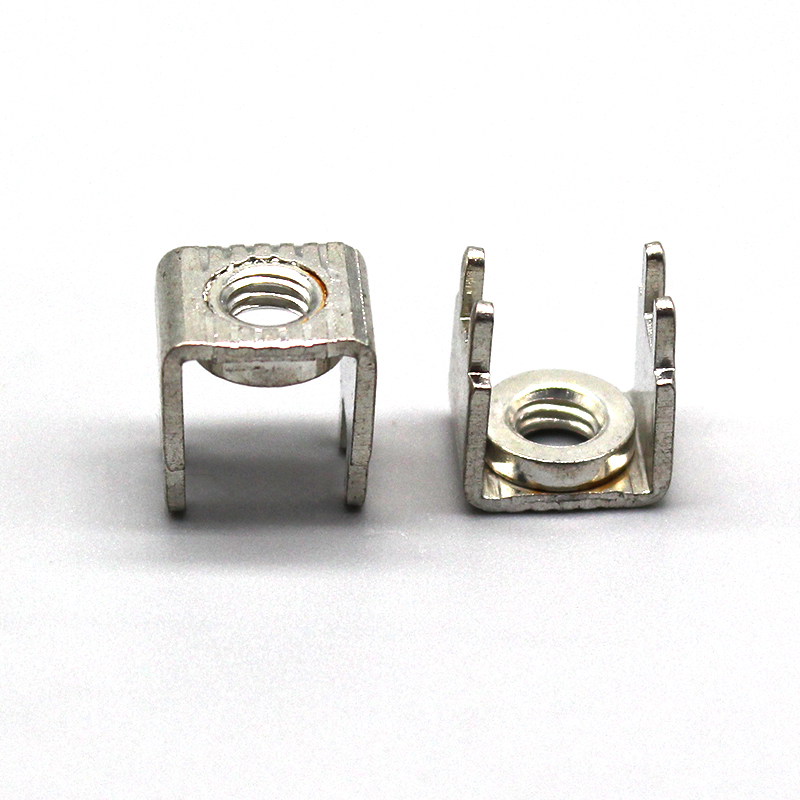

model numberYB-5436-4

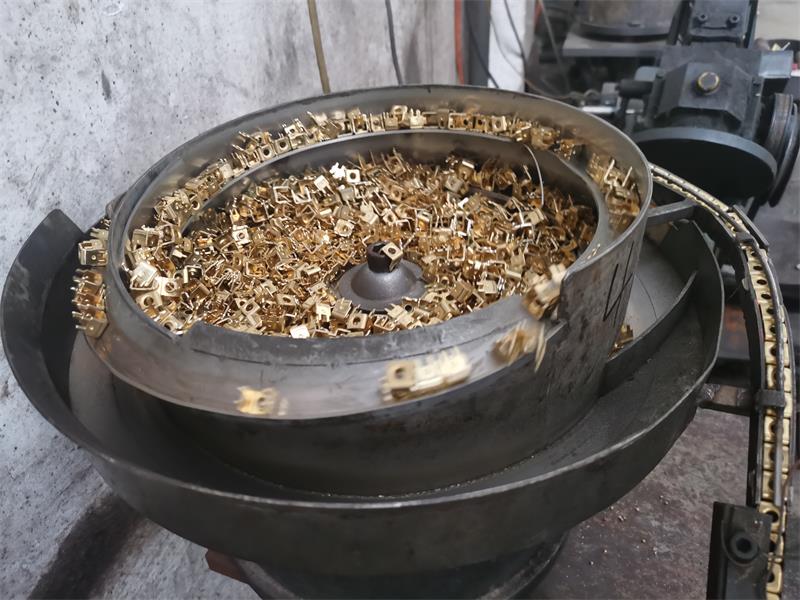

model numberYB-5436-6

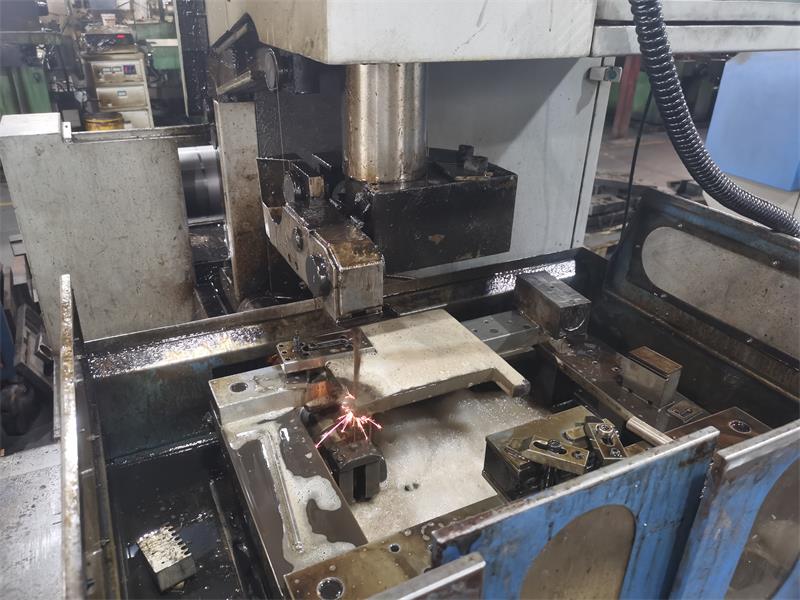

model numberYB-5436-7

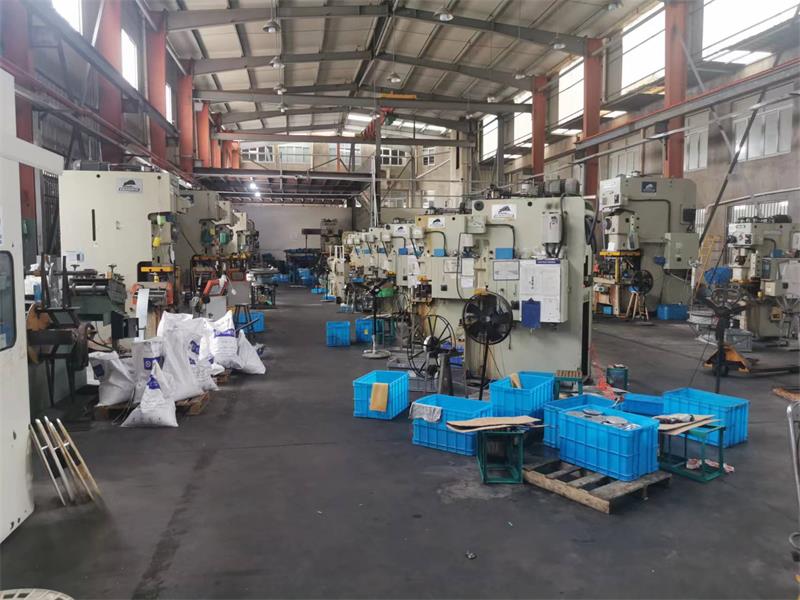

model numberYB-5436-8

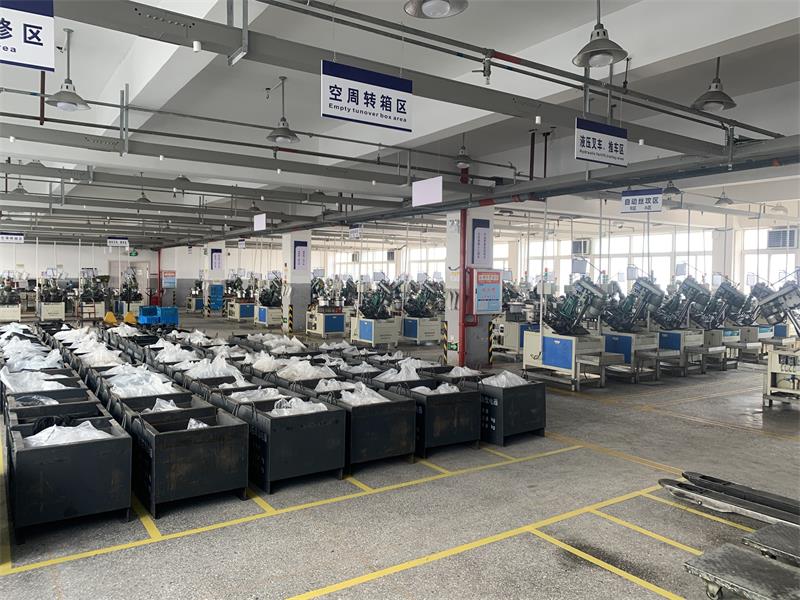

model numberYB-5436-9

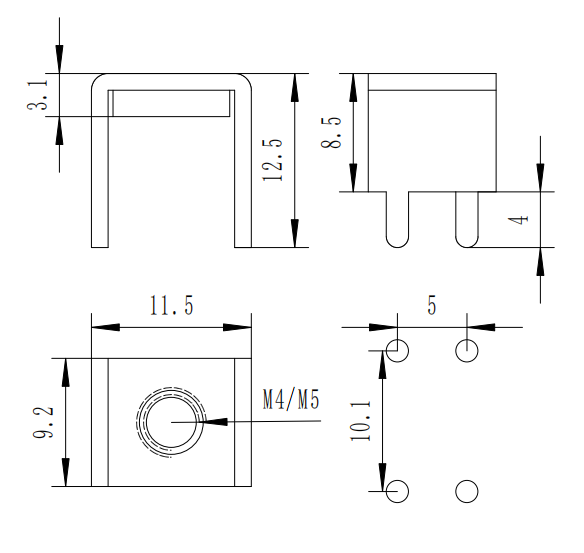

model numberYB-5436-5
