Welcome, astute readers, to another insightful exploration from the vanguard of magnetic component innovation at Malio Tech. Today, we embark on a fascinating journey into the realm of material science, specifically focusing on a pivotal element in modern electronics: the amorphous core. Often lurking beneath the surface of sophisticated power supplies, inductors, and transformers, these cores possess unique characteristics that bestow distinct advantages upon the devices they empower. Prepare to delve into the intricacies of their structure, properties, and the compelling reasons why Malio Tech champions their utilization in cutting-edge applications.
At its fundamental essence, an amorphous core is a magnetic core crafted from a metallic alloy that lacks a long-range crystalline structure. Unlike their conventional counterparts, such as ferrite cores, where atoms are arranged in a highly ordered, repeating lattice, the atoms in an amorphous alloy are frozen in a disordered, almost liquid-like state. This atomic disarray, achieved through rapid solidification of the molten alloy, is the very genesis of their remarkable electromagnetic attributes. Imagine the stark contrast between a meticulously organized regiment of soldiers and a dynamic, free-flowing crowd – this analogy provides a rudimentary visualization of the structural divergence between crystalline and amorphous materials.
This non-crystalline structure has profound implications for the magnetic behavior of the core. One of the most significant benefits stemming from this atomic anarchy is a substantial reduction in core losses, particularly eddy current losses. In crystalline materials, changing magnetic fields induce circulating currents within the core material itself. These eddy currents, akin to miniature whirlpools of electrons, dissipate energy as heat, leading to efficiency degradation. The disordered atomic structure of amorphous alloys significantly impedes the formation and flow of these eddy currents. The absence of grain boundaries, which act as conductive pathways in crystalline structures, disrupts the macroscopic current loops, thereby minimizing energy dissipation. This inherent characteristic makes amorphous cores particularly adept in high-frequency applications where rapidly changing magnetic fields are prevalent.

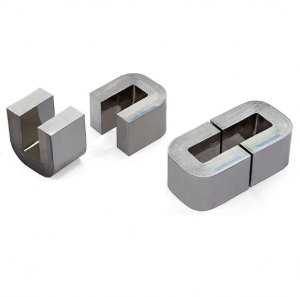

Furthermore, amorphous cores often exhibit higher permeability compared to some traditional materials. Permeability, in essence, is a material's ability to support the formation of magnetic fields within itself. A higher permeability allows for the creation of stronger magnetic fields with fewer turns of wire, leading to smaller and lighter magnetic components. This is a crucial advantage in today's miniaturized electronic devices where space and weight are at a premium. Malio Tech recognizes the significance of this attribute, leveraging it in products like our Fe-based Amorphous C-Cores to deliver high-performance solutions in compact form factors. These C-cores, with their superior magnetic flux carrying capacity, exemplify the practical benefits of amorphous technology in demanding applications.
Amorphous vs. Ferrite: Dissecting the Dichotomy
A common query that arises in the realm of magnetic cores is the distinction between amorphous and ferrite cores. While both serve the fundamental purpose of concentrating magnetic flux, their material composition and resulting properties diverge significantly. Ferrite cores are ceramic compounds composed primarily of iron oxide and other metallic elements like manganese, zinc, or nickel. They are manufactured through sintering, a process involving high-temperature consolidation of powdered materials. This process inherently results in a polycrystalline structure with distinct grain boundaries.
The key differentiating factors lie in their electrical resistivity and saturation flux density. Ferrites typically possess significantly higher electrical resistivity compared to amorphous metals. This high resistivity effectively suppresses eddy currents, making them suitable for medium to high-frequency applications. However, ferrite cores generally exhibit lower saturation flux density compared to amorphous alloys. Saturation flux density represents the maximum magnetic flux a core can carry before its permeability drastically decreases. Amorphous cores, with their metallic composition, generally offer a higher saturation flux density, allowing them to handle larger amounts of magnetic energy before saturation occurs.

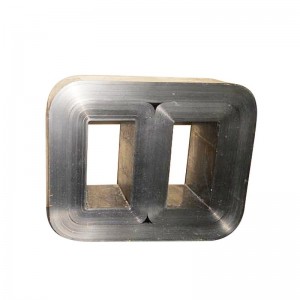

Consider the analogy of water flowing through a landscape. A landscape with numerous small obstacles (grain boundaries in ferrite) will impede the flow, representing high resistivity and low eddy currents. A smoother landscape (amorphous structure) allows for easier flow but might have a lower overall capacity (saturation flux density). However, advanced amorphous alloys, like those utilized by Malio Tech, often strike a compelling balance, offering both reduced losses and respectable saturation characteristics. Our Fe-based Amorphous Three-Phase E-Cores showcase this synergy, providing efficient and robust solutions for demanding three-phase power applications.
Furthermore, the manufacturing processes differ considerably. The rapid solidification technique employed for amorphous metals necessitates specialized equipment and precise control to achieve the desired non-crystalline structure. Conversely, the sintering process for ferrites is a more established and often less complex manufacturing route. This difference in manufacturing complexity can sometimes influence the cost and availability of the respective core types.
In essence, the choice between an amorphous and a ferrite core hinges on the specific application requirements. For applications demanding exceptionally low core losses at higher frequencies and the ability to handle significant magnetic flux, amorphous cores often emerge as the superior choice. Conversely, for applications where extremely high resistivity is paramount and saturation flux density requirements are less stringent, ferrite cores may offer a more cost-effective solution. Malio Tech's diverse portfolio, including our Fe-based Amorphous Bars & Block Cores, reflects our commitment to providing optimal core solutions tailored to a wide spectrum of engineering challenges. These bar and block cores, with their adaptable geometries, further underscore the versatility of amorphous materials in diverse electromagnetic designs.
The Multifaceted Advantages of Amorphous Cores
Beyond the fundamental reduction in core losses and enhanced permeability, amorphous cores bestow a plethora of additional benefits that solidify their position as a vanguard material in modern magnetics. Their superior temperature stability often surpasses that of traditional materials, allowing for reliable operation across a wider thermal spectrum. This robustness is crucial in demanding environments where temperature fluctuations are unavoidable.
Moreover, the isotropic nature of their disordered atomic structure can lead to improved consistency in magnetic properties across different orientations within the core. This uniformity simplifies design considerations and enhances the predictability of component performance. Furthermore, certain amorphous alloys exhibit excellent corrosion resistance, extending the lifespan and reliability of the magnetic components in challenging operating conditions.
The lower magnetostriction exhibited by some amorphous alloys is another noteworthy advantage. Magnetostriction is the property of a ferromagnetic material that causes it to change its dimensions during the process of magnetization. Lower magnetostriction translates to reduced audible noise and mechanical vibrations in applications such as transformers and inductors, contributing to quieter and more reliable electronic systems.
Malio Tech's unwavering dedication to innovation drives us to continually explore and harness these multifaceted advantages of amorphous cores. Our product offerings are a testament to our commitment to providing solutions that not only meet but exceed the evolving demands of the electronics industry. The intricate design and meticulous engineering behind each of our amorphous core products are geared towards maximizing efficiency, minimizing size and weight, and ensuring long-term reliability.
Applications Spanning the Technological Landscape
The unique attributes of amorphous cores have paved the way for their widespread adoption across a diverse range of applications. In power electronics, they are instrumental in high-frequency transformers and inductors, contributing to higher efficiency and reduced size in power supplies for everything from consumer electronics to industrial equipment. Their low core losses are particularly advantageous in solar inverters and electric vehicle chargers, where energy efficiency is paramount.
In the realm of telecommunications, amorphous cores find application in high-performance transformers and filters, ensuring signal integrity and minimizing energy dissipation in critical infrastructure. Their excellent high-frequency characteristics make them ideal for sophisticated communication systems.
Furthermore, amorphous cores are increasingly being utilized in medical devices, where compact size, low noise operation, and high efficiency are critical requirements. From MRI machines to portable diagnostic equipment, the benefits of amorphous cores contribute to advancements in healthcare technology.
The versatility of amorphous materials extends to industrial applications, including high-frequency welding machines and specialized power supplies. Their ability to handle high power levels with minimal losses makes them a compelling choice for demanding industrial environments. Malio Tech's range of amorphous core products is designed to cater to this broad spectrum of applications, providing tailored solutions that optimize performance and efficiency.
The Future Trajectory of Amorphous Core Technology
The field of amorphous materials is dynamic and continuously evolving. Ongoing research and development efforts are focused on creating new amorphous alloys with even lower core losses, higher saturation flux densities, and improved thermal stability. Advancements in manufacturing techniques are also paving the way for more cost-effective production and wider availability of these high-performance cores.
At Malio Tech, we remain at the forefront of these advancements, actively exploring novel amorphous alloys and refining our manufacturing processes to deliver cutting-edge magnetic components. We recognize the transformative potential of amorphous core technology and are committed to pushing the boundaries of what is achievable in magnetic design.
In conclusion, the amorphous core, with its unique non-crystalline structure, represents a significant leap forward in magnetic material science. Its inherent advantages, including reduced core losses, enhanced permeability, and superior temperature stability, make it an indispensable component in a wide array of modern electronic applications. Malio Tech stands as a beacon of innovation in this field, offering a comprehensive portfolio of high-performance amorphous core solutions, exemplified by our Fe-based Amorphous C-Cores (MLAC-2133), Fe-based Amorphous Three-Phase E-Cores (MLAE-2143), and Fe-based Amorphous Bars & Block Cores. As technology continues its relentless march forward, the enigmatic amorphous core will undoubtedly play an increasingly pivotal role in shaping the future of electronics. We invite you to explore our website and discover how Malio Tech can empower your next innovation with the exceptional capabilities of amorphous magnetic technology.
