Unlocking Electrical Insights: The Ingenuity of Split Core Transformers

A transformer core is typically an intricate assembly composed of two principal components: limbs (also known as core columns) and yokes. The limbs are the vertical sections around which the primary and secondary windings are coiled. The yokes, conversely, are the horizontal segments that connect these limbs, forming a contiguous, closed magnetic pathway. This architectural synergy ensures that the magnetic flux, once generated, is meticulously guided through the windings, maximizing inductive coupling and energy transfer.

Modern transformer cores are predominantly fabricated from specialized ferromagnetic materials like silicon steel, particularly cold-rolled grain-oriented (CRGO) silicon steel, renowned for its superior magnetic permeability. MalioTech also leverages

nanocrystalline core material for its split core transformers, offering exceptionally high permeability for enhanced accuracy. The meticulous selection of advanced core materials and precise manufacturing techniques is a critical engineering decision that profoundly dictates a transformer's operational efficiency, measurement accuracy, and thermal stability.

To mitigate energy losses, cores are not solid blocks but are constructed from thin, insulated sheets or laminations. This laminated structure is critical in combating

eddy currents – localized circulating currents induced within the core itself by the changing magnetic flux, which generate unwanted heat and power loss. By segmenting the core into thin, electrically isolated sheets, the pathways for these eddy currents are constricted, significantly reducing their magnitude. Furthermore, the choice of core material and its processing (e.g., annealing) helps minimize

hysteresis loss, another form of energy dissipation stemming from the energy required to repeatedly magnetize and demagnetize the core material. Companies that invest in superior core technologies, like nanocrystalline materials, are implicitly signaling a commitment to a higher standard of product quality and precision, which can be a significant competitive advantage in demanding applications where even marginal improvements in performance translate into substantial operational benefits.



Introducing the Split Core Transformer: A Paradigm of Practicality

Unlike their monolithic counterparts, split core current transformers are characterized by a unique, segmented core design that can be opened or "split". This innovative architecture typically incorporates a hinge or a removable leg, allowing the core to encircle a conductor without requiring its disconnection.

Traditional solid core CTs possess an uninterrupted, closed magnetic core, necessitating that the primary conductor be threaded through a central aperture during installation. This fundamental difference in construction dictates vastly different installation procedures and application scenarios. While solid core CTs are generally lauded for their superior accuracy and ruggedness due to their unbroken magnetic path, split core CTs prioritize installation flexibility and convenience.

The very essence of the split core design is its non-invasiveness. By simply opening the core, positioning it around the live conductor, and then securely closing it, these transformers eliminate the need for costly and time-consuming power shutdowns or extensive rewiring. This makes them an exceptionally pragmatic solution for existing infrastructure and dynamic monitoring requirements. However, this convenience often comes with a subtle compromise in absolute measurement precision compared to their solid core counterparts. The hinged design inherently introduces minute air gaps in the magnetic circuit , which can slightly disrupt the magnetic path and lead to marginal reductions in accuracy. Engineers and system designers must meticulously weigh this trade-off against the specific accuracy requirements of their application, recognizing that the use of high-quality split core CTs and advanced core materials can substantially mitigate this accuracy deficit, expanding their viable application range.



Installation Revolution: The Non-Invasive Advantage

The hallmark of split core current transformers is their unparalleled ease of installation. This attribute is particularly pronounced in

retrofit projects, where modifying existing electrical infrastructure can be prohibitively complex and expensive. The hinged or separable core design allows technicians to simply clamp the CT around a live conductor, bypassing the need for system shutdowns or laborious disconnections. This direct-on-PCB mounting capability further streamlines integration in certain applications.

Beyond mere convenience, the non-invasive nature of split core CTs translates into substantial safety enhancements. By obviating the need to interact directly with high-voltage lines or de-energize circuits, the risk of electrical shock or arc flash incidents for installation personnel is dramatically reduced. This inherent safety factor makes them a preferred choice in environments where minimizing downtime and maintaining continuous operation are paramount. The repeated emphasis on "no need to disconnect," "reduce downtime," and "non-intrusive" points to a core value proposition that extends far beyond simple installation ease. It fundamentally highlights the ability to maintain

operational continuity. For critical infrastructure such as data centers, manufacturing plants, or utility grids, any period of downtime, no matter how brief, can incur substantial financial losses and operational disruptions. The primary economic and operational advantage of split core CTs lies precisely in their capacity to enable current monitoring without disrupting ongoing operations. This makes them an indispensable tool for industries where continuous uptime is absolutely critical, allowing for proactive maintenance, granular energy optimization, and rapid fault detection without incurring the significant financial penalties and logistical complexities typically associated with service interruptions.

Split core CTs are engineered with a remarkable adaptability, available in a diverse array of sizes to accommodate varying conductor diameters and busbar configurations. This versatility ensures that a suitable split core solution exists for a broad spectrum of electrical systems, from compact panels to large industrial installations. MalioTech's offerings, for instance, feature wide inner windows to accommodate large cables or bus-bars.



Table 1: Comparison: Split Core vs. Solid Core Current Transformers

Characteristic	Split Core Current Transformer	Solid Core Current Transformer
Design	Hinged or openable core	Closed, toroidal core
Installation	Non-invasive (clamps around conductor)	Invasive (conductor must be threaded through)
Downtime Required	Minimal to none (can be installed on live systems)	Significant (requires circuit shutdown)
Typical Accuracy	Slightly lower (but improving with advanced designs/materials)	Generally higher
Ruggedness/Durability	Moderate (due to mechanical hinge/latch)	High (due to uninterrupted core)
Cost (General)	Generally higher initially (for the CT itself)	Generally lower initially
Ideal Applications	Retrofit projects, temporary monitoring, live systems, existing infrastructure	New installations, permanent monitoring, high-precision applications



Performance Metrics and Considerations: Accuracy, Burden, and Beyond

To effectively deploy split core transformers, understanding their key performance parameters is crucial. The precision of a current transformer is quantified by its accuracy class, typically expressed as a percentage of error (e.g., 0.1, 0.2, 0.5, 1.0). A lower percentage indicates higher fidelity in current measurement. MalioTech's split core CTs, for example, boast accuracy ratings of 0.1, 0.2, 0.5 ±1%. CTs are also defined by their

current ratio, which specifies the relationship between the primary current and the scaled-down secondary current (e.g., 100:5A, 1000:333mV). This ratio is crucial for interpreting the secondary signal to derive the actual primary current. Secondary outputs can be either a current (e.g., 5A, 1A, 500mA) or a voltage (e.g., 333mV, 0.5V, 1V). Voltage output CTs, often incorporating an internal shunt resistor, offer a safety advantage by avoiding dangerous open-circuit voltages.

A critical concept in CT performance is burden. Burden refers to the total impedance connected to the secondary winding of a current transformer. This encompasses the impedance of the measuring instrument, the resistance of the connecting cables, and the CT's own internal secondary impedance. It is typically expressed in Volt-Amperes (VA) or Ohms. The burden is a critical determinant of CT accuracy. A CT is designed to operate optimally within a specified burden range; exceeding this range can lead to significant measurement errors, saturation of the magnetic core, and even potential damage to the CT or connected instruments. Conversely, a burden that is too low can also cause over-excitation and distortion. Proper burden matching is paramount for precise and reliable operation.

The inherent "split" in split core CTs, while facilitating installation, introduces minute air gaps in the magnetic core. These discontinuities can slightly disrupt the magnetic path, potentially leading to a marginal reduction in accuracy compared to solid core designs. This is an unavoidable consequence of their primary design advantage (ease of installation), necessitating the integration of compensatory design features to maintain performance. To counteract this, high-quality split core CTs are engineered with

precision clamps and robust latching mechanisms that ensure optimal alignment and minimal air gaps when closed. Regular cleaning of the core's end face is also advised to maintain a good closed state and prevent accuracy degradation. The use of advanced core materials like nanocrystalline further helps to compensate for these effects by providing higher overall permeability. The real-world performance of split core CTs is not solely dictated by their fundamental "split" design but is profoundly influenced by the quality of their engineering and manufacturing. Manufacturers who invest in superior materials and meticulous mechanical design (e.g., durable gate mechanisms ) are better equipped to deliver high-accuracy split core CTs that effectively minimize the inherent trade-offs. This expands their viable application range to more demanding, precision-critical scenarios where both non-invasive installation and high measurement fidelity are essential.



Versatile Applications Across Modern Industries

The inherent flexibility and operational advantages of split core current transformers have cemented their indispensable role across a vast spectrum of modern industrial and commercial applications.

Energy Management and Sub-metering: These CTs are foundational for granular energy monitoring, enabling businesses and homeowners to meticulously track consumption, identify inefficiencies, and optimize energy costs. They are crucial for tenant billing software and energy analysis.

Building Automation Systems (BAS) and HVAC Monitoring: In smart buildings, split core CTs facilitate real-time current measurement in HVAC systems, lighting, and other utilities, supporting energy-efficient operation and compliance with green building standards.

Industrial Power Monitoring and Fault Detection: Within manufacturing and industrial environments, they provide critical data for analyzing electrical load performance, identifying imbalances, overloads, short circuits, or ground faults, thereby preventing equipment damage and minimizing costly downtime.

Renewable Energy Systems (Solar, Wind): For solar PV and wind power installations, split core CTs non-invasively monitor the current generated and fed into the grid, offering accurate performance data and seamless integration with existing systems.

Temporary Installations and Load Surveys: Their ease of installation and removal makes them ideal for transient setups, such as monitoring power usage at construction sites or during system maintenance, providing a reliable and flexible solution for short-term energy management needs.

Power Distribution Systems: In substations, switchgear, and electrical panels, they are instrumental in monitoring current flow to ensure the reliable operation of power distribution networks, providing data for load balancing and capacity management.

Many of these applications are inherently driven by digital data acquisition and processing. Split core CTs serve as the crucial analog front-end, providing the raw current measurement data that these sophisticated digital systems then interpret and act upon. This highlights a strong, almost symbiotic, relationship where the value and widespread adoption of the CT are significantly amplified by its seamless integration into broader digital ecosystems. The accelerating trend of digitalization across various sectors, particularly in energy management, automation, and smart grid initiatives, directly fuels the increasing demand for non-invasive, easily deployable current sensing solutions like split core CTs. Their ability to provide real-time, actionable data is fundamental to the efficacy and intelligence of these advanced digital platforms, positioning split core CTs as indispensable, foundational components in the ongoing digital transformation of electrical infrastructure.



MalioTech's Advanced Split Core Solutions

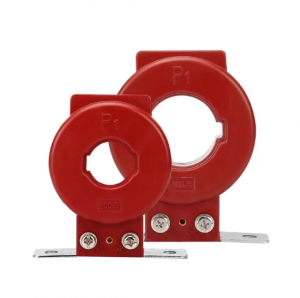

MalioTech, a vanguard in precision electrical components, offers a robust portfolio of current transformers engineered to meet the exacting demands of modern industries. Among these are the highly versatile split core current transformer(P/N: MLSC-2145) and the dependable lmaz series low voltage currunt transformer(P/N: MLBH-2148).

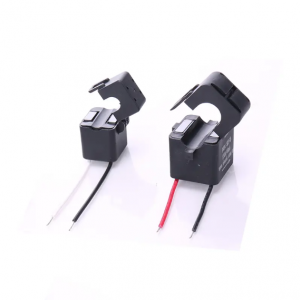

The MLSC-2145 Split Core Current Transformer is designed with a clamp-on core, which facilitates safer and easier installation by eliminating the need to cut off grid power. It boasts high accuracy, achieved through the strategic use of

nanocrystalline core material, which provides superior permeability compared to other materials, ensuring precise current measurement. This strategic choice of advanced materials positions MalioTech as a provider of high-fidelity current sensing solutions. This material selection directly addresses the inherent accuracy challenges of split core designs, offering a compelling value proposition for applications where both non-invasive installation and superior measurement precision are paramount. The product is also noted for its energy conservation and environmental protection aspects, indicating a significant market potential. Its wide inner window accommodates clamping of large cables or bus-bars, enhancing versatility. The MLSC-2145 is available with diverse primary current options, ranging from 50A up to 1000A, and offers various rated outputs (0.333V or 0-500mA) and turns ratios. Its robust outer case is made from Flame Retardant PBT, ensuring durability and safety.
