Manganin Shunt Purchasing Guide: Key Tips for Selecting a Reliable Manganin Shunt Supplier

With the increasing demand for accurate current measurement in smart meters, electric vehicles, energy storage systems, industrial equipment, and renewable energy applications, selecting the right current sensing component has become a critical decision for global buyers. A manganin shunt is widely recognized as a high-precision current measurement solution because of its excellent electrical stability, low temperature coefficient, and reliable long-term performance.

For procurement teams, purchasing a suitable manganin shunt is not only about comparing prices but also about evaluating product design, material quality, manufacturing capability, and supplier reliability. A professional purchasing process can help customers avoid performance issues and ensure that the selected shunt resistor meets the requirements of their specific applications.

This guide introduces important purchasing considerations, including product selection methods, supplier evaluation strategies, and customization options, helping buyers make better decisions when sourcing a manganin shunt for industrial and electronic applications.

Understanding the Basic Structure and Function of a Manganin Shunt

A manganin shunt is a precision resistor manufactured from manganin alloy, which mainly consists of copper, manganese, and nickel. It works by creating a small and accurately controlled voltage drop when electrical current passes through the shunt. The measurement system can then calculate the current value based on this voltage signal.

Compared with traditional resistance components, a manganin shunt offers superior stability because manganin material has a very low temperature coefficient of resistance. This characteristic allows the shunt to maintain measurement accuracy even when operating conditions change.

For applications requiring long-term accuracy, choosing a high-quality manganin shunt is essential for maintaining system performance.

Manganin Shunt Purchasing Guide: Important Factors Buyers Should Consider

When purchasing a manganin shunt, buyers should evaluate several technical factors instead of focusing only on unit price. The right product should match the electrical requirements, installation environment, and expected service life of the target application.

1. Confirm Current Rating and Application Requirements

The first step in selecting a manganin shunt is determining the required current range. Different applications have different operating conditions. Smart meters usually require high measurement accuracy and stable performance, while electric vehicles and energy storage systems require shunts with higher current capacity and stronger thermal management capability.

Before placing an order, buyers should clearly define the continuous operating current, overload current, and working environment. A properly selected current rating can prevent overheating problems and ensure reliable operation.

2. Select the Appropriate Resistance Value

The resistance value is one of the most important specifications of a manganin shunt. A lower resistance value can reduce power loss and heat generation, while a higher resistance value can provide a stronger measurement signal.

However, selecting resistance requires balancing accuracy, efficiency, and thermal performance. Buyers should communicate their circuit requirements with the supplier to determine the most suitable resistance value.

Experienced manganin shunt resistor manufacturers can provide customized resistance solutions according to different current ranges and measurement requirements.

3. Evaluate Material Quality and Manufacturing Process

The performance of a manganin shunt depends greatly on raw materials and manufacturing technology. High-quality manganin alloy ensures stable resistance characteristics, while precise manufacturing processes improve product consistency.

When selecting a supplier, buyers should pay attention to material control, production technology, and quality management systems. A professional manufacturer should have the capability to control resistance tolerance, dimensions, welding quality, and electrical performance throughout the production process.

A reliable supplier should provide comprehensive quality verification before mass production. Electrical performance testing, temperature testing, aging testing, and reliability inspection reports are important methods for confirming product stability and ensuring that the manganin shunt can operate effectively in different environments.

Comparison of Different Manganin Shunt Solutions

Different applications require different shunt structures. Understanding the differences between products helps buyers select the most suitable solution.

How to Select a PCB-Mounted EBW Shunt for Electronic Applications

A PCB-Mounted EBW Shunt is designed for applications where space efficiency and direct circuit integration are important. It is commonly used in smart meters, battery management systems, and compact electronic devices.

When purchasing a PCB-mounted solution, buyers should consider the compatibility between the shunt and the circuit board design. The mounting method, welding quality, resistance accuracy, and thermal performance all influence the final product reliability.

A professional supplier should be able to customize the structure according to customer requirements, including terminal design, dimensions, resistance parameters, and installation methods. This customization capability allows the PCB-Mounted EBW Shunt to integrate smoothly into different electronic systems.

Purchasing Tips for China OEM Copper Busbar Shunt Solutions

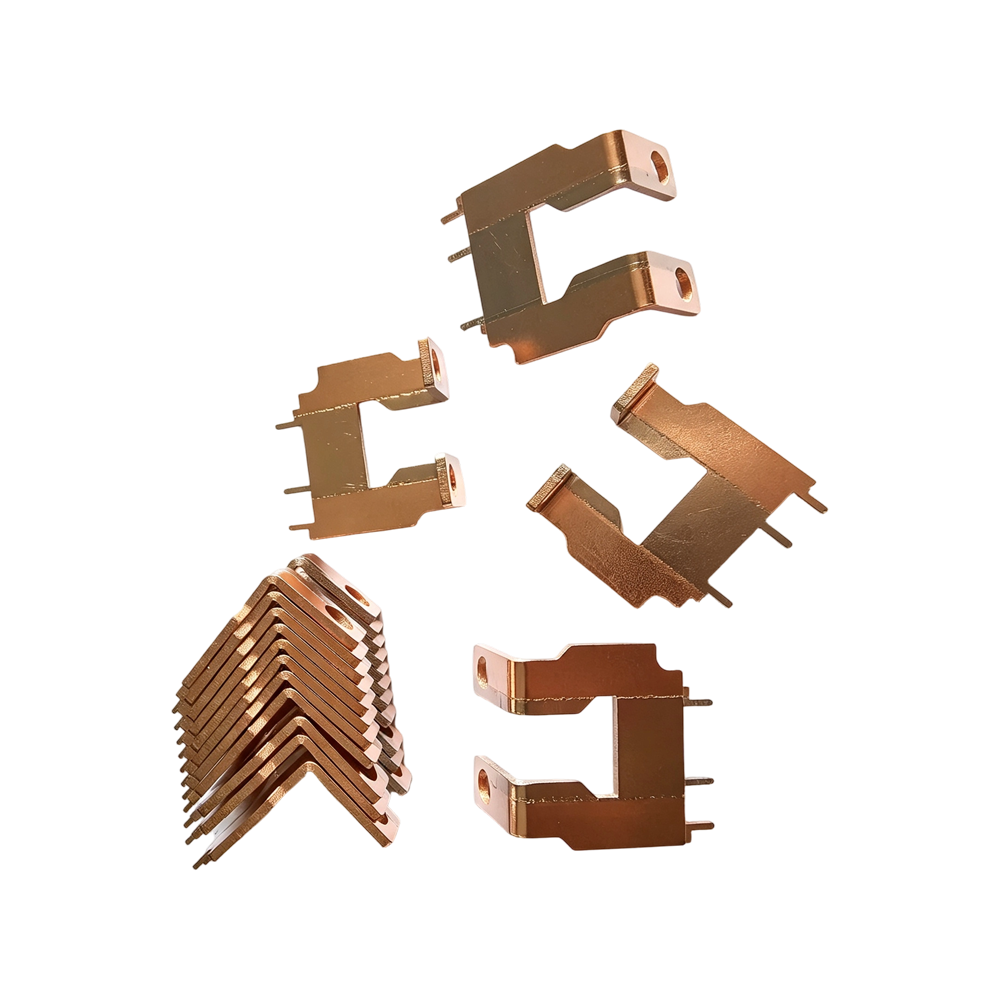

For high-current applications, a China OEM Copper Busbar Shunt is often selected because of its excellent conductivity and mechanical durability. These shunts are widely applied in electric vehicles, energy storage systems, and industrial power equipment.

When sourcing a China OEM Copper Busbar Shunt, buyers should evaluate the manufacturer’s production capability and customization experience. A qualified supplier should be able to provide complete manufacturing services, including material selection, precision processing, resistance calibration, surface treatment, and final inspection.

The table below shows key evaluation factors when choosing an OEM supplier:

Selecting an experienced OEM supplier can help customers achieve better product performance, shorter development cycles, and more reliable supply chains.

Manganin Copper Shunt Selection Guide for Advanced Applications

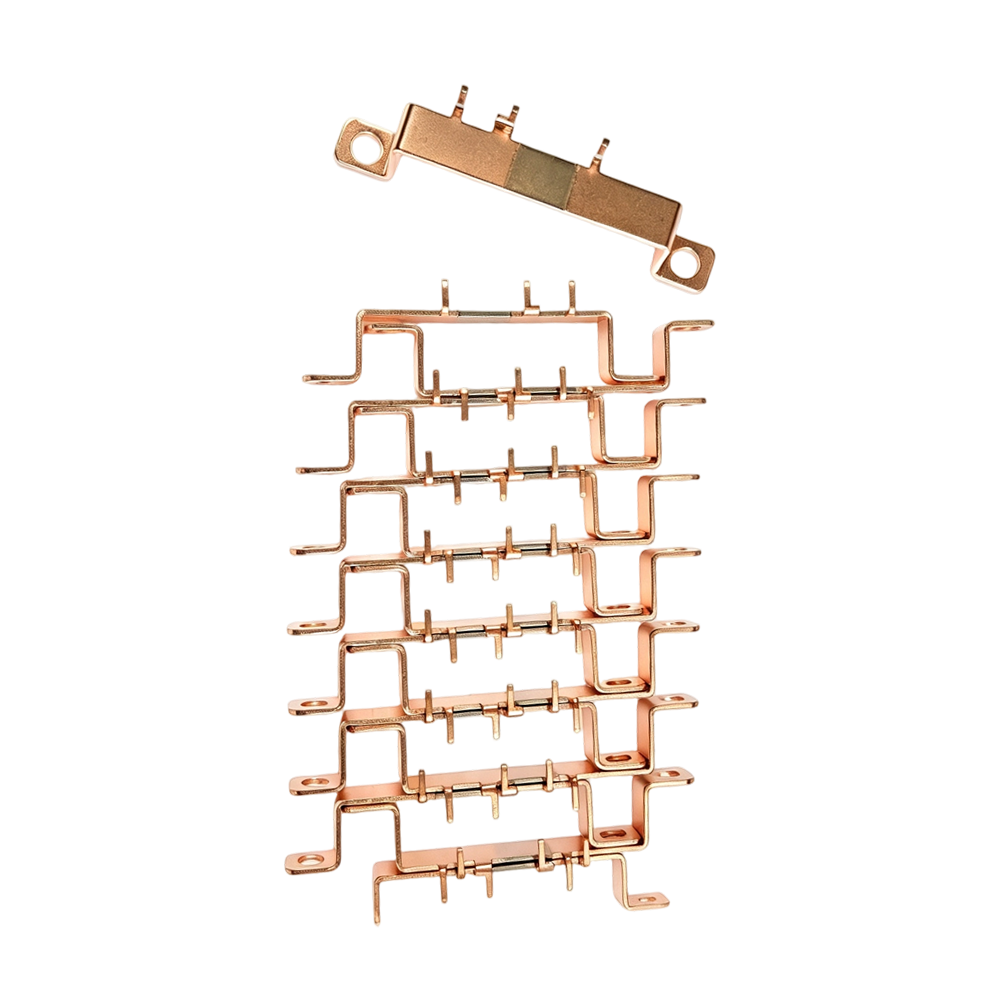

A Manganin Copper Shunt combines the excellent conductivity of copper with the precision characteristics of manganin alloy. This structure provides a reliable solution for applications requiring both high current carrying capability and accurate measurement.

For advanced applications such as EV power systems, solar energy equipment, and industrial monitoring systems, buyers should consider the following factors:

A professional supplier can help optimize the design of a manganin copper shunt according to electrical and mechanical requirements.

Common Mistakes When Purchasing a Manganin Shunt

Many buyers encounter problems because they focus only on purchase cost rather than overall product value. Choosing a low-cost product without verifying material quality and testing standards may result in unstable resistance performance, inaccurate measurements, and reduced service life.

Another common mistake is selecting a standard product without considering customization requirements. Different devices may require different dimensions, terminals, resistance values, or installation methods. Working with a supplier that provides customized solutions can reduce integration difficulties.

In addition, buyers should evaluate supplier experience before placing large orders. A manufacturer with professional design capabilities and mature production processes can provide more consistent quality and better technical support.

Shanghai Malio Industrial Ltd., headquartered in the dynamic economic hub of Shanghai, China, specializes in metering components and magnetic materials. Through years of dedicated development, Malio has evolved into an industrial chain provider integrating design, manufacturing, and trading operations.

With comprehensive solutions serving industries including power electricity and electronics, industrial equipment, precision instruments, telecommunication, wind power, solar energy, and EV applications, Malio provides reliable component solutions for global customers.

With professional design capabilities, advanced manufacturing experience, and customized production services, Shanghai Malio Industrial Ltd. supplies high-quality manganin shunt, PCB-Mounted EBW Shunt, China OEM Copper Busbar Shunt, and Manganin Copper Shunt products for various industrial applications.

Whether you need precision current measurement components for smart meters, electric vehicles, renewable energy systems, or industrial equipment, Malio can provide dependable solutions and professional support. Contact Shanghai Malio Industrial Ltd. today to discuss your project requirements and develop the ideal manganin shunt solution for your business.
