Magnetic Latching Relay: Performance Features and Applications Guide

With the rapid development of smart power systems, intelligent energy management, and industrial automation, reliable switching components have become increasingly important. A magnetic latching relay is an advanced electrical control component designed to maintain switching status without continuous power consumption, providing efficient and stable solutions for modern electrical systems.

Compared with traditional electromagnetic relays, a magnetic latching relay uses a magnetic holding structure to maintain the contact position after receiving a short pulse signal. This design significantly reduces energy consumption while improving operational reliability, making it widely used in smart meters, power control equipment, energy management systems, and industrial electrical applications.

What Is a Magnetic Latching Relay?

A magnetic latching relay is a type of latching relay that uses permanent magnetic force to maintain the switching position after the relay is activated.

Unlike conventional relays that require continuous coil power to keep the contacts energized, a magnetic latching relay only requires a short pulse current to switch between ON and OFF states. After switching, the internal magnetic structure keeps the contacts stable without additional power supply.

This operating principle provides several advantages:

Working Principle of Magnetic Latching Relay

The working principle of a magnetic latching relay is based on the interaction between electromagnetic force and permanent magnetic force.

When a control pulse is applied to the coil, the generated magnetic field changes the position of the internal armature. After the pulse disappears, the permanent magnet maintains the contact position.

To switch the relay back, another pulse with the opposite direction is applied, causing the contacts to return to the original position.

The switching process can be summarized as:

This design allows the magnetic latching relay to achieve efficient switching control with minimal energy consumption.

Main Performance Features of Magnetic Latching Relay

Low Power Consumption Design of Magnetic Latching Relay

One of the biggest advantages of a magnetic latching relay is its energy-saving performance.

Traditional relays require continuous power to maintain operation, while magnetic latching types only consume energy during switching. This feature makes them especially suitable for battery-powered equipment and energy-efficient electrical systems.

High Current Switching Capability of Magnetic Latching Relay

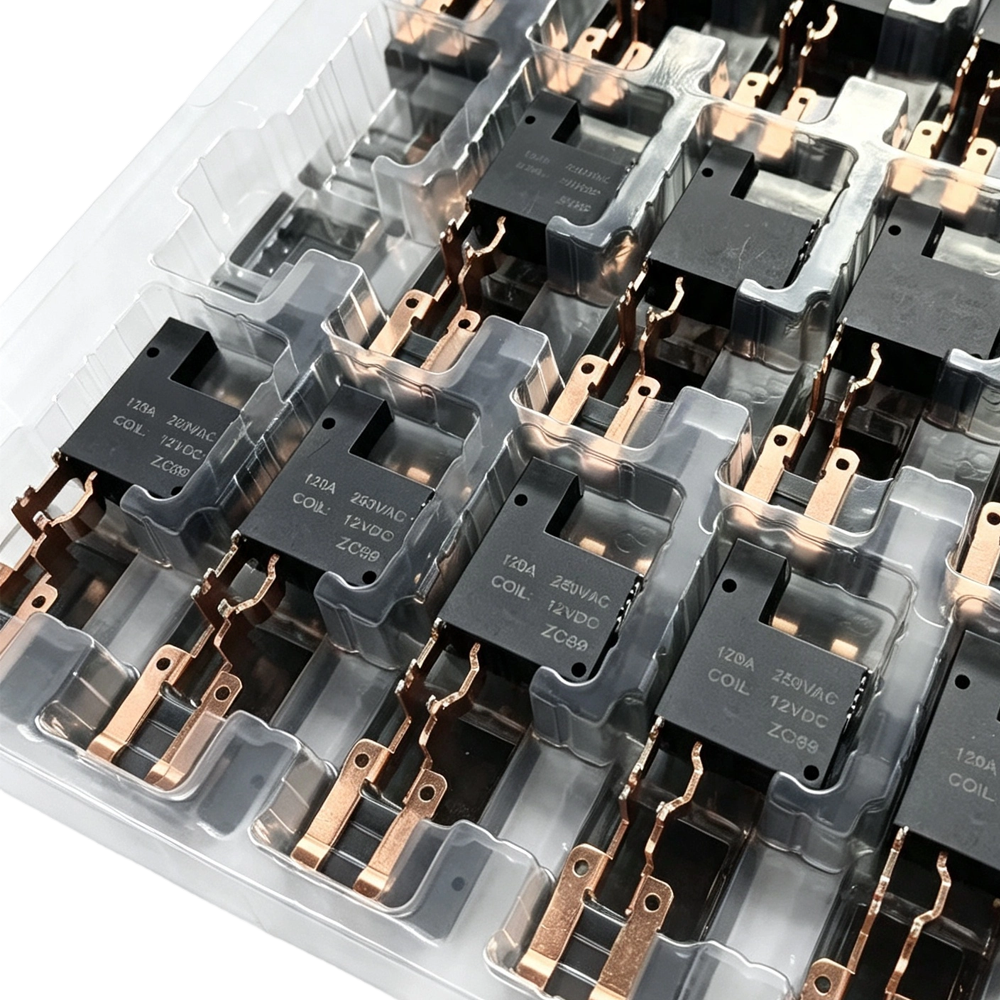

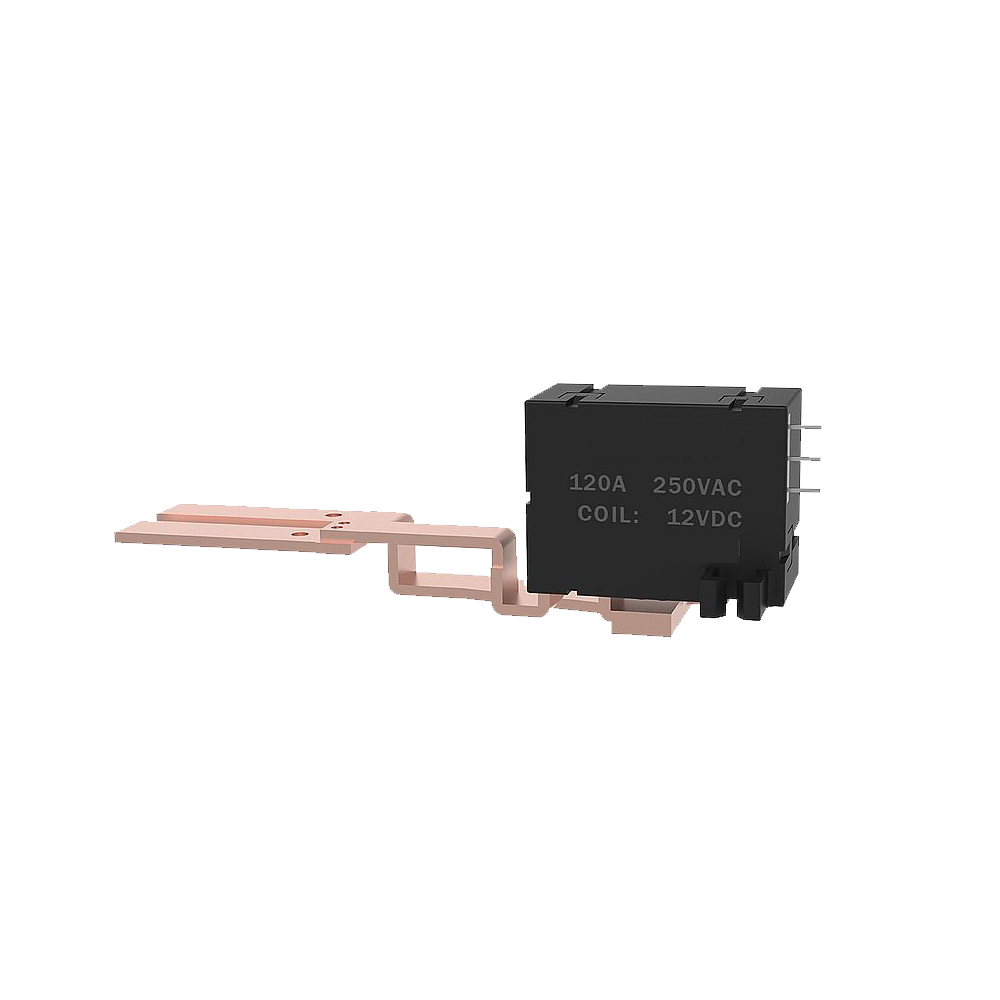

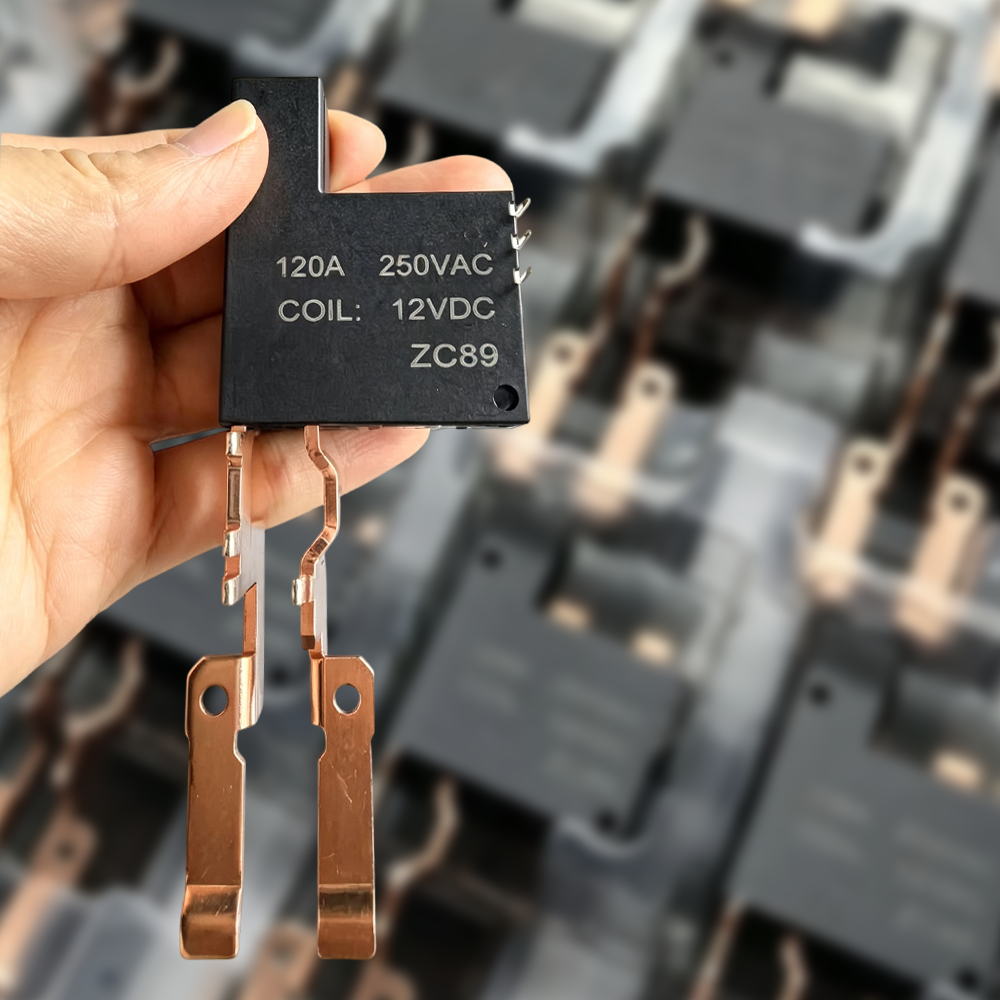

Modern electrical applications often require relays capable of handling high current loads. A 120A PCB relay is designed for high-current switching applications while maintaining compact installation characteristics.

The combination of high current capacity and PCB mounting design makes it suitable for equipment requiring reliable power control.

Long-Term Stability and Reliability of Magnetic Latching Relay

The magnetic holding mechanism reduces coil heating because continuous power is not required after switching.

A high-quality magnetic latching relay provides:

• Stable contact performance
• Reduced energy loss
• Improved thermal performance
• Extended service life

These characteristics make it suitable for applications requiring frequent switching and long operating periods.

Applications of Magnetic Latching Relay

Magnetic Latching Relay for Smart Meter Applications

One of the most common applications of a magnetic latching relay is in smart metering systems.

A latching relay for smart meter applications is mainly used for remote power connection and disconnection control. Through communication commands, the relay can control the power supply status without requiring continuous energy consumption.

Typical functions include:

Magnetic Latching Relay for Industrial Electrical Equipment

Industrial automation systems require reliable switching components for controlling motors, power supplies, and electrical loads.

The compact structure and stable performance of a magnetic latching relay make it suitable for various industrial control applications where energy efficiency and reliability are important.

Magnetic Latching Relay for New Energy and Power Control Systems

With the growth of renewable energy and electric vehicle infrastructure, efficient switching components are becoming increasingly important.

Magnetic latching technology helps reduce standby power consumption and improves the efficiency of power management systems.

Difference Between Latching Relay and Traditional Relay

Although both are used for electrical switching, their operating methods are different.

A latching relay provides a more energy-efficient solution for applications where the switching state needs to remain unchanged after power interruption.

How to Choose a Reliable Magnetic Latching Relay?

Selecting the right relay requires consideration of electrical specifications, installation requirements, and application conditions.

Important factors include:

For high-current applications, products such as a 120A PCB relay should be selected according to load requirements and system design.

A professional relay supplier should provide customized solutions, strict quality control, and technical support to ensure reliable operation in different environments.

Advantages of Choosing a Professional Relay Supplier

A reliable relay supplier plays an important role in ensuring product performance and application safety.

Professional suppliers should provide:

• Advanced relay manufacturing technology
• Stable production capability
• Strict quality inspection
• Customized product solutions
• Technical support for different applications

From material selection to final testing, comprehensive quality control ensures that each magnetic latching relay meets performance and reliability requirements.

Shanghai Malio Industrial Ltd., headquartered in Shanghai, China, specializes in metering components and magnetic materials. Through years of dedicated development, Malio has evolved into an industrial chain provider integrating design, manufacturing, and trading operations.

The company provides comprehensive solutions for customers in power electricity and electronics, industrial equipment, precision instruments, telecommunication, wind power, solar energy, and EV industries.

With professional experience in electrical measurement components and power control solutions, Shanghai Malio Industrial Ltd. is committed to providing reliable magnetic latching relay products, including solutions for smart meters, high-current applications, and customized electrical systems. As an experienced relay supplier, Malio offers professional technical support and customized solutions to meet different customer requirements. Contact Shanghai Malio Industrial Ltd. today to explore high-quality relay solutions for your applications.
