As smart grids, renewable energy systems, and digital energy management continue to expand across the world, electricity meters have become far more sophisticated than traditional mechanical meters. Modern smart electricity meters are expected to provide highly accurate energy measurement, real-time communication, remote monitoring, and long-term operational stability. To achieve these functions, manufacturers rely on advanced magnetic components such as the Power Measurement Current Transformer, Power Inductor, Toroidal Power Inductor, and High Quality Choke Power Inductor.
These components play different but equally important roles within an electricity meter. Current transformers provide accurate current sensing for energy calculation, while inductors stabilize power supplies, filter electrical noise, and improve electromagnetic compatibility (EMC). Together, they help ensure precise measurements, efficient power management, and reliable communication throughout the meter’s lifespan.
As electricity meters are typically expected to operate continuously for 10–20 years with minimal maintenance, selecting high-performance magnetic components is essential. Advanced transformer and inductor technologies not only improve measurement accuracy but also reduce power loss, increase reliability, and support compliance with international standards such as IEC, ANSI, and MID.
Why Power Measurement Current Transformer Is Essential in Smart Electricity Meters
The Power Measurement Current Transformer is one of the most critical sensing components inside a smart electricity meter. Its primary function is to convert high electrical current into a smaller, proportional current that can be safely measured by the meter’s electronic circuitry.
Because electricity meters are connected directly to utility power systems, electrical isolation is essential for both safety and accuracy. The Power Measurement Current Transformer provides galvanic isolation between the high-voltage power line and the low-voltage measurement circuit, protecting sensitive electronic components while ensuring stable current measurement.
A high-quality Power Measurement Current Transformer offers several important advantages:
High measurement accuracy
Excellent linearity
Wide dynamic measurement range
Low phase shift
Superior electrical isolation
Excellent thermal stability
Long operational lifespan
Reliable performance under continuous operation
Inside smart electricity meters, the Power Measurement Current Transformer accurately detects current flowing through residential, commercial, and industrial electrical systems. The measurement signal is then processed by precision metering integrated circuits to calculate energy consumption.
Modern current transformers also support bidirectional energy measurement, making them suitable for renewable energy applications such as rooftop solar systems and distributed power generation.
As utilities increasingly adopt Advanced Metering Infrastructure (AMI), the demand for highly accurate Power Measurement Current Transformer technology continues to grow.
The Role of Power Inductor and Toroidal Power Inductor in Meter Power Management
While current transformers focus on measurement accuracy, the Power Inductor is responsible for maintaining stable power delivery within the electricity meter.
A Power Inductor stores electrical energy in its magnetic field and helps regulate current flow inside switching power supplies and voltage regulation circuits. Since smart electricity meters contain microcontrollers, communication modules, LCD displays, memory devices, and relay circuits, stable power management is essential for reliable system performance.
One of the most popular designs used in electricity meters is the Toroidal Power Inductor.
Unlike traditional inductors, the Toroidal Power Inductor features a ring-shaped magnetic core that efficiently confines magnetic flux within the core itself. This design significantly reduces electromagnetic interference while improving overall energy efficiency.
The Toroidal Power Inductor provides several important benefits:
High Energy Efficiency
The closed magnetic path minimizes magnetic leakage and reduces core losses, allowing the power supply to operate more efficiently.
Reduced Electromagnetic Interference
Because magnetic flux remains largely confined within the toroidal core, the Toroidal Power Inductor produces much lower EMI than many conventional inductor designs. This improves communication reliability inside smart meters.
Compact Size
The efficient magnetic structure allows manufacturers to reduce component size while maintaining high inductance values, making the Toroidal Power Inductor ideal for compact electricity meter designs.
Excellent Thermal Performance
High-quality magnetic materials help maintain stable inductance over a wide operating temperature range, supporting long-term reliability.
The Power Inductor and Toroidal Power Inductor are commonly used in:
DC-DC converters
AC-DC power supplies
Voltage regulators
Communication modules
EMI filters
Signal conditioning circuits
Relay driving circuits
By stabilizing internal power supplies and reducing electrical noise, these inductors contribute significantly to the accuracy and reliability of modern electricity meters.

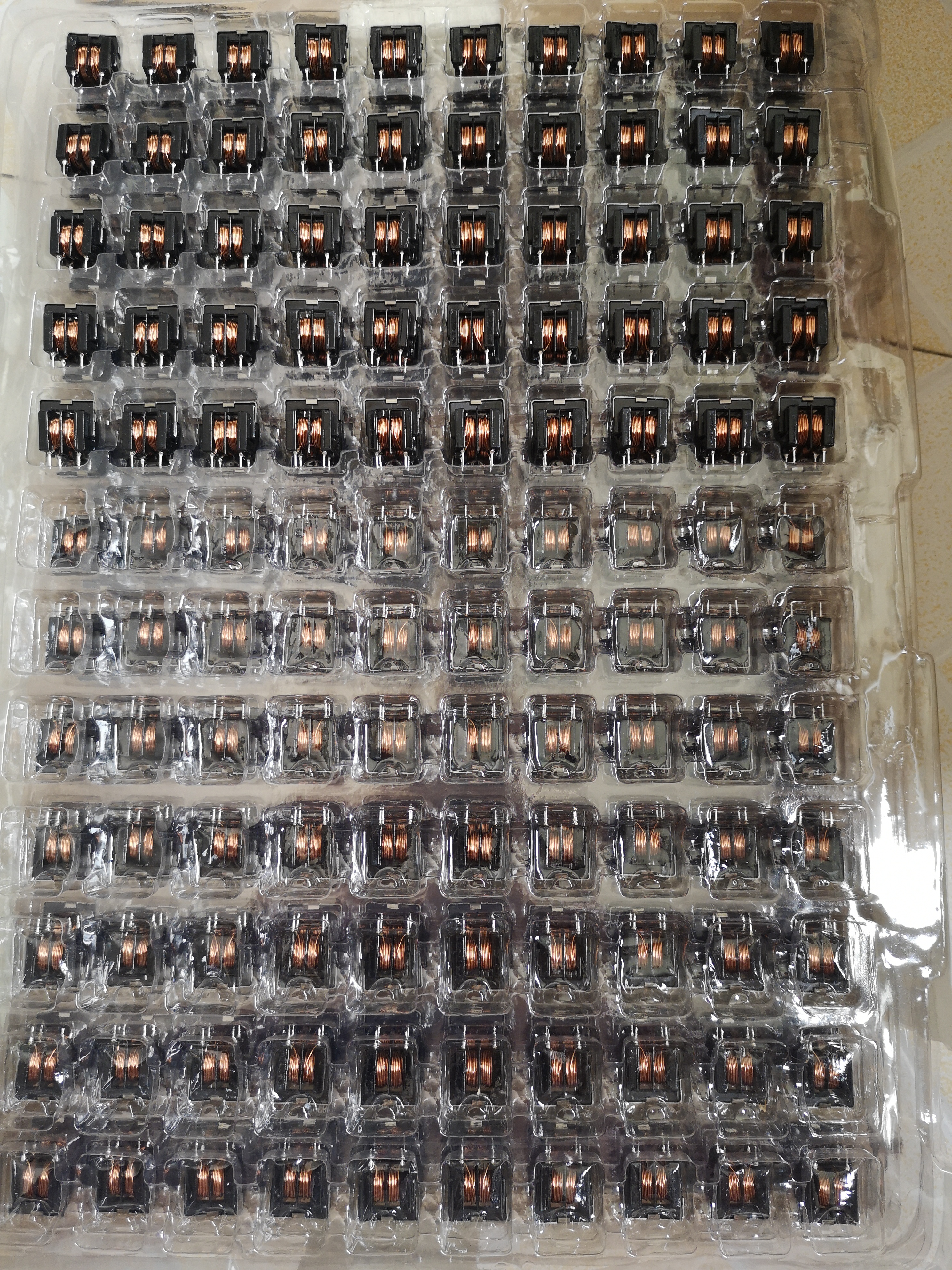

How High Quality Choke Power Inductor Improves EMC and Meter Reliability
One of the biggest challenges in smart electricity meter design is electromagnetic interference generated by switching power supplies, communication circuits, and nearby electrical equipment. The High Quality Choke Power Inductor plays a vital role in suppressing unwanted electrical noise and maintaining signal integrity.
A High Quality Choke Power Inductor is specifically designed to block high-frequency interference while allowing normal operating current to pass with minimal resistance. This filtering capability improves electromagnetic compatibility and protects sensitive measurement circuits from external disturbances.
Key advantages of the High Quality Choke Power Inductor include:
Excellent EMI suppression
Low DC resistance
High current capacity
Stable inductance
Low core loss
Wide frequency response
High reliability
Long service life
Inside electricity meters, the High Quality Choke Power Inductor is widely used in:
Power input filters
Communication interfaces
Switching power supplies
Surge protection circuits
Electromagnetic compatibility filters
Signal conditioning modules
When combined with the Power Measurement Current Transformer, these inductors help maintain highly accurate energy measurement even in electrically noisy environments.
Manufacturers continue improving High Quality Choke Power Inductor technology through the use of advanced ferrite materials, nanocrystalline cores, precision winding techniques, and automated manufacturing processes. These innovations improve efficiency while reducing component size and operating temperature.
As smart grids continue evolving, electricity meters are expected to integrate additional communication technologies such as NB-IoT, LoRaWAN, PLC, RF Mesh, and 5G. Stable power filtering provided by the High Quality Choke Power Inductor becomes increasingly important for ensuring uninterrupted communication and reliable remote meter management.
Furthermore, the combination of Power Measurement Current Transformer, Power Inductor, Toroidal Power Inductor, and High Quality Choke Power Inductor enables manufacturers to build electricity meters capable of meeting the highest international standards for measurement accuracy, electromagnetic compatibility, energy efficiency, and operational reliability.
The performance of modern electricity meters depends heavily on advanced magnetic components that support accurate measurement and stable power management. The Power Measurement Current Transformer provides precise, isolated current sensing that forms the foundation of reliable energy measurement and billing.
Meanwhile, the Power Inductor ensures stable voltage regulation and efficient power conversion for sensitive electronic circuits inside the meter. The Toroidal Power Inductor further enhances efficiency by reducing magnetic leakage, minimizing electromagnetic interference, and enabling compact product designs.
Finally, the High Quality Choke Power Inductor plays an essential role in suppressing electrical noise, improving electromagnetic compatibility, and protecting measurement circuits from interference.
Together, these advanced magnetic technologies enable manufacturers to produce smart electricity meters that deliver exceptional accuracy, long-term reliability, low power consumption, and robust communication performance. As global investment in smart grids and intelligent energy management continues to increase, the Power Measurement Current Transformer, Power Inductor, Toroidal Power Inductor, and High Quality Choke Power Inductor will remain indispensable components in the next generation of high-performance electricity metering solutions.
