The rapid development of smart grids and advanced metering infrastructure (AMI) has placed higher demands on the accuracy, reliability, and long-term stability of electricity meters. Modern smart meters are expected to provide precise energy measurement, real-time monitoring, remote communication, and efficient power management while operating continuously for more than a decade. To achieve these goals, manufacturers rely on high-quality current sensing components such as the Manganin Shunt, Manganin Copper Shunt, Precision Manganin Copper Shunt, and Hot Sales UL Ct Split Core Current Transformer China Manufacturer products.
Current measurement is one of the most important functions of an electricity meter. Any deviation in current sensing directly affects billing accuracy and system performance. Therefore, selecting reliable shunts and current transformers is essential for producing electricity meters that meet international standards such as IEC, ANSI, and MID.
Advanced current sensing technologies combine excellent conductivity, low temperature coefficients, high mechanical strength, and outstanding long-term stability. Whether using precision shunt resistors or split core current transformers, these components enable electricity meters to maintain exceptional measurement accuracy under a wide range of operating conditions.
Why Manganin Shunt Is the Preferred Current Sensing Solution for Electricity Meters
The Manganin Shunt is one of the most widely used precision current sensing components in modern electricity meters. Manufactured from manganin alloy, which is primarily composed of copper, manganese, and nickel, this material offers an extremely low temperature coefficient of resistance, making it ideal for high-accuracy current measurement.
When electrical current passes through the Manganin Shunt a small and precisely controlled voltage drop is generated. The meter’s electronic measurement circuit detects this voltage and accurately calculates the current flowing through the system.
One of the greatest advantages of the Manganin Shunt is its excellent resistance stability. Even when operating under changing temperatures or varying current loads, the resistance value remains highly consistent. This ensures long-term measurement accuracy throughout the service life of the electricity meter.
Major advantages of the Manganin Shunt include:
Extremely low temperature coefficient
High measurement accuracy
Excellent long-term resistance stability
Low thermal electromotive force
High overload capability
Excellent corrosion resistance
Compact design
Cost-effective production
Inside electricity meters, the Manganin Shunt is commonly used in:
Single-phase smart meters
Three-phase smart meters
Prepaid electricity meters
Industrial power meters
Residential energy meters
Smart grid monitoring systems
Compared with conventional sensing resistors, the Manganin Shunt provides superior measurement precision while minimizing energy loss. This makes it one of the preferred current sensing technologies for next-generation smart metering solutions.

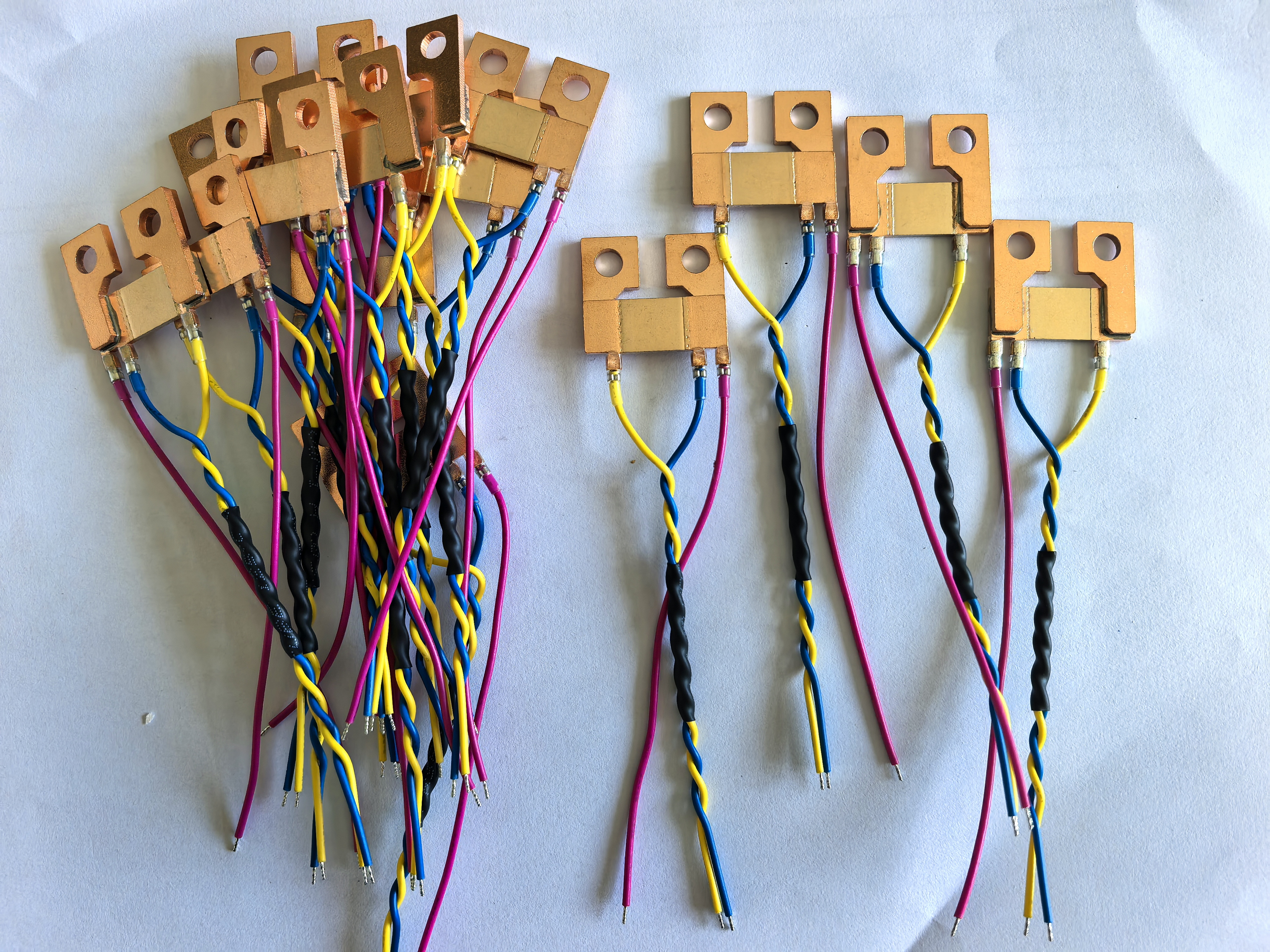

Advantages of Manganin Copper Shunt and Precision Manganin Copper Shunt
As electricity meters become increasingly intelligent, higher measurement precision is required. The Manganin Copper Shunt has become an important solution because it combines the outstanding resistance characteristics of manganin with the excellent electrical conductivity and mechanical strength of copper terminals.
A typical Manganin Copper Shunt consists of a precision manganin resistance element welded to copper terminals using advanced welding technologies such as electron beam welding (EBW) or laser welding. These manufacturing methods produce extremely strong joints with very low contact resistance.
The combination of manganin and copper provides several important performance advantages.
Outstanding Measurement Accuracy
The Precision Manganin Copper Shunt is manufactured with extremely tight resistance tolerances, allowing electricity meters to measure current with exceptional accuracy over extended operating periods.
Excellent Thermal Stability
Because manganin has a very low temperature coefficient, the Precision Manganin Copper Shunt maintains stable resistance values even when the operating temperature changes significantly.
High Mechanical Strength
Copper terminals provide excellent structural support and electrical conductivity, ensuring reliable installation and long-term operation inside electricity meters.
Low Contact Resistance
Advanced welding technology minimizes resistance between the manganin element and copper terminals, reducing heat generation and improving overall efficiency.
Additional benefits of the Manganin Copper Shunt include:
Stable resistance characteristics
High current carrying capacity
Excellent repeatability
Strong overload resistance
Long operational lifespan
Easy integration into automated production lines
The Precision Manganin Copper Shunt is particularly suitable for smart electricity meters requiring Class 0.2S, Class 0.5S, or higher measurement accuracy. These high-performance shunts help manufacturers meet strict international metering standards while ensuring reliable energy billing for utility companies.

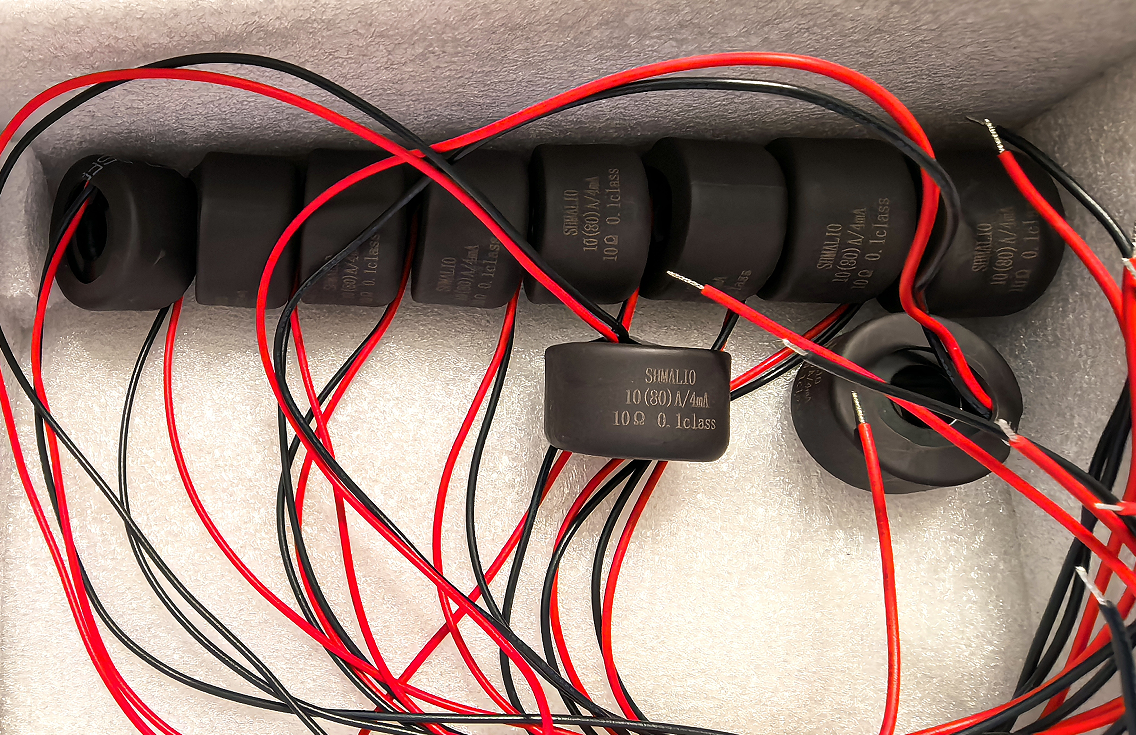

Applications of Hot Sales UL Ct Split Core Current Transformer China Manufacturer Products in Smart Meters
While shunt resistors are widely used for direct current sensing, many electricity meter designs also incorporate current transformers to provide electrical isolation and enhanced safety. Products offered by a Hot Sales UL Ct Split Core Current Transformer China Manufacturer are widely used in advanced smart metering applications.
A split core current transformer allows installers to mount the transformer around an existing conductor without disconnecting the electrical circuit. This greatly simplifies installation, maintenance, and retrofit projects.
The Hot Sales UL Ct Split Core Current Transformer China Manufacturer products offer several important advantages for electricity meter applications.
Safe Electrical Isolation
Current transformers provide galvanic isolation between the high-voltage power line and the meter’s measurement electronics, improving operational safety.
High Measurement Accuracy
Modern split core current transformers are designed with precision magnetic cores that maintain excellent linearity and low phase error across a wide measurement range.
Easy Installation
Unlike solid-core transformers, split core designs can be opened and installed directly around existing conductors, significantly reducing installation time.
Long-Term Reliability
High-quality insulation materials, precision magnetic cores, and durable housings ensure reliable operation under harsh environmental conditions.
Typical applications include:
Smart electricity meters
Energy monitoring systems
Industrial power meters
Building energy management systems
Renewable energy monitoring
Smart grid infrastructure
Distribution automation equipment
Power quality analysis systems
Many products from a Hot Sales UL Ct Split Core Current Transformer China Manufacturer are designed to comply with UL certification requirements, providing additional assurance of safety, quality, and international market acceptance.
In many advanced electricity meters, the Precision Manganin Copper Shunt and split core current transformers work together to optimize current measurement across different operating conditions. Manufacturers can select the most appropriate sensing technology based on current range, installation requirements, accuracy class, and cost considerations.
As digital energy management continues to evolve, innovations in both shunt technology and current transformer design are helping electricity meters become more accurate, more efficient, and more reliable than ever before.
Accurate current measurement is the foundation of every high-performance electricity meter. The Manganin Shunt provides stable, precise, and low-temperature-coefficient current sensing that supports reliable long-term energy measurement.
Building on this, the Manganin Copper Shunt and Precision Manganin Copper Shunt combine exceptional resistance stability with highly conductive copper terminals, delivering superior accuracy, durability, and thermal performance for modern smart metering applications.
Meanwhile, products from a Hot Sales UL Ct Split Core Current Transformer China Manufacturer offer safe, isolated, and highly accurate current measurement solutions that simplify installation while meeting international quality standards.
Together, these advanced sensing technologies enable manufacturers to produce smart electricity meters capable of delivering outstanding accuracy, operational safety, and long-term reliability. As global demand for intelligent energy management and smart grid infrastructure continues to grow, precision shunts and split core current transformers will remain indispensable components in the next generation of electricity metering systems.
