With the growing demand for energy efficiency and intelligent power management, electricity meter manufacturers are increasingly focusing on improving the performance of magnetic components used in electrical measurement and power monitoring equipment. Transformer cores play an important role in electromagnetic energy conversion, voltage sensing, signal isolation, and auxiliary power supply circuits. Among the available magnetic materials, amorphous alloys have attracted attention because of their low core loss and favorable magnetic properties.
An Amorphous Transformer Core is manufactured from amorphous metal alloy with a disordered atomic structure, unlike the regular crystalline structure found in conventional electrical steel. This unique structure can help reduce hysteresis loss and improve magnetic performance under suitable operating conditions. For electricity meter applications, amorphous cores may be used in auxiliary transformers, voltage measurement circuits, and other magnetic components, depending on the meter’s design.
Understanding the characteristics of a Transformer Amorphous Core and a Fe Based Amorphous Core helps electricity meter manufacturers select appropriate materials for reliable, energy-efficient electrical equipment.
1. Understanding Amorphous Transformer Core Technology for Electricity Meters
An Amorphous Transformer Core is a magnetic core made from amorphous alloy, which is typically produced by rapidly cooling molten metal to prevent the formation of a conventional crystalline structure. The resulting material has distinctive magnetic characteristics that make it suitable for selected transformer and inductive component applications.
Compared with conventional silicon steel, amorphous alloys can provide significantly lower core loss under appropriate magnetic flux density and frequency conditions. This characteristic is particularly valuable in applications where transformers operate continuously and energy efficiency is an important design objective.
Key Characteristics of Amorphous Transformer Cores
One of the main advantages of amorphous magnetic materials is their low hysteresis loss. When a transformer core is repeatedly magnetized and demagnetized, energy is dissipated as heat. The magnetic properties of amorphous alloys can reduce this loss compared with many conventional core materials.
Another important characteristic is their relatively high electrical resistivity compared with conventional electrical steel. Higher resistivity helps limit eddy-current losses within the magnetic material, although actual performance depends on alloy composition, ribbon thickness, core geometry, and operating frequency.
Amorphous alloy is commonly produced in thin ribbons that can be wound or assembled into different core shapes. This manufacturing approach supports compact magnetic components for suitable electrical equipment. However, amorphous ribbons can be more brittle and mechanically sensitive than conventional laminated electrical steel, so processing and handling require appropriate techniques.
Applications in Electricity Metering Equipment
Electricity meters measure electrical energy consumption by processing voltage and current signals. Depending on the meter architecture, magnetic components may be incorporated into voltage sensing, isolation, power conversion, or auxiliary power supply circuits.
Amorphous cores can be considered for small transformers used in auxiliary power supplies or other circuits where low magnetic loss is beneficial. In electronic electricity meters, these transformers may help supply power to internal measurement and processing circuits.
For some meter designs, magnetic components also support signal isolation or other power-related functions. However, amorphous cores are not universally required for electricity metering. Many meters use alternative sensing technologies, including resistive shunts, current transformers made with other magnetic materials, and direct electronic voltage measurement circuits.
The most suitable core depends on the specific function, operating frequency, required accuracy, size limitations, and cost targets of the complete meter.
2. Transformer Amorphous Core and Fe Based Amorphous Core: Materials and Advantages
A Transformer Amorphous Core is designed to provide the magnetic path needed for transformer operation. Its performance depends on the magnetic alloy, core construction, annealing process, winding arrangement, and operating conditions.
Among the available amorphous alloys, iron-based materials are particularly important because they combine useful magnetic properties with practical manufacturing potential.
Transformer Amorphous Core for Efficient Magnetic Performance
The main function of a transformer core is to guide magnetic flux between the windings and support electromagnetic energy transfer. A well-designed core helps reduce magnetizing requirements and energy losses while maintaining the required electrical performance.
An amorphous core can provide low core loss under suitable operating conditions, which may help improve the efficiency of auxiliary transformers used in electricity meters and associated monitoring equipment. Lower core loss can also reduce internal heat generation, although total transformer efficiency depends on winding resistance, load, insulation, and other design factors.

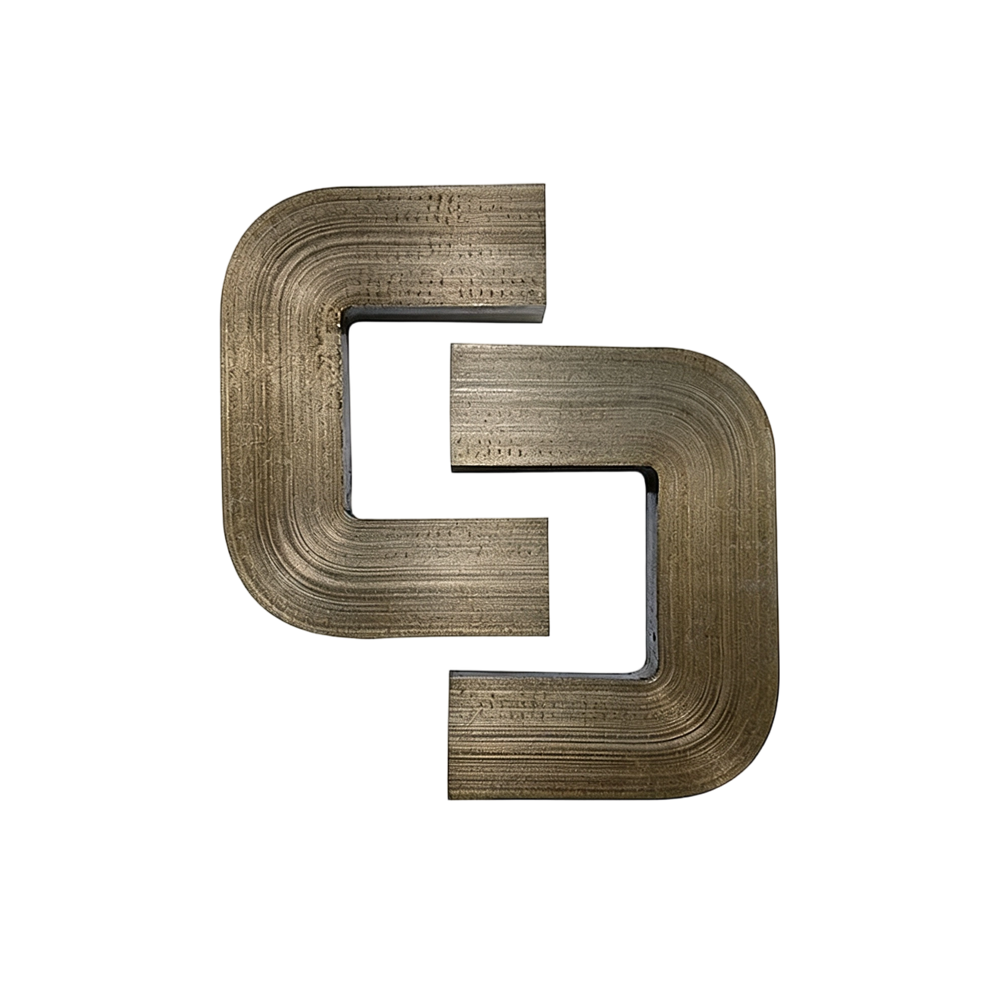

Core geometry is another important consideration. Common configurations for amorphous magnetic components include wound cores and other shapes adapted to the transformer’s intended use. The choice depends on the winding process, installation space, magnetic requirements, and production method.
For electricity meter manufacturers, the goal is not simply to select a material with low core loss. The complete transformer must meet requirements for electrical isolation, temperature rise, reliability, mechanical stability, and long-term operation.
Fe Based Amorphous Core
A Fe Based Amorphous Core is manufactured from an iron-based amorphous alloy. These alloys generally contain iron combined with other elements, such as silicon and boron, although the exact composition varies by material grade and manufacturer.
Iron-based amorphous alloys are widely recognized for their soft magnetic properties and potential for low core loss. Their magnetic characteristics make them suitable for selected distribution transformers, high-efficiency power transformers, inductors, and other magnetic components.
In electricity meter applications, an iron-based amorphous core may be used when the transformer design benefits from reduced magnetic losses. For example, an auxiliary transformer operating continuously may benefit from a suitable low-loss core, especially when standby energy consumption is a design concern.
However, core performance must be evaluated at the actual operating frequency, magnetic flux density, and temperature. Some amorphous alloys have different saturation characteristics from conventional electrical steel, and their mechanical sensitivity can influence manufacturing yield and final product reliability.
When sourcing a Fe Based Amorphous Core buyers should confirm the alloy grade, core loss specifications, saturation flux density, magnetic permeability, ribbon dimensions, annealing requirements, and relevant test conditions. These details help ensure that the material is appropriate for the intended transformer design.
3. How to Select the Right Amorphous Core for Electricity Meter Applications
Selecting an appropriate core requires a comprehensive evaluation of the electrical design, magnetic performance, manufacturing process, and operating environment. Electricity meter manufacturers should consider the following factors before choosing an Amorphous Transformer Core for their products.
Core Loss and Operating Frequency
Core loss is one of the most important parameters when evaluating amorphous magnetic materials. It represents the energy dissipated in the core during repeated magnetization and is commonly expressed as power loss per unit mass under specified test conditions.
Buyers should compare core loss data only when the measurement conditions are comparable. Frequency, magnetic flux density, temperature, and material processing can all influence the results.
For electricity meter auxiliary power supplies, the operating frequency of the transformer is particularly important. A material that performs well at one frequency may not provide the same advantage under different operating conditions.
Core Dimensions and Magnetic Specifications
The core must fit the transformer’s winding structure and available installation space. Important parameters include inner diameter, outer diameter, core height, ribbon thickness, effective cross-sectional area, and total core weight.
Magnetic specifications should include permeability, saturation behavior, and core loss. These parameters influence transformer size, magnetizing current, and operating efficiency.
Customized core dimensions may be required for compact electricity meters or specialized electronic metering equipment. Manufacturers should verify technical drawings, dimensional tolerances, and sample performance before moving to mass production.
Manufacturing Quality and Reliability
Amorphous ribbons require careful handling during core manufacturing. Winding tension, cutting methods, annealing conditions, and assembly processes can influence the final magnetic properties. Improper processing may increase losses or damage the material.
A reliable supplier should provide consistent material quality, clear technical documentation, and appropriate inspection procedures. Relevant checks may include dimensional measurement, magnetic performance testing, visual inspection, and verification of material specifications.
For transformer applications, the core should also be evaluated as part of the finished component. Winding resistance, insulation performance, temperature rise, and electrical safety requirements remain important even when a low-loss magnetic material is used.
Cost and Application Suitability
Although amorphous materials can provide energy-efficiency advantages, they may involve different processing requirements and material costs compared with conventional electrical steel. The economic benefit depends on the transformer’s operating profile, expected service life, manufacturing volume, and efficiency targets.
For electricity meter manufacturers, the best solution balances core loss, dimensions, reliability, manufacturing cost, and compatibility with the overall circuit design. An amorphous core should be selected when its performance advantages align with the actual requirements of the metering equipment.
An Amorphous Transformer Core offers a potential solution for transformer designs that require low magnetic losses and efficient operation. A Transformer Amorphous Core can support auxiliary transformer applications in electricity meters, while a Fe Based Amorphous Core provides a widely used material option for suitable high-efficiency magnetic components.
When selecting an amorphous core for electricity metering equipment, manufacturers should evaluate core loss, operating frequency, magnetic properties, dimensions, manufacturing quality, and total system cost. By matching the material to the intended transformer application, electricity meter manufacturers can develop reliable, compact, and energy-efficient products for modern power measurement and management systems.
