A current transformer measures and monitors electric current in power systems, playing a vital role in both protection and energy management. Different types of transformers serve unique applications. Wound-type transformers lead the market due to their accuracy, while bar-type and split-core transformers see rapid growth for their compact design and retrofit capabilities. Low voltage and Three Phase Current Transformer models address expanding needs in residential, commercial, and industrial sectors. Shanghai Malio Industrial Ltd. stands out for its innovative approach, delivering reliable current transformer solutions trusted by professionals worldwide.
Key Takeaways
- Current transformers are essential for measuring and monitoring electric current, ensuring safety and accuracy in power systems.
- Different types of current transformers, like solid-core and split-core, serve unique purposes; choose based on installation needs and accuracy requirements.
- Proper selection of a current transformer involves matching the current rating, accuracy class, and installation environment to the application.
- Routine maintenance, including inspections and cleaning, is crucial for extending the lifespan and maintaining the accuracy of current transformers.
- Always ground the secondary side of a current transformer to prevent hazardous voltages and ensure safe operation during installation and maintenance.
What Is a Current Transformer?
Basic Principle and Function
A current transformer is a specialized transformer designed for accurate measurement and monitoring of electric current in power systems. Engineers use current transformers to step down high currents to manageable levels for instruments and meters. The current transformer working principle relies on electromagnetic induction. When current flows through the primary winding, it creates a magnetic field. This field induces a proportional current in the secondary winding, allowing precise measurement without direct connection to high-voltage circuits.
Current transformer operation ensures safety and reliability in metering applications. The transformer isolates measurement devices from the main circuit, protecting sensitive equipment and personnel. Technicians select different types of current transformers based on application requirements, such as solid-core, split-core, or wound designs. Each transformer type offers unique benefits for current measurement, system protection, and installation flexibility.
Tip: Always match the current transformer rating to the expected current range for optimal accuracy and performance.
Why Current Transformers Matter
Current transformers play a critical role in modern electrical systems. They enable accurate current measurement, which is essential for monitoring energy consumption and detecting faults. Utilities and industries rely on current transformers for metering applications, system control, and protection. The protection current transformer detects abnormal current levels, triggering safety mechanisms to prevent equipment damage.
Current transformer used for both measurement and protection ensures efficient operation of power networks. Engineers depend on transformers to maintain system stability and support advanced automation. The ability to select from various transformer types allows for tailored solutions in residential, commercial, and industrial settings. Reliable current transformer operation enhances safety, reduces downtime, and supports regulatory compliance.
| Application Area | Purpose | Transformer Type |
|---|---|---|
| Residential | Energy monitoring | Low voltage, split-core |
| Industrial | Fault detection, protection | Three-phase, bar type |
| Commercial | Load management, metering | Window, wound type |
Types of Current Transformers
Current transformers come in several distinct types, each designed for specific measurement and protection tasks in electrical systems. Engineers select the appropriate transformer based on the application's voltage level, installation environment, and accuracy requirements. Understanding the differences among these types of current transformers helps professionals optimize system performance and safety.
Solid-Core vs Split-Core
Solid-core current transformers feature a continuous magnetic core that surrounds the conductor. Manufacturers design these transformers for permanent installations where the conductor can be disconnected during setup. Solid-core models deliver high accuracy and reliability, making them ideal for new construction and critical metering applications.
Split core current transformers offer a unique advantage for retrofit projects. Their core opens and closes, allowing technicians to install the transformer around an existing conductor without disconnecting the circuit. This design saves time and reduces downtime in facilities that require ongoing operations. Split core transformers provide flexibility for energy monitoring upgrades and temporary installations.
Note: Split core transformers simplify installation in crowded panels or when access to the conductor is limited.
| Feature | Solid-Core CTs | Split Core CTs |
|---|---|---|
| Installation | Requires circuit break | No circuit break needed |
| Accuracy | High | Moderate to high |
| Typical Use | New builds, metering | Retrofits, upgrades |
| Maintenance | Minimal | Easy removal |
Wound, Toroidal, Bar, and Window Types
Wound current transformers use a primary winding wrapped around the core. This design enables precise measurement of low currents and supports applications where the primary current is less than the secondary rating. Wound transformers excel in laboratory settings and specialized metering tasks.
Toroidal current transformers feature a ring-shaped core with no direct electrical connection to the conductor. The conductor passes through the center of the core, inducing current in the secondary winding. Toroidal transformers offer compact size and high accuracy, making them suitable for panel-mounted energy meters and protection relays.
Bar-type current transformers utilize a solid bar as the primary conductor. The bar passes through the core, and the transformer measures high current levels in industrial environments. Bar-type models withstand harsh conditions and support large-scale power distribution systems.
Window-type current transformers have an open center or "window" through which the conductor passes. This design accommodates various conductor sizes and shapes, providing versatility for commercial and industrial installations.
Tip: Select window-type transformers for applications with multiple conductors or busbars.
Bushing and Casing Types
Bushing-type current transformers integrate directly into high-voltage equipment bushings. Engineers use these transformers for monitoring and protection in substations and switchgear. The bushing design ensures safe isolation and accurate current measurement in high-voltage environments.
Casing-type current transformers feature protective enclosures that shield the core and windings from dust, moisture, and mechanical damage. These transformers suit outdoor installations and harsh industrial settings, where environmental protection is essential for long-term reliability.
- Bushing-type transformers: Embedded in equipment bushings for high-voltage measurement.
- Casing-type transformers: Enclosed for durability in challenging environments.
Engineers rely on bushing and casing types to maintain system integrity and ensure accurate current monitoring in demanding conditions.

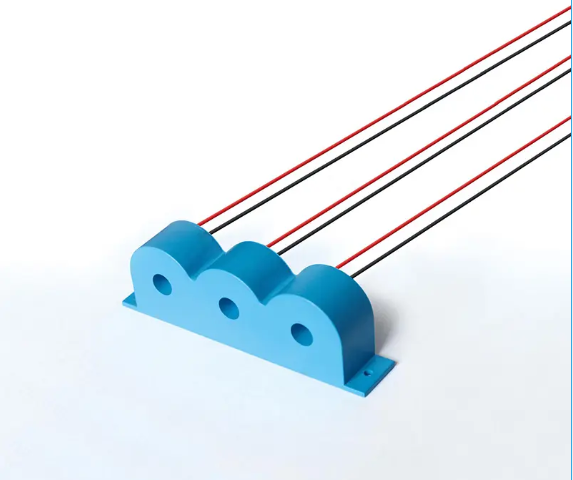

Three Phase Current Transformer Overview
Three Phase Configurations
A three phase current transformer measures current in three-phase electrical systems. These systems use three conductors, each carrying alternating current with a phase difference. Engineers often choose three phase transformer units that combine three single-phase transformers in one enclosure. This design simplifies installation and ensures balanced measurement across all phases. Some configurations use three separate transformers, while others use a single molded assembly. The choice depends on the application and space available in the panel.
Applications in Power Systems
Industrial and commercial facilities rely on three phase current transformer solutions for accurate current measurement and protection. These transformers monitor the flow of current in large motors, generators, and distribution panels. They help detect overloads, faults, and imbalances in the system. Power plants, factories, and office buildings use these transformers to ensure safe operation and efficient energy management. Accurate measurement supports billing, load analysis, and system optimization.
Tip: Three phase transformers play a key role in energy audits and preventive maintenance programs.
Selection and Installation Tips
Selecting the right three phase current transformer requires careful consideration. Engineers must match the transformer rating to the maximum expected current. They should check the accuracy class to meet metering or protection needs. The physical size must fit the available space in the switchgear or panel. For installation, technicians should follow the manufacturer's guidelines. They must ensure correct orientation and secure all connections. Regular inspection and testing help maintain reliable performance.
| Selection Factor | Recommendation |
|---|---|
| Current Rating | Match to system maximum |
| Accuracy Class | Choose for metering or protection |
| Physical Size | Confirm fit in panel or enclosure |
| Installation | Follow manufacturer instructions |
Note: Proper installation and routine checks extend transformer life and improve system safety.
Split-Core Current Transformer Guide
Features and Benefits
Split-core current transformer designs offer unique advantages for modern electrical systems. Engineers value these transformers for their ability to open and close around existing conductors. This feature allows installation without disconnecting wires or interrupting power. The split core construction provides flexibility for upgrades and maintenance in busy facilities. Technicians can quickly install or remove the transformer, reducing downtime and improving efficiency. The compact size fits easily into crowded panels, making it suitable for both new and retrofit projects.
Tip: Split-core current transformer models simplify energy monitoring in environments where access to conductors is limited.
Retrofit and Sensor Applications
Many industries rely on split-core current transformer solutions for retrofitting older systems. These transformers help monitor current flow in machinery, distribution panels, and renewable energy installations. The table below highlights key advantages and applications:
| Advantage/Application | Description |
|---|---|
| Easy Installation | No need to disconnect cables or disrupt power |
| Time-Saving | Ideal for retrofitting existing systems |
| Cost-Effective | Saves labor costs compared to solid core transformers |
| Industrial Settings | Monitors machinery and optimizes energy consumption |
| Commercial Buildings | Tracks energy usage to reduce costs and improve efficiency |
| Renewable Energy Systems | Monitors power flow in solar farms and wind turbines |
Engineers use split-core current transformer devices to add sensors for real-time monitoring. These transformers support energy audits, load analysis, and preventive maintenance. Facility managers can track current usage and identify inefficiencies without major system changes.
Pros and Cons
Split-core current transformer products deliver several benefits, but users should consider their limitations. The main advantages include easy installation, flexibility, and suitability for retrofit applications. These transformers reduce labor costs and minimize disruption during upgrades. However, they may offer slightly lower accuracy compared to solid-core designs in some cases. Engineers should select the right transformer based on the required precision and installation environment.
Pros:
- Quick installation
- No need to disconnect conductors
- Ideal for retrofits and upgrades
- Supports sensor integration
Cons:
- Accuracy may be lower than solid-core models
- Not recommended for all high-precision metering tasks
Note: Always verify the accuracy class of the split-core current transformer before selecting it for critical measurement applications.
Current Transformer Types Comparison
Key Differences Table
Selecting the right current transformer depends on understanding the unique features of each design. The table below highlights the main differences among the most common types. Engineers can use this comparison to match transformer characteristics to specific project needs.
| Type | Core Design | Installation Method | Accuracy Range | Typical Application |
|---|---|---|---|---|
| Solid-Core | Closed | Requires circuit break | High (Class 0.2-1) | Permanent metering, protection |
| Split-Core | Hinged/split | No circuit break needed | Moderate to High | Retrofits, temporary monitoring |
| Wound | Multiple turns | Wired into circuit | Very High | Low current measurement |
| Bar-Type | Bar as primary | Integrated in busbar | High | High current, industrial |
| Window-Type | Open center | Conductor passes through | High | Versatile, multi-conductor |
| Bushing-Type | Embedded | Built into equipment | High | High-voltage substations |
| Casing-Type | Enclosed | Outdoor/harsh environments | High | Outdoor, industrial |
Note: Engineers should always verify the accuracy class and installation requirements before selecting a current transformer for critical measurement tasks.
Best-Use Scenarios
Industry experts recommend specific current transformer types for different applications. The table below summarizes best-use scenarios, typical ratios, and relevant standards for each application.
| Application | Recommended Type | Typical Ratio | Accuracy Class | Burden Target | Standards Reference |
|---|---|---|---|---|---|
| Revenue Metering (LV) | Solid-Core, Window | 600/5, 800/5 | Class 0.2S | <5 VA | IEC 61869-2, IEEE C57.13 |
| Feeder Protection (MV) | Bar-Type, Bushing | 1200/1, 2000/1 | 5P20 / C200 | <20 VA | IEC 61869-2, IEEE C37.110 |
| Differential Protection | Wound, Bushing | Matched to load | PX or TPS | <15 VA | IEC 61869-6, IEC 60255-6 |
| Generator Protection | Bar-Type, Bushing | 3000/1, 4000/1 | 5P20, high Vk | <30 VA | IEEE C37.102, IEC 61869-2 |
| Temporary Monitoring | Split-Core | Flexible | Class 1 | <2 VA | IEC 61869-2 Annex B |
- Solid-core and window types excel in permanent revenue metering.
- Bar-type and bushing transformers provide robust protection for feeders and generators.
- Wound transformers deliver precise measurement for differential protection.
- Split-core transformers offer flexibility for temporary or retrofit monitoring.
Tip: Matching the transformer type to the application ensures reliable current measurement and long-term system performance.
How to Select a Current Transformer
Key Selection Factors
Selecting the right current transformer requires careful evaluation of several factors. Engineers start by identifying the application. They determine if the system needs metering, protection, or both. The current rating must match the maximum expected load. Accuracy class plays a critical role in measurement reliability. For billing, a higher accuracy class ensures precise readings. Installation environment also affects the choice. Some transformers work best indoors, while others withstand harsh outdoor conditions.
A step-by-step selection process helps professionals make informed decisions:
- Define the application (metering, protection, or monitoring).
- Calculate the maximum current in the circuit.
- Choose a transformer with a suitable current ratio.
- Check the accuracy class required for the task.
- Assess the installation space and mounting method.
- Review the burden rating to match connected devices.
- Select the appropriate type for the environment (solid-core, split-core, or bushing).
Tip: Always consult the manufacturer's datasheet to verify transformer specifications before installation.
Common Pitfalls to Avoid
Mistakes during selection can lead to inaccurate readings or equipment failure. One common error involves choosing a transformer with the wrong current ratio. This mismatch can cause incorrect measurements. Another pitfall is ignoring the accuracy class. Using a low-accuracy transformer for billing can result in disputes. Engineers sometimes overlook the burden rating, which affects performance when connecting multiple devices.
Improper installation also creates problems. Placing the transformer in a location with excessive heat or vibration reduces lifespan. Failing to secure connections may lead to unreliable operation. To avoid these issues, engineers should:
- Double-check all ratings and specifications.
- Follow installation guidelines closely.
- Schedule regular maintenance checks.
Selecting the correct current transformer ensures safe, accurate, and reliable power monitoring for all types of electrical systems.
Installation and Maintenance Tips
Installation Steps
Engineers must follow precise steps when installing a current transformer to ensure accurate measurement and system safety. First, they select the correct transformer type for the application, considering the current rating and installation environment. Next, they position the transformer around the conductor, ensuring the orientation matches the manufacturer's markings. For split-core designs, technicians open the core, place it around the conductor, and securely close the core. Solid-core transformers require disconnecting the conductor before installation. After mounting, they connect the secondary terminals to the measuring device or protection relay. Technicians verify all connections and check for tightness to prevent signal loss.
Tip: Always ground the secondary side of the current transformer to avoid hazardous voltages.
Maintenance Best Practices
Routine maintenance extends the lifespan of current transformers and maintains measurement accuracy. Technicians inspect the transformer for signs of wear, corrosion, or overheating. They clean the core and terminals to remove dust and debris. For outdoor transformers, they check the casing for moisture ingress or physical damage. Engineers test the insulation resistance and secondary circuit continuity at regular intervals. Calibration checks ensure the transformer continues to provide reliable current readings.
| Maintenance Task | Frequency | Purpose |
|---|---|---|
| Visual Inspection | Monthly | Detect physical issues |
| Cleaning | Quarterly | Prevent contamination |
| Electrical Testing | Annually | Verify performance |
| Calibration | As needed | Maintain accuracy |
Safety Considerations
Safety remains a top priority during installation and maintenance of current transformers. Technicians must de-energize circuits before working with solid-core models. For split-core transformers, they use insulated tools and wear protective equipment. Engineers avoid open-circuiting the secondary winding while the primary carries current, as this can generate dangerous voltages. They follow manufacturer guidelines and local electrical codes to minimize risks. Proper labeling and documentation help prevent accidental contact or incorrect wiring.
Note: Never leave the secondary winding of a current transformer open when the primary is energized.
