Unraveling the Enigma of Segment LCDs: A Deep Dive into Display Technology

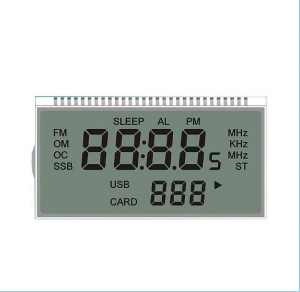

The Fundamental Anatomy of an LCD Segment

Defining the Optoelectronic Building Block

An LCD segment, at its fundamental core, is an ingenious optoelectronic building block. It is typically fabricated from two meticulously prepared pieces of Indium Tin Oxide (ITO) glass, between which a specialized liquid crystal material, often a twisted nematic fluid, is precisely sandwiched. Transparent electrodes, intricately patterned onto these glass substrates through photolithography, define the individual segments that will ultimately form characters or symbols when activated. The assembly of these components forms a layered structure, akin to a delicate sandwich, where the liquid crystal material is enclosed by the glass plates and polarizing filters.

The inherent "glass-only" characteristic of many segment LCDs signifies a modular design philosophy. This approach allows the core display element to remain a passive, cost-effective component, with complex driving logic and control circuitry residing externally, often on a Printed Circuit Board (PCB) or integrated within a microcontroller. This modularity facilitates highly flexible and customizable integration, empowering manufacturers to tailor solutions precisely to diverse application requirements, thereby optimizing both cost and complexity for various product designs.

The Electro-Optical Modus Operandi: How Liquid Crystals Orchestrate Light

The operational principle of an LCD segment is rooted in its ability to modulate light, rather than emit it directly. When an electrical voltage is applied across a specific segment's electrodes, it generates an electric field. This field, in turn, influences the alignment and orientation of the liquid crystal molecules within that segment. Depending on their alignment, these molecules can either rotate the polarization of incident light, allowing it to pass through crossed polarizers and appear "on" (typically dark), or maintain their original orientation, causing the light to be blocked and the segment to appear "off" (transparent or background colored). The visual state of a segment—whether it appears activated or deactivated—is determined by the Root Mean Square (RMS) value of the voltage applied across it.

A critical engineering consideration in driving LCD segments is the necessity of employing an alternating current (AC) waveform, meticulously designed to maintain a zero average DC value. This precise electrical control is paramount because applying a constant DC voltage across the liquid crystal material for extended periods would induce electrochemical degradation, primarily through electrolysis effects on the liquid crystal itself and the transparent electrodes. Such degradation would severely compromise the display's performance and significantly curtail its lifespan. By utilizing a rapidly switched AC waveform (typically 30-100 Hz), the display's longevity and reliability are ensured, preventing premature failure and maintaining consistent visual integrity over time. This elegant solution to a fundamental engineering challenge underscores the sophistication behind seemingly simple display devices.

Beyond the Octal: A Taxonomy of Segmented Displays

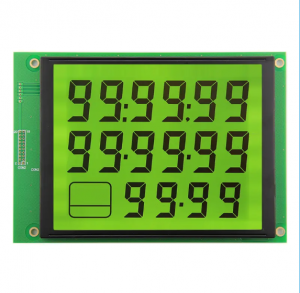

The Enduring Legacy of the Seven-Segment Configuration

The seven-segment display remains an iconic and widely recognized configuration, primarily employed for the clear and concise representation of Arabic numerals from 0 to 9. Its arrangement is geometrically straightforward: two vertical segments on each side, complemented by three horizontal segments positioned at the top, middle, and bottom, forming a recognizable rectangular or oblique pattern. An optional eighth segment, typically a decimal point (DP), is often included for displaying non-integer values. The entire state of a seven-segment digit, including the decimal point, can be efficiently encoded within a single byte, simplifying control logic.

Expanding Alphanumeric Horizons: 14-Segment and 16-Segment Displays

While the seven-segment format excels at numerical display, its capabilities for comprehensive alphanumeric representation are inherently limited. Certain letters, such as 'M' or 'V', cannot be clearly or unambiguously rendered. This functional constraint directly led to the development of more elaborate segment configurations. The fourteen-segment display, sometimes referred to as a starburst or Union Jack display, emerged as a significant expansion, incorporating an additional four diagonal and two vertical segments, along with a bisected middle horizontal segment. This enhanced geometry enables the unambiguous rendering of the ISO basic Latin alphabet and a broader range of characters, addressing the need for more versatile textual communication. Further refinements led to the sixteen-segment display, offering even greater character fidelity and visual distinction. This progression from simpler to more complex segment arrangements illustrates a fundamental design trade-off: balancing display simplicity and manufacturing cost against the necessity for richer informational content.

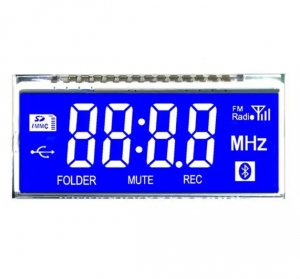

The Versatility of Arbitrary Segment Design and Iconography

A notable characteristic of segment LCDs, stemming from their photolithographic manufacturing process, is the remarkable flexibility in segment design. Unlike the physically molded, often rectangular segments of LED displays, LCD segments can be fashioned into virtually any arbitrary shape or size. This capability extends far beyond standard numeric or alphanumeric patterns, allowing for the integration of custom icons, symbols, or even company logos directly into the display glass. These bespoke segments can be individually activated or deactivated, providing highly intuitive visual cues, such as battery indicators, antenna symbols, or bar graphs, which are universally understood irrespective of language. Furthermore, it is even possible to "burn" certain segments into the glass during manufacturing, rendering them permanently visible even when the device is powered off, a feature often utilized for branding or critical static information. This capacity for arbitrary segment shapes and custom iconography further extends their utility, allowing for highly customized, intuitive visual cues that transcend linguistic barriers.

Luminous Dichotomy: LCD Segment Displays Versus Their LED Counterparts

A common query arises regarding the nature of a 7-segment display: "Is a 7 segment display LED or LCD?" The answer is that "7-segment display" refers to the configuration of the display elements, not the underlying technology itself. This iconic arrangement can indeed be implemented using various display technologies, most notably Light-Emitting Diodes (LEDs) and Liquid Crystal Displays (LCDs). The fundamental distinction lies in their operational principles: LEDs are

emissive devices that generate their own light through electroluminescence when current passes through their p-n junctions. Conversely, LCDs are

light-modulating devices; they do not emit light but rather manipulate the passage of ambient or external backlight through liquid crystals and polarizers to form images.

The Distinctive Merits of LCDs in Segmented Applications

Segment LCDs possess several compelling advantages over their LED counterparts, particularly for certain applications. Foremost among these is their significantly lower power consumption. A "glass-only" segment LCD, operating without a backlight, can draw as little as 1mA, whereas an LED-backlit version might require 10mA to 25mA. This exceptional energy efficiency makes segment LCDs an ideal choice for battery-powered devices, portable instruments, and applications where conserving energy is paramount, such as smart meters. The fundamental distinction in light interaction—LCDs modulate ambient or backlit light, whereas LEDs actively emit it—confers a significant advantage upon segment LCDs: superior power efficiency, especially for static or low-refresh rate applications. This inherent characteristic makes them exceptionally well-suited for battery-powered devices or systems requiring continuous, low-power operation, where energy conservation is paramount.

Furthermore, the manufacturing process of LCDs, involving photolithography, allows for the creation of segments in virtually any arbitrary shape or size. This contrasts with LED segments, which are typically physically molded into simpler, often rectangular forms due to manufacturing constraints. This design flexibility enables highly customized displays with unique icons and character representations. Segment LCDs also generally offer superior readability in bright ambient light, especially when configured with reflective polarizers, as they utilize the surrounding illumination rather than competing with it. Their cost-effectiveness, stemming from simpler manufacturing and control mechanisms, further bolsters their appeal for high-volume, cost-sensitive applications.

While Liquid Crystal Displays are often broadly associated with wide viewing angles , a closer examination reveals a critical nuance, particularly for basic segment LCDs utilizing Twisted Nematic (TN) technology. These displays frequently exhibit a constrained viewing cone, necessitating careful consideration of the intended viewing orientation (e.g., 6 o'clock or 12 o'clock) during product design. This ensures optimal visual performance and user experience, as contrast and color fidelity can diminish significantly when viewed from oblique angles. This highlights that "LCD" is a broad term, and specific LCD technologies, like segment LCDs, particularly those employing TN fluids, have their own distinct performance characteristics that must be carefully managed.

The Alchemical Core: Nematic Fluid Technologies and Their Performance Spectrum

The liquid crystal material, or nematic fluid, is the very essence of an LCD segment, and its specific formulation profoundly dictates the display's optical properties and performance characteristics. The continuous development of these fluid technologies exemplifies an ongoing engineering endeavor to surmount the intrinsic limitations of liquid crystal displays, particularly concerning viewing angle and contrast. Each successive advancement represents a calculated trade-off, balancing enhanced visual performance against factors such as manufacturing cost and response time.

Twisted Nematic (TN) and High Twisted Nematic (HTN) Formulations

Twisted Nematic (TN) fluid is the most common and least expensive liquid crystal type utilized in segment displays. It operates on a principle where the liquid crystal molecules exhibit a 90° twist between the glass substrates when no voltage is applied. TN displays are characterized by their fast response times, making them suitable for applications where rapid updates are needed. However, they typically offer a narrow viewing angle and present content as black characters on a gray background.

High Twisted Nematic (HTN) fluid represents an incremental improvement over TN technology. With a twist angle typically around 110°, HTN offers a wider viewing angle and improved contrast compared to TN displays. Furthermore, HTN can operate effectively with very low driving voltages, making it a popular choice for handheld and battery-powered applications where power efficiency is a key design criterion.

Super Twisted Nematic (STN) and Film Super Twisted Nematic (FSTN) Innovations

Super Twisted Nematic (STN) fluid marks a significant leap in performance, featuring a higher twist angle, often ranging from 180° to 240°. This increased twist directly translates to superior contrast and wider viewing angles compared to TN displays. STN displays commonly present content as dark blue characters on a gray background or dark gray/black characters on a yellow/green background. While offering better visual quality, their response time is generally moderate.

Film Super Twisted Nematic (FSTN) is an advanced variant of STN technology. It incorporates an optical compensating film, typically positioned in front of the STN fluid layer. This film is engineered to compensate for the inherent coloration of STN displays, thereby achieving a highly desirable black-on-white display with enhanced contrast and even wider viewing angles. FSTN displays closely mimic the appearance of ink on paper, making them highly legible. Further refinements include Double Film Super Twisted Nematic (FFSTN) for negative mode displays (white characters on a black background) and Color STN (CSTN), which integrates an RGB color filter for basic color capabilities.

Vertically Aligned Twisted Nematic (VATN): A Paradigm of Contrast

Vertically Aligned Twisted Nematic (VATN) technology represents a pinnacle in segment LCD performance, particularly concerning contrast and viewing angles. In VATN displays, the liquid crystal molecules are naturally aligned vertically to the glass substrates when no voltage is applied. This orientation creates a deep black background between crossed polarizers. When voltage is applied, the molecules tilt, allowing light to pass through and form light-colored characters. This mechanism results in exceptionally high contrast ratios, often exceeding 1000:1, and very wide viewing angles (around 170° horizontal, 110° vertical). VATN displays typically operate in negative mode (light characters on a dark, often "super-black" background) and are highly suitable for bright or outdoor environments due to their ability to achieve high brightness and maintain clarity in direct sunlight.

The diverse array of liquid crystal fluid types available, including TN, HTN, STN, FSTN, and VATN, constitutes a comprehensive spectrum of performance-to-cost ratios. This broad selection empowers product designers and manufacturers to precisely calibrate display characteristics to the specific demands of an application, facilitating highly customized solutions that align with both technical requirements and budgetary constraints. This capability is pivotal for offering versatile display solutions across various industries.

Here is a comparative analysis of these nematic LCD fluid types:

Fluid Type	Twist Angle (Typical)	Relative Cost	Viewing Angle	Contrast Ratio (Relative)	Response Time	Typical Background/Character Color	Key Features/Notes	Common Applications
TN (Twisted Nematic)	90°	Low	Narrow (30°)	Low/Average	Fastest	Black on Gray	Most inexpensive, best response time	Calculators, basic digital clocks
HTN (High Twisted Nematic)	110°	Slightly Higher than TN	Wider than TN	Better than TN, less than STN	Moderate	Varies	Very low operating voltages, more common pins	Handheld applications, portable instruments
STN (Super Twisted Nematic)	180-240°	Medium	Good/Average	Good	Moderate	Dark Blue on Gray; Dark Gray/Black on Yellow/Green	Higher contrast than TN, widely used monochrome	Digital clocks, calculators, industrial controls
FSTN (Film Super Twisted Nematic)	180-240° (STN base)	Medium-High	Good/Larger	Excellent/Sharper	Moderate	Black on White (paper-like)	STN with compensating film, higher contrast, wider angle	Medical equipment, retail displays, outdoor visibility
VATN (Vertically Aligned Twisted Nematic)	Vertical Alignment	High	Very Wide (up to 170° H)	Super High (1000:1+)	Faster than STN	Light characters on Super-black background (Negative mode only)	Deeper blacks, sunlight readability, high brightness	Automotive, medical, industrial control panels, consumer electronics

Architectural Ingenuity: Driving Mechanisms and Module Integration

Static and Multiplexed Driving: Optimizing Pin Count and Performance

The method by which segment LCDs are driven is a critical determinant of their complexity, pin count, and overall performance. In a "static driving" configuration, each individual segment on the display possesses its own dedicated control pin, in addition to a single common electrode shared by all segments. This direct control scheme offers the highest possible contrast and optimal visual performance for each segment. However, for displays with numerous segments, this approach necessitates a large number of electrical connections, which can increase complexity and cost.

To circumvent the high pin count associated with static driving for more complex displays, "multiplexed driving" was developed. This ingenious method reduces the number of required driver pins by sharing common and segment lines among multiple display elements. By rapidly switching voltages across these shared lines in a precise sequence, different segments can be activated or deactivated. For instance, a microcontroller (MCU) can drive a substantial number of segments (e.g., up to 512 segments with 121 pins) using multiplexing. While highly efficient in terms of pin count, multiplexing can introduce subtle trade-offs, such as a slight reduction in maximum contrast and a potential increase in current consumption, particularly with higher multiplexing ratios. The strategic decision between static and multiplexed driving directly influences the display's complexity, pin count, and performance characteristics. Multiplexing, while reducing pin count, introduces subtle compromises in visual fidelity, necessitating careful design optimization.

Chip-on-Board (COB) and Chip-on-Glass (COG) Integration: Form Factor and Robustness

The integration of the driving integrated circuit (IC) with the LCD panel is primarily achieved through two distinct methodologies: Chip-on-Board (COB) and Chip-on-Glass (COG).

Chip-on-Board (COB) technology involves mounting the driving IC directly onto a Printed Circuit Board (PCB), which is then electrically connected to the LCD panel. This method is renowned for its robustness and design flexibility, as the PCB provides a stable platform for the IC and allows for more complex or customized circuit layouts. COB modules are often favored in applications where durability and adaptability are paramount, such as automotive displays and certain home appliances. MalioTech offers Segment LCD Display COB Modules, particularly suited for electricity meters, underscoring their focus on applications requiring robust and reliable integration.

In contrast, Chip-on-Glass (COG) technology involves directly mounting the driving IC onto the glass substrate of the LCD itself. This direct integration results in significantly more compact and slimmer display designs, making COG modules a popular choice for miniaturized consumer electronics like mobile phones and PDAs where space is at a premium. While COG can be more cost-effective for high-volume production due to its streamlined design, it may entail higher initial tooling costs compared to COB. The evolution in integration methodologies, particularly the movement from COB to COG for certain applications, mirrors a broader industry trajectory towards miniaturization and increased component density in consumer electronics. Concurrently, COB technology retains its strategic importance in sectors demanding enhanced robustness and greater design flexibility, illustrating how different integration approaches serve distinct market imperatives.

Illumination and Polarizer Modes: Sculpting Visual Clarity

The Role of Backlighting: LED and CCFL Implementations

Since segment LCDs are non-emissive devices, they necessitate an external light source to ensure visibility in low-light conditions or complete darkness. The evolution of backlighting technologies has significantly influenced display performance. Historically, Cold Cathode Fluorescent Lamps (CCFLs) were widely employed, providing uniform illumination. However, CCFLs are less energy-efficient and require bulky inverters to convert DC voltage to the high voltages needed for operation, which limits how thin a display can be.

Modern segment LCDs increasingly utilize various Light Emitting Diode (LED) arrays for backlighting. These include full WLED arrays placed behind a diffuser or edge-lit EL-WLED designs where LEDs are positioned at the screen's edges. LED backlights offer superior energy efficiency, enable thinner display profiles, and provide advanced dimming capabilities, such as Pulse Width Modulation (PWM), which can dynamically enhance contrast and conserve power. The power consumption difference between an unlit (glass-only) segment LCD and one with an LED backlight is substantial; the latter can demand 10 to 25 times more power. The progression in backlighting solutions, from CCFL to sophisticated LED arrays, reflects a pervasive industry drive towards thinner display profiles, superior energy efficiency, and enhanced contrast ratios. This technological evolution significantly elevates the capabilities and aesthetic appeal of even basic segment LCDs, aligning them with contemporary demands for advanced display performance.

Transmissive, Reflective, and Transflective Polarizers: Adapting to Ambient Luminance

The polarizers are indispensable components in an LCD, critically determining how the display interacts with ambient light and its overall visibility.

Reflective displays incorporate a reflective surface or polarizer on their rear side, enabling them to utilize ambient light for illumination. These displays require no backlight, making them exceptionally power-efficient and highly readable in bright outdoor environments, where they appear sharp and clear, much like a mirror.

Transmissive displays, conversely, rely entirely on an integrated backlight for illumination. They are best suited for environments with low or controlled ambient light, as they do not effectively utilize external illumination.

Transflective displays offer a hybrid solution, striking a balance between reflective and transmissive properties. They incorporate a semi-transparent reflective layer that allows both ambient light to be reflected and backlight illumination to pass through. This versatility enables readability in a wide range of lighting conditions, from bright sunlight to complete darkness (with the backlight activated), providing an acceptable compromise for diverse applications.

The judicious selection of polarizer mode and the integration of appropriate backlighting are direct engineering responses to the anticipated ambient light conditions of the display's operational environment. These choices profoundly influence both the display's legibility across varying light levels and its overall power consumption, making them fundamental considerations in product design.

The Pervasive Utility: Segment LCD Applications Across Diverse Verticals

The consistent deployment of segment LCDs across a wide array of applications underscores their well-defined strategic niche. These displays are optimally suited for scenarios demanding clear, straightforward numerical or iconic information, often characterized by stringent requirements for low power consumption and robust durability, rather than complex graphical rendering. This consistent application profile solidifies their indispensable role in the market.

Precision in Measurement: Meters and Test Instruments

Segment LCDs are extensively employed in a broad spectrum of metering and test instruments due to their clarity, low power consumption, and reliability in displaying critical numerical data. This includes ubiquitous devices such as electricity meters, water meters, and gas meters, where precise and easily legible readouts are essential for consumers and utility providers. Their robust nature also makes them suitable for various industrial test and measurement equipment, where they provide real-time data on parameters like speed, pressure, and temperature.

Clarity on the Go: Consumer Electronics and Portable Devices

In the realm of consumer electronics, segment LCDs are prevalent in everyday gadgets that necessitate simple, clear readouts and extended battery life. Examples include digital watches, basic calculators, remote controls, and digital clocks. Their minimal power draw is particularly advantageous for portable devices, contributing significantly to prolonged operational times between charges.

Critical Information Delivery: Medical and Automotive Displays

Segment LCDs play a vital role in critical information delivery across specialized sectors. In medical devices, their accuracy, reliability, and low power consumption are paramount. They are integrated into blood glucose meters, digital thermometers, blood pressure monitors, and patient monitoring equipment, where clear and immediate display of vital signs is crucial for healthcare professionals and patients alike.

Within automotive applications, segment LCDs are integral to dashboards and instrument panels, providing essential vehicle parameters such as speedometers, fuel gauges, and odometers. Their robust construction allows them to withstand the often harsh environmental conditions encountered in vehicles, including wide temperature fluctuations and vibrations.

The Smart Meter Revolution: Enhancing Energy Transparency

A particularly salient application showcasing the strategic utility of segment LCDs is their integration into smart meters, especially within the energy sector. These displays serve as the primary visual interface, empowering consumers with real-time access to their energy consumption data, historical usage patterns, and even cost estimations. This level of transparency is instrumental in enabling consumers to make informed decisions about their energy usage, thereby fostering more efficient and sustainable practices.

MalioTech, a prominent provider of display solutions, offers a range of segment LCD displays specifically tailored for smart meter applications. Their offerings include:
