Magnetic Components of high-frequency reactor / Transformer，Common Mode Chock

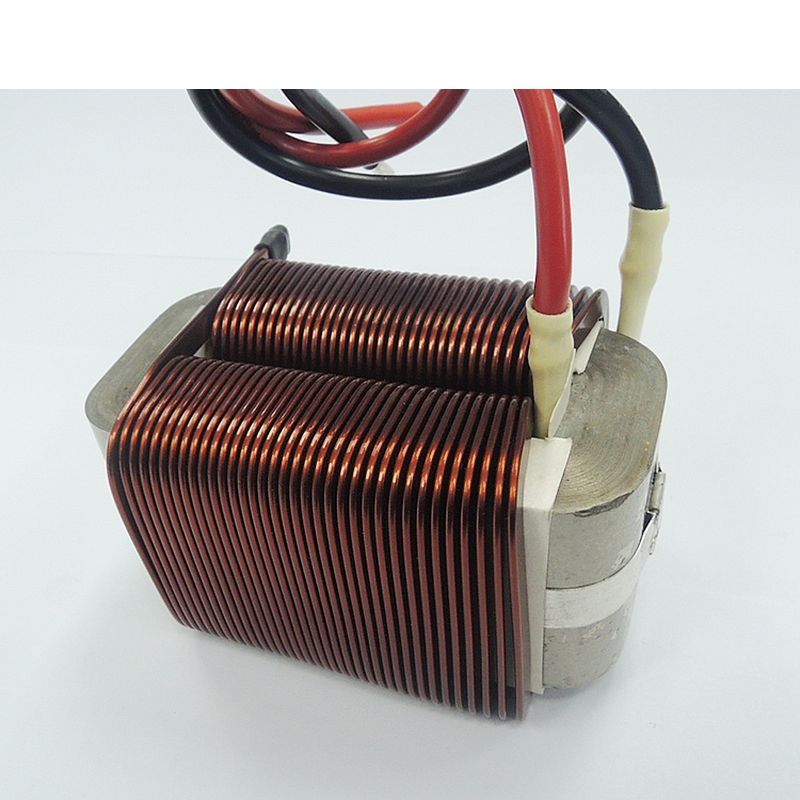

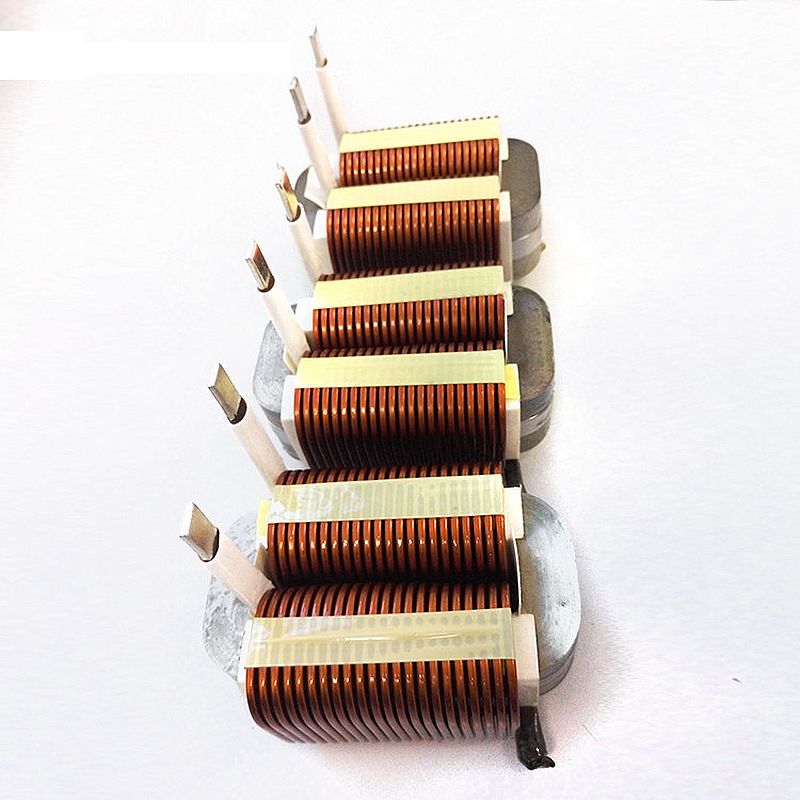

High-frequency reactor
Application
Photovoltaic, wind power, electric vehicles, rail locomotives, home appliances, uninterruptible power supplies and other industries.
Features
● High efficiency and low temperature rise
● Excellent temperature stability
● Excellent frequency characteristics
● Small size
High-frequency Transformer
Application
Electrostatic dust removal, electric vehicle charging equipment, welding power supplies, switching power supplies for railway transport, medical
Features
● High saturation magnetic induction - effective in reducing device size and mass
● High permeability and low coercivity - improved transformer efficiency and reduced excitation power
● Low remanence (<0.2 T) - for greater magnetic induction increments and greater output power
● Low losses - reduced transformer temperature rise and increased transformer efficiency
● Excellent temperature stability - long-term operation at temperatures from -45 to 130°C

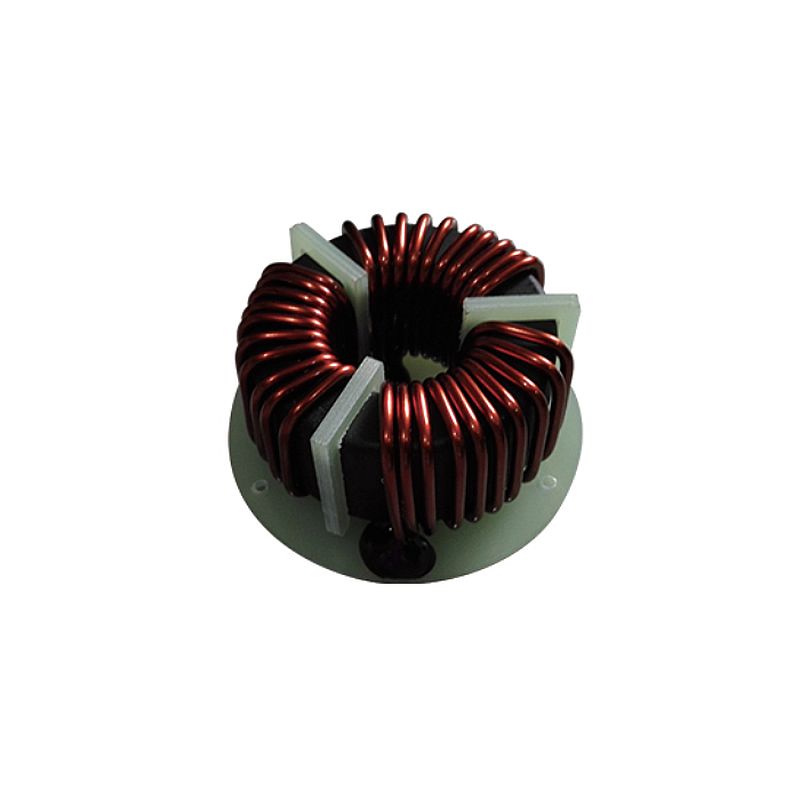

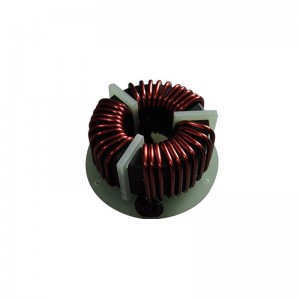

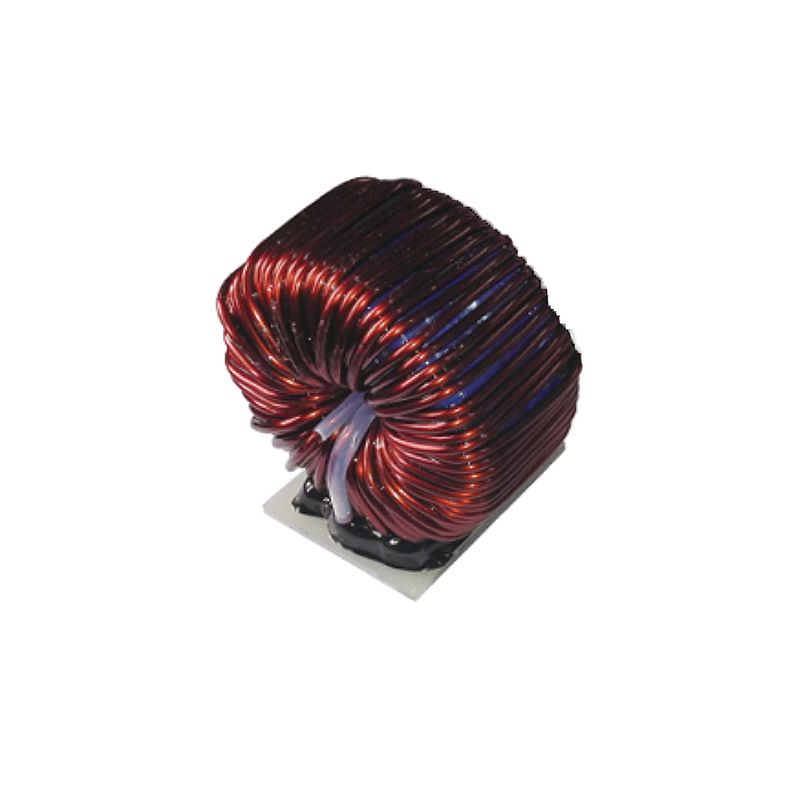

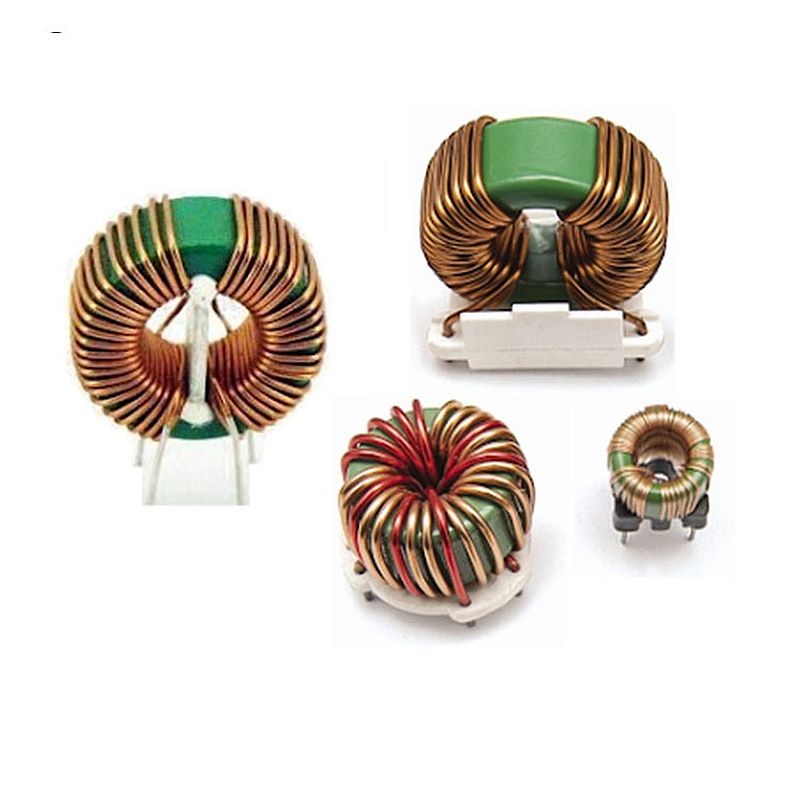

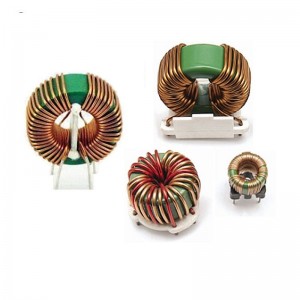

Common Mode Chock
Application
Inverter welding machines, electrostatic dust removal, high-frequency inductive heating, inverter drives, inverter air conditioners, flat-panel TVs, photovoltaic, electric vehicles
Features
The common mode inductor coil achieves a high impedance in the MHz band, contributing to effective noise reduction in the AM radio band.
