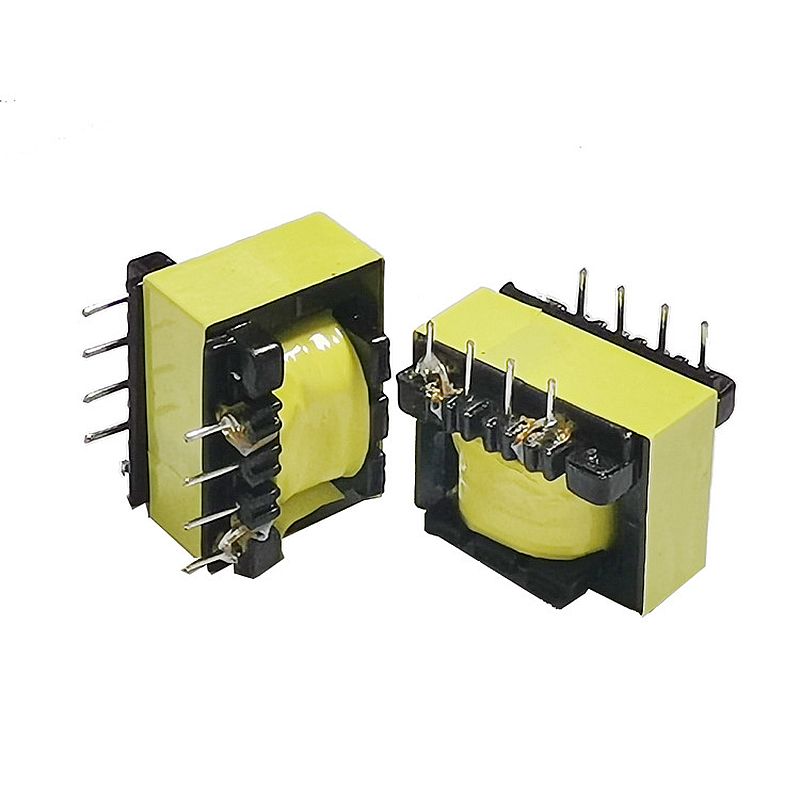

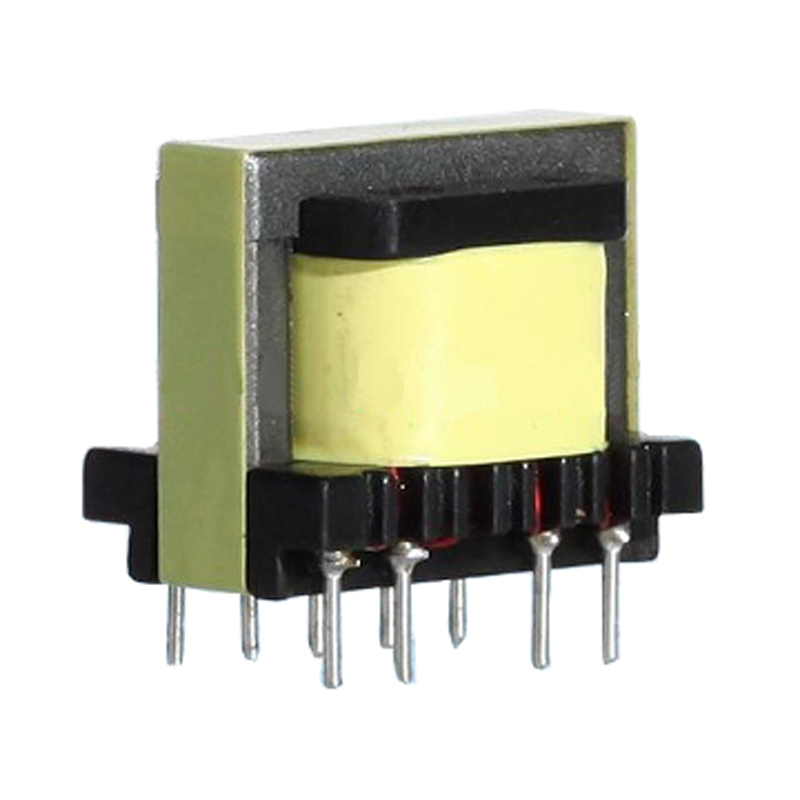

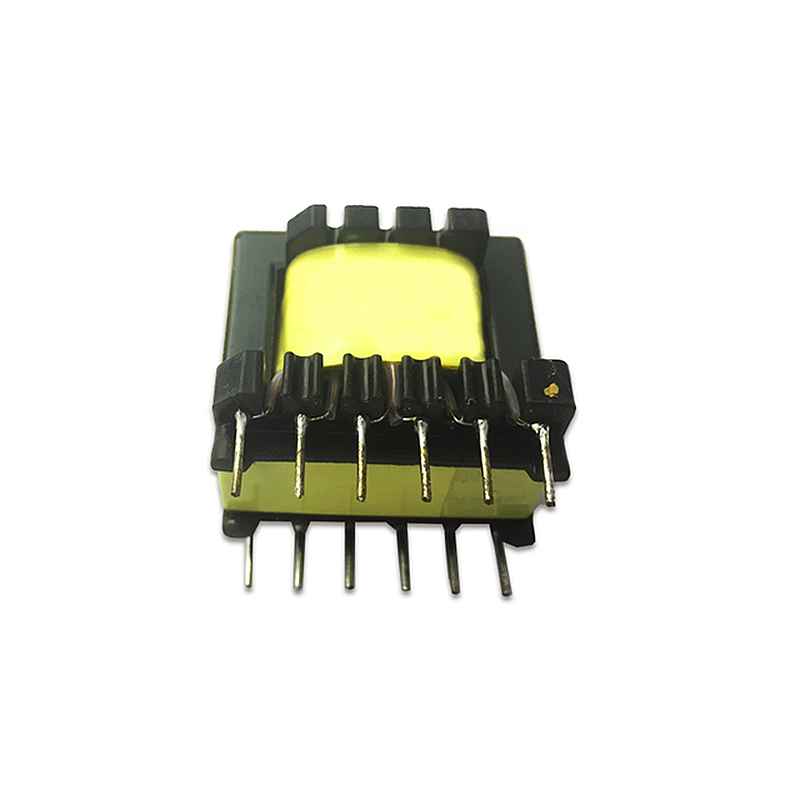

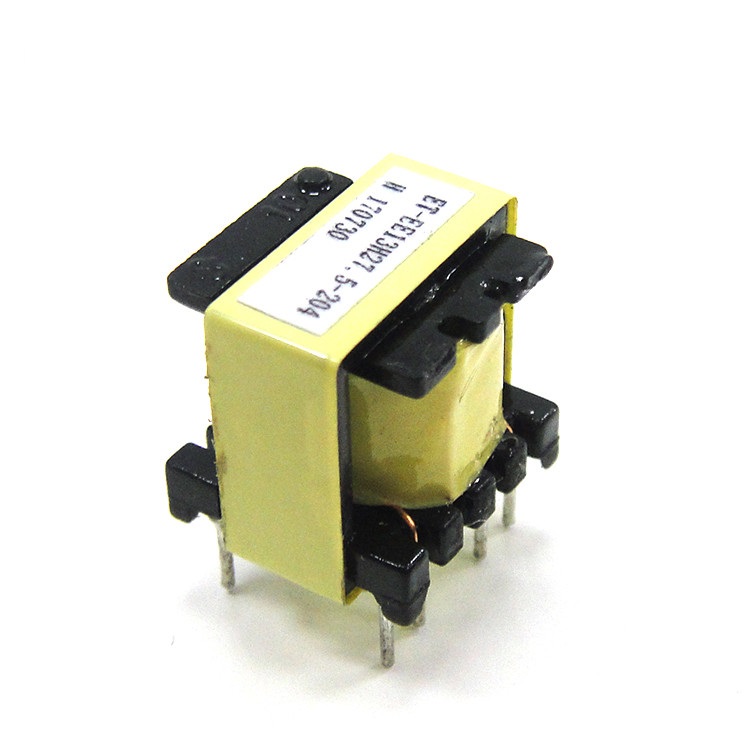

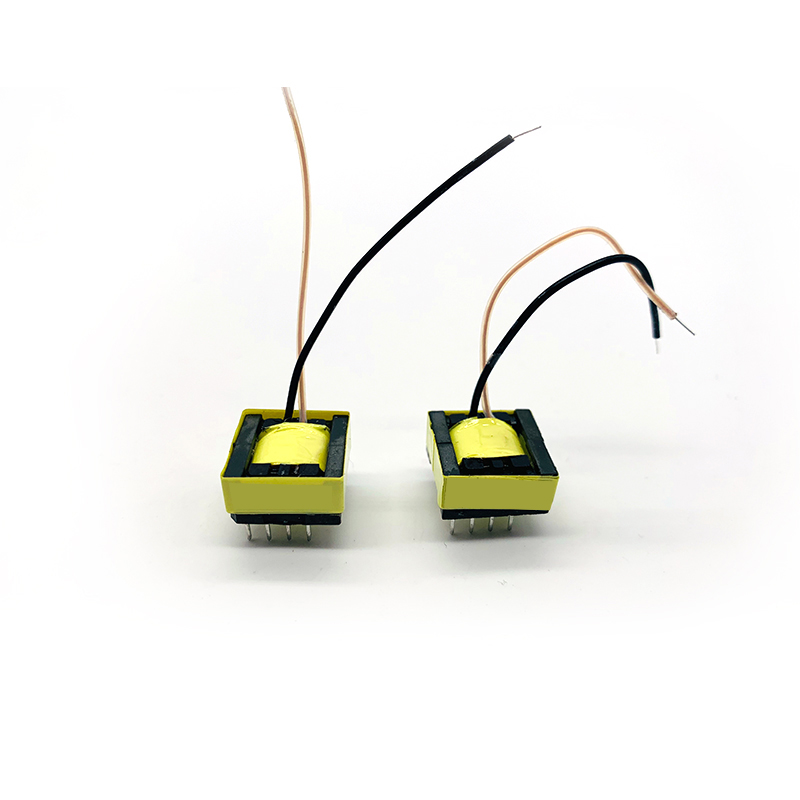

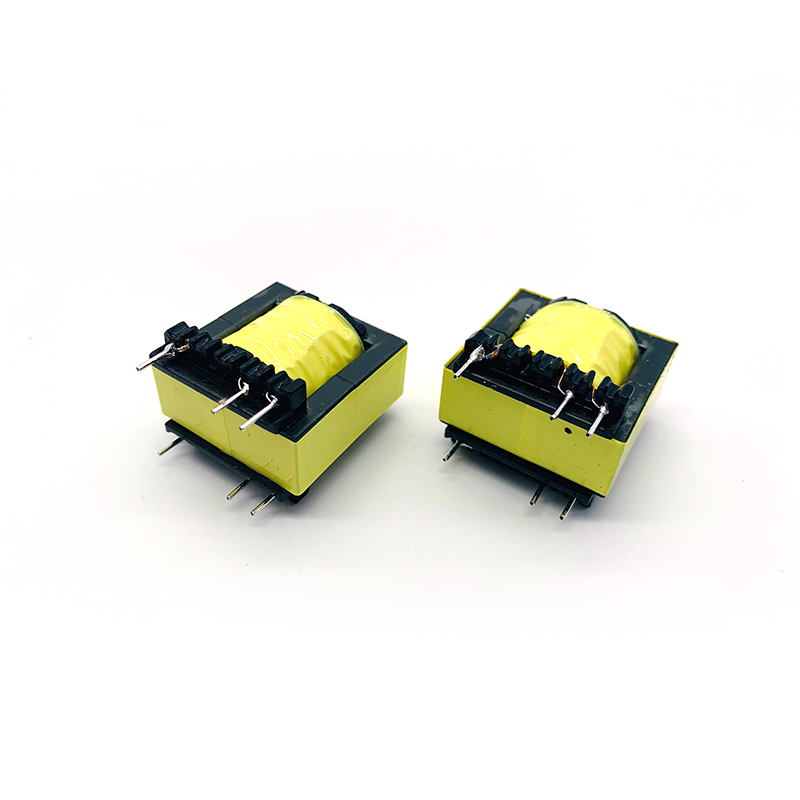

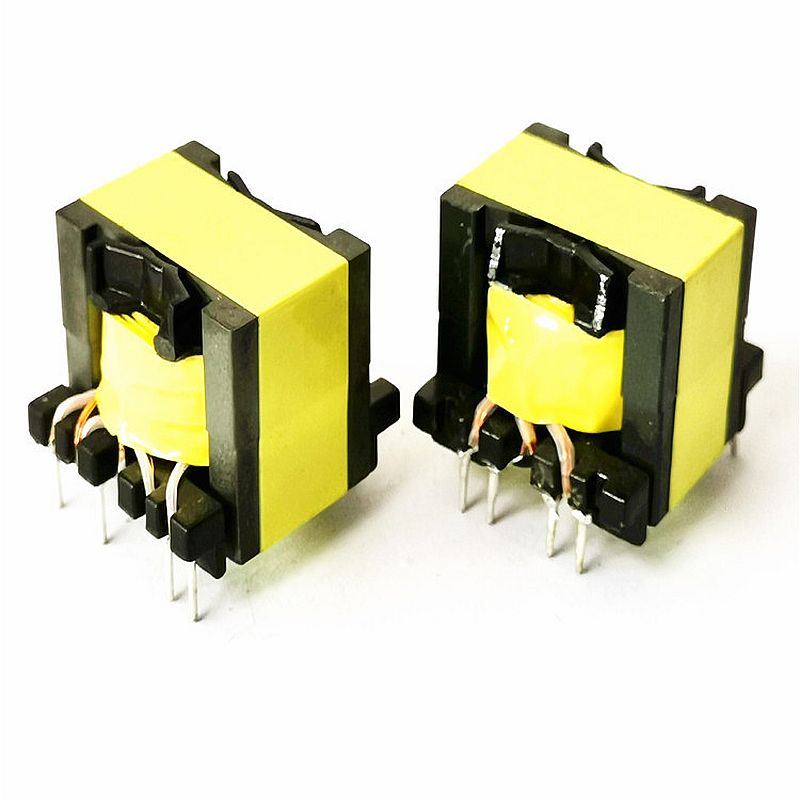

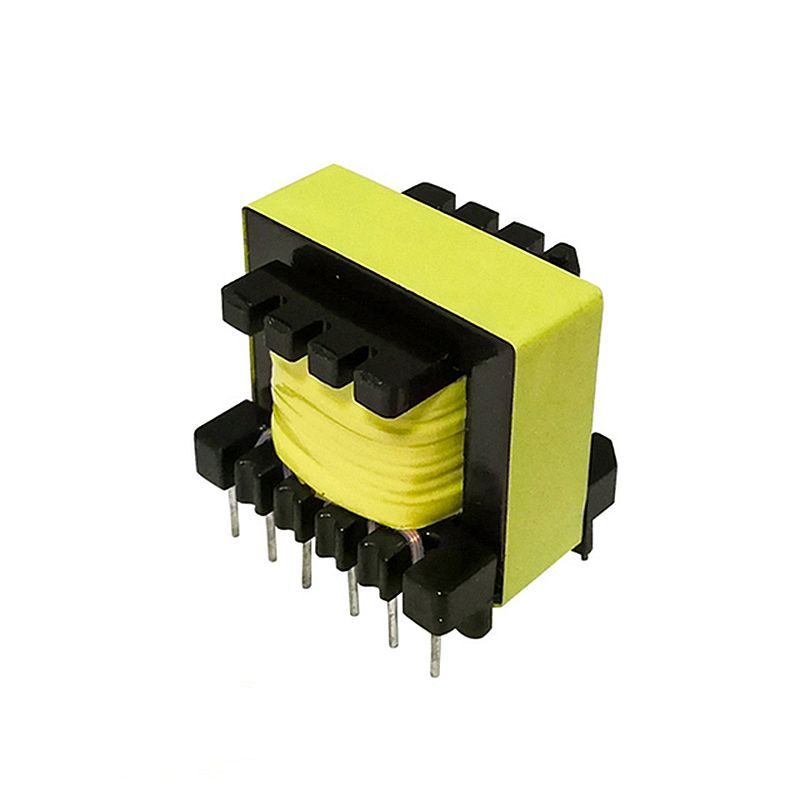

High Frequency Switching Power Transformer
Description
| Product Name | High Frequency Switching Power Transformer |
| P/N | MLHT-2182 |
| Phase-electrical | Single phase |
| Core material | Mn Zn power ferrite core |
| Input voltage | 85V~265V/AC |
| Output voltage | 3.3V~36V/DC |
| Output Power | 3w,5w,8w,,9w,15w,25w,35w,45w etc. |
| Frequency | 20kHz-500kHz |
| Operating Temperature | -40°C~+125℃ |
| Color | Yellow |
| Core size | EE,EI,EF,EFD |
| Components | Ferrite core, bobbin, copper wire, copper foil tape, Double insulated Tube |
| Shape Type | Horizontal type / vertical type / SMD type |
| Packing | Polybag +carton +pallet |
| Application | Household appliance, electronic communications, power meters, consumer electronics, switching power supply, smart home, automotive electronics and other fields. |
Features
High working frequency, high efficiency, small size, light weight
Excellent workmanship & quality guarantee
Wide range of input voltage
High dielectric strength between primary & secondary
Hi-Pot: Up to 5500VAC/5s
High saturation flux density
Small volume, light weight and nice appearance.
