China Supplier Current Transformer Core – PCB Mount Current-type Voltage/Potential Transformer PT – Malio Detail:

Description

Product Name	PCB Mount Current-type Voltage/Potential Transformer PT
P/N	MLVC-2144
Installation method	PCB mounted
Rated input current	2mA/2mA
Hi-pot test	3000V-4000V/1mA1min
DC resistance	DC500V/100M ohm
Core Material	Ultra crystalline Core
Accuracy	0.1,0.2,0.5
Load Resistance	20Ω,50Ω,100Ω
Insulation resistance	≥500MΩ (500VDC)
Insulation withstand voltage	4KV/1mA/60S
Operating Frequency	50-400Hz
Operating Temperature	-25℃ ~ +75℃ or -40℃ ~ +95℃
Insulation	Epoxy resin encapsulated
Outer Case	Flame Retardant PBT
Application	Voltage isolation measurement, power compensation, microcomputer protection, current measurement, precision power meter, Instrument and sensors

Features

Small in size

Various of configuration and output characteristics, customized products are welcome

High precision

Nanocrystalline core
Very high linearity

PCB mounted, epoxy resin encapsulated

Excellent linearity over the whole range

Rated input and output	Current ratio	Accuracy class	Load resistance	Frequency
2mA/2mA	1000:1000	0.1 or 0.2	≤150	50-400Hz
2mA/2mA	1000:1000	0.1 or 0.2	≤150	50-400Hz
1mA/1mA, 2mA/2mA	1000:1000	0.1 or 0.2	≤500	50-400Hz
2mA/2mA	1000:1000	0.1 or 0.2	≤200	50-400Hz

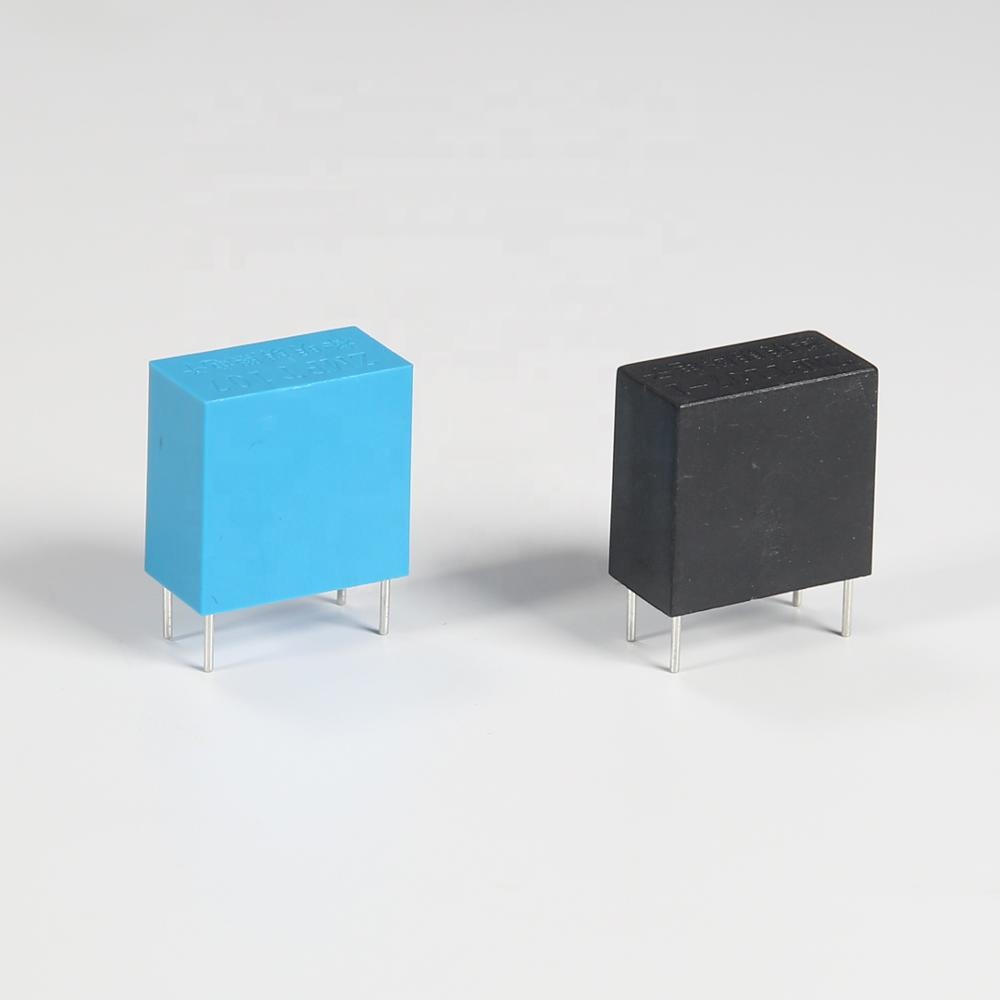

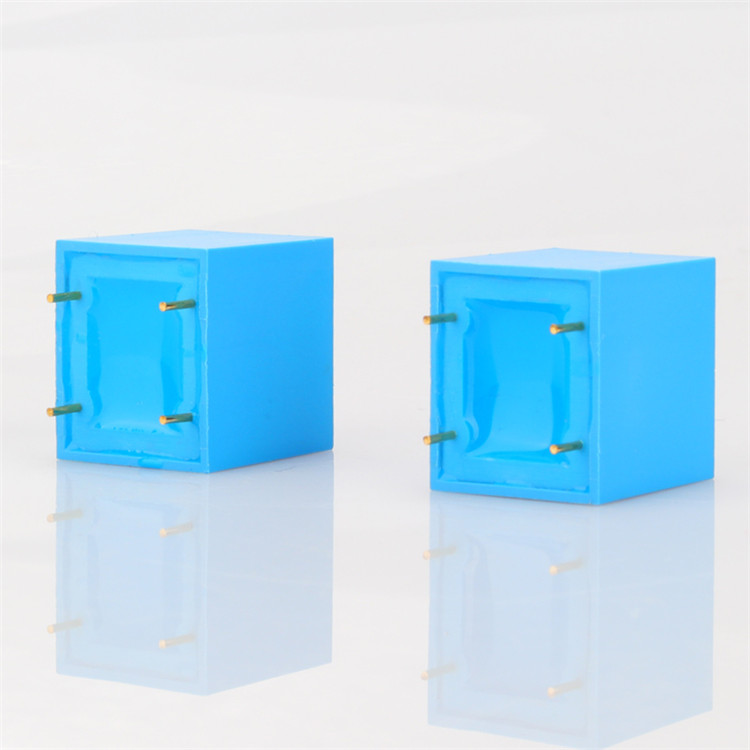

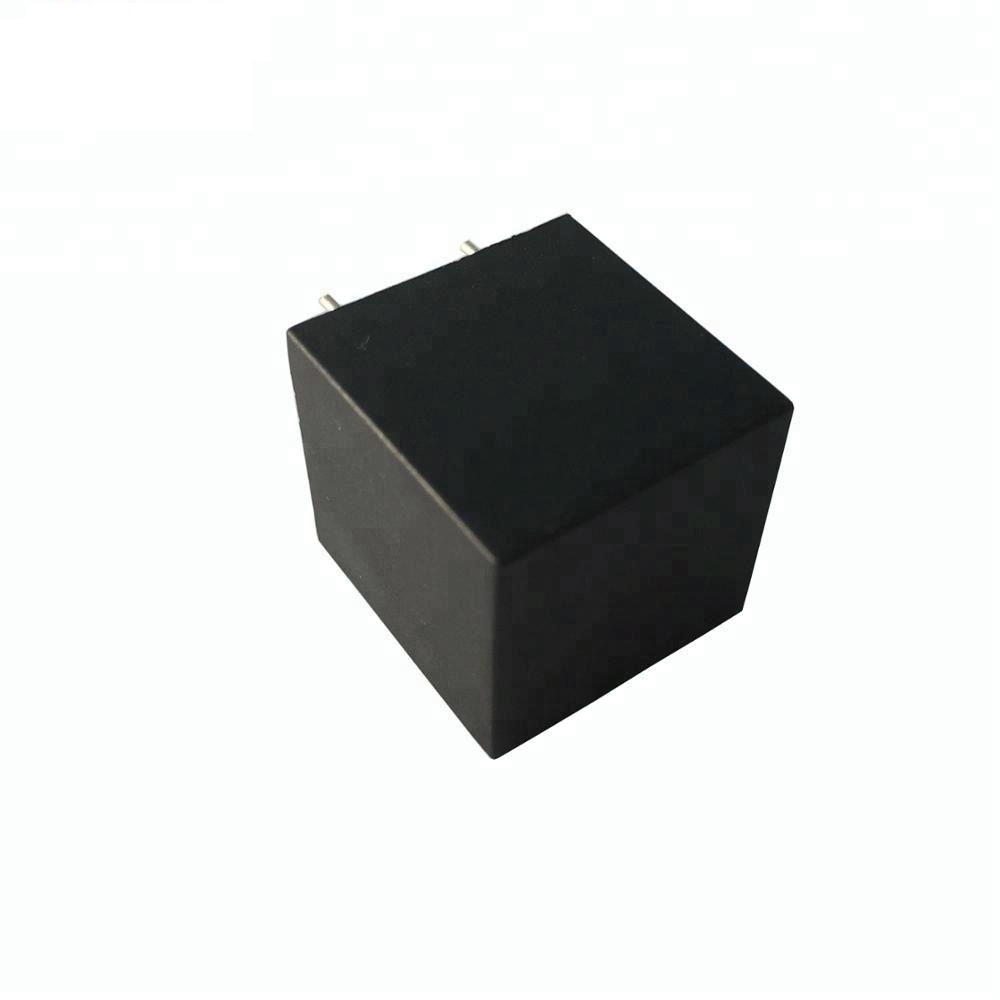

Product detail pictures:
