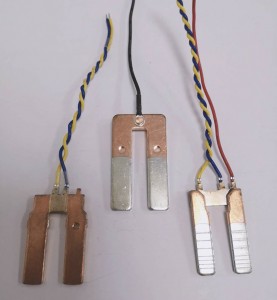

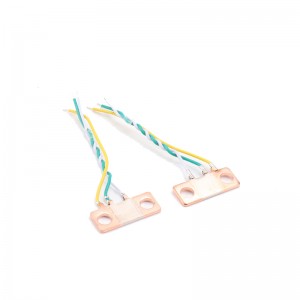

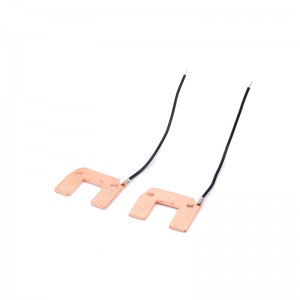

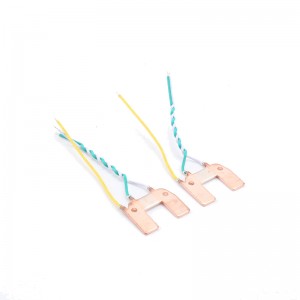

You need to install a manganin copper shunt with care if you want accurate current readings. When you mount a shunt for meter use, small mistakes can cause big problems. For example, poor contact or placing the EBW Shunt with Brass Terminal in a hot spot can change the resistance and make your measurements wrong. Correct installation keeps resistance steady and stops errors from creeping in. You protect your circuit and get reliable results by following the right steps.
Key Takeaways
- Ensure correct placement of the manganin copper shunt in the circuit path to achieve accurate current readings.
- Keep the shunt away from high-current components to prevent heat-related resistance changes and unstable measurements.
- Secure all terminal connections tightly to avoid loose connections that can lead to unstable readings and circuit failures.
- Select the right size and current rating for the shunt to ensure safety and accurate measurements in your circuit.
- Always calibrate the shunt before and after installation to maintain reliable current readings and avoid costly errors.
Incorrect Placement of Manganin Copper Shunt
Misalignment in Circuit Path
You need to place the manganin copper shunt in the correct spot in your circuit. If you put it in the wrong place, your current readings will not be accurate. The shunt must sit directly in the path where you want to measure current. If you connect it off to the side or in a branch, you will not get the true current value.
Tip: Always double-check your circuit diagram before you install the shunt. Make sure the current flows through the shunt and not around it.
Misalignment can also cause extra resistance. This extra resistance changes the voltage drop across the shunt. Your meter will show the wrong value. You can avoid this mistake by planning your layout and marking the correct position before you start soldering or connecting wires.
Proximity to High-Current Components
You should keep the manganin copper shunt away from high-current components like power transistors or large resistors. These parts can get very hot during operation. If you place the shunt too close, the heat can change its resistance. This change will make your current readings less reliable.
- Place the shunt in a cool area of the board.
- Leave enough space between the shunt and other hot components.
- Use a thermal map or temperature probe to check for hot spots before final placement.
If you ignore this advice, you may see drifting or unstable readings. Heat can also damage the shunt over time. Careful placement helps you get accurate and stable measurements from your manganin copper shunt.
Poor Electrical Connections with Manganin Copper Shunt
Loose Terminal Connections
When you connect a manganin copper shunt, you must make sure the terminals are tight and secure. Loose connections can cause many problems in your circuit. Vibrations or small movements can loosen the terminals over time. This leads to unstable readings and even circuit failure. You might see your measurements jump or drift, which makes it hard to trust your results.
Here is a table that shows the risks you face with poor electrical connections:
| Risk Type | Description |
|---|---|
| Connection loosening | Vibrations can gradually loosen electrical connections, leading to unstable performance and potential failures. |
| Component fatigue | Repeated mechanical stress can cause material fatigue, weakening components and leading to premature failure. |
| Alignment shifts | Constant vibrations can alter the positioning of critical components, disrupting precision measurements and operations. |
| Intermittent connections | Mechanical stress can cause brief interruptions in connections, leading to unstable current readings and inconsistent weld quality. |
| Structural damage | In extreme cases, severe impacts or shocks can physically damage components, completely halting welding operations. |
You should always check your connections after installation. Use a screwdriver or wrench to make sure the terminals do not move. If you ignore this step, you risk damaging your shunt and your circuit.
Inadequate Soldering Techniques
Good soldering is key for a reliable manganin copper shunt installation. If you use the wrong solder or apply too much heat, you can damage the shunt or create a weak joint. You need to pick solder with high electrical conductivity. This keeps resistance low at the joint. The solder must also match the chemical properties of manganin. This prevents corrosion and keeps your circuit safe.
"Right away," Kraft says, "we found out that the connections were a big problem." Kraft had previously shown in presentations that the condition and placement of current connections to the shunt can have substantial effects. For example, placing current connectors on the same side, or on opposite sides, of the shunt end plates makes a difference of about 100 µΩ/Ω in measured values.
When you solder, use a low melting point to avoid overheating the wire. Make sure the joint is strong enough to handle vibrations and shocks. A weak solder joint can break or cause intermittent connections. Always inspect your work and redo any joints that look dull or cracked. Careful soldering helps you get accurate and stable readings from your manganin copper shunt.
Improper Sizing and Rating of Manganin Copper Shunt
Choosing the right size and rating for your manganin copper shunt is very important. If you pick the wrong one, your circuit can become unsafe or give you bad readings. Many people make mistakes by not checking the current rating or ignoring the voltage drop. You can avoid these problems by learning what to look for.
Selecting Wrong Current Rating
You must match the current rating of the shunt to your application. If you use a shunt that is too small, it can overheat. Overheating can damage your circuit and even cause safety hazards. If the shunt is too large, you may not get accurate readings because the voltage drop will be too low for your meter to detect.
Here is a table that shows how improper sizing affects your circuit:
| Factor | Impact on Circuit Safety and Accuracy |
|---|---|
| Ampacity Ratings | An undersized shunt can overheat and damage the system. |
| Resistance Value | Low resistance values prevent significant voltage drops in measurements. |
| Power Dissipation | Must dissipate heat effectively to avoid damaging the system. |
You should always check the maximum current your circuit will carry. Pick a shunt that can handle this current without getting too hot. Use the formula P = I² × R to see how much heat the shunt will make. This helps you choose a safe and reliable part.
Overlooking Voltage Drop Specifications
You also need to pay attention to the voltage drop across the shunt. If the voltage drop is too high, your circuit may lose power or not work right. If it is too low, your meter may not read the current correctly. Always look at the voltage drop in your design.
Follow these steps to select the right manganin copper shunt for your needs:
- Calculate power dissipation using P = I² × R.
- Choose materials with low temperature coefficient, like manganin, for stable readings.
- Use Kelvin connections to reduce errors from contact resistance.
- Pick shunts with low inductance for high-frequency circuits.
By following these tips, you make sure your circuit stays safe and your measurements stay accurate.
Neglecting Environmental Factors for Manganin Copper Shunt
Ignoring Temperature Effects
You need to pay close attention to temperature when you install a manganin copper shunt. Even though manganin has a low temperature coefficient of resistance (about 15 ppm/°C), extreme heat or cold can still affect your measurements if you do not plan for it. Manganin’s stable properties mean its resistance changes very little with temperature. This makes it a top choice for precise current measurements in energy monitoring and automotive systems, where temperatures can swing widely.
Tip: Place your shunt away from heat sources like power transistors or resistors. Use temperature compensation features if your circuit will face big temperature changes.
If you ignore temperature effects, you risk getting inaccurate readings. Over time, even small temperature shifts can add up and cause errors. Many industries rely on the stable resistance of manganin copper shunts for long-term accuracy. You help your circuit stay reliable by keeping the shunt in a stable environment.
Here is a table that shows how environmental factors can affect your shunt:
| Environmental Factor | Description |
|---|---|
| Temperature Stability | Manganin shunts have a low-temperature coefficient of resistance, ensuring accuracy across a wide range of temperatures. |
| Stable Resistance Over Time | The resistance remains stable over extended use, crucial for long-term accuracy in measurements. |
| Storage Conditions | Shunts should be stored in a dry environment to prevent moisture-induced corrosion, which can affect precision. |
| Anti-Oxidation Packaging | Using sealed or vacuum-sealed packaging protects shunts from air and humidity during long-term storage. |
| Avoid Physical Stress | Storing shunts in padded containers prevents physical damage that could lead to inaccurate measurements. |
Exposure to Moisture or Corrosive Atmospheres
Moisture and corrosive gases can damage your manganin copper shunt. If you let water or chemicals reach the shunt, corrosion can form on the metal. This corrosion changes the resistance and makes your current readings less accurate. You should always store and use your shunt in a dry, clean place.
- Use sealed or vacuum-sealed packaging for long-term storage.
- Keep the shunt away from areas with high humidity or chemical fumes.
- Check for signs of corrosion before installation.
Some shunts come with moisture-proof technologies and anti-oxidation coatings. These features help the shunt work well even in tough environments. You can also find shunts with anti-interference abilities, which protect against electromagnetic pulses and radio frequency noise. These features keep your measurements stable, even when the environment is not perfect.
Note: Environmental adaptability means your shunt can handle high or low temperatures, humidity, and even high altitudes. This keeps your circuit running smoothly in many different places.
By controlling the environment around your manganin copper shunt, you make sure it lasts longer and gives you accurate results.
Inadequate Calibration of Manganin Copper Shunt
Skipping Initial Calibration
You should never skip the initial calibration when you install a manganin copper shunt. Calibration sets the baseline for your measurements. It matches the output voltage of the shunt to a known current. This step is very important because it helps you get accurate readings from the start. If you skip calibration, your meter may show the wrong current, even if the rest of your setup looks perfect.
Initial calibration becomes even more critical as current levels increase. When you measure higher currents, you need to lower the resistance of the shunt. Lower resistance makes it harder to measure small currents accurately. Calibration helps you adjust for these changes. You can trust your readings only if you complete this step.
Tip: Always use a precise reference current during calibration. This helps you set the correct output for your shunt.
Failing to Recalibrate After Installation
You also need to recalibrate your manganin copper shunt after you finish the installation. Moving or soldering the shunt can change its resistance slightly. Even small changes can affect your measurements. If you do not recalibrate, you may see errors in your current readings.
Here are some signs that you need to recalibrate:
- Your meter shows unexpected values.
- The readings drift over time.
- You notice changes after moving or adjusting the shunt.
You can set up a regular schedule for recalibration. Many professionals check their shunts every few months or after any major change in the circuit. This habit keeps your measurements reliable and your equipment safe.
Regular calibration protects your circuit and helps you avoid costly mistakes.
Ignoring Manufacturer Guidelines for Manganin Copper Shunt
Disregarding Installation Instructions
You might feel tempted to skip the installation instructions that come with your manganin copper shunt. This is a common mistake. Each manufacturer tests their shunt for best performance. They know the right way to mount and connect it. If you ignore their steps, you risk poor accuracy or even damage.
Manufacturers often include tips about:
- The correct torque for tightening terminals
- The best orientation for the shunt
- The right type of wire to use
Tip: Always read the instruction sheet before you start. If you lose it, check the manufacturer's website for a digital copy.
Some instructions warn you about things like over-tightening screws or using the wrong mounting holes. These details help you avoid stress on the shunt. Following the guide keeps your measurements steady and your equipment safe.
Using Non-Recommended Accessories
You may want to use wires, connectors, or mounting hardware you already have. This can cause problems. Manufacturers test their manganin copper shunt with certain accessories. Using other parts can change the resistance or cause loose connections.
Here is a table to show why you should use only recommended accessories:
| Accessory Type | Risk When Non-Recommended Parts Used |
|---|---|
| Wires | Higher resistance, less accurate readings |
| Connectors | Poor fit, risk of loose connections |
| Mounting Brackets | Extra stress, possible damage to the shunt |
Using the right accessories helps you get the best results from your shunt. It also keeps your circuit safe.
If you follow the manufacturer's advice, you avoid many common mistakes. You also make sure your manganin copper shunt works as designed.
You improve circuit accuracy and safety when you install a Manganin copper shunt with care. Studies show that parts and materials cause 46% of electrical accidents, so careful installation matters. Use this checklist to help you avoid mistakes:
- Check placement and alignment in the circuit.
- Secure all terminal connections.
- Choose the correct size and rating.
- Protect the shunt from heat, moisture, and corrosion.
- Calibrate before and after installation.
- Follow manufacturer instructions.
Review your installation practices often. This keeps your measurements reliable and your equipment safe.
FAQ
What is a manganin copper shunt used for?
You use a manganin copper shunt to measure electric current. The shunt creates a small, known voltage drop. You can read this drop with a meter to find the current in the circuit.
How do you know if your shunt is installed correctly?
Check the placement and connections. Make sure the shunt sits in the main current path. Tighten all terminals. Use a meter to verify stable readings. If you see drifting or odd values, inspect your work.
Can you solder directly to a manganin copper shunt?
Yes, you can solder to a manganin copper shunt. Use the right solder and low heat. Avoid overheating the shunt. Always inspect the joint for cracks or dull spots.
What happens if you skip calibration?
Skipping calibration leads to wrong current readings. Your meter may show values that are too high or too low. Always calibrate before and after installation for best accuracy.
How do you protect a shunt from moisture?
- Store the shunt in a dry place.
- Use sealed packaging.
- Check for corrosion before use.
A table can help you remember:
| Step | Purpose |
|---|---|
| Dry storage | Prevents rust |
| Sealed bag | Blocks moisture |
| Inspection | Finds early corrosion |
