Introduction: Unveiling the Electrical Shunt
In the intricate tapestry of modern electrical and electronic systems, precise current measurement is not merely a convenience; it is a foundational imperative. From ensuring operational safety to optimizing energy efficiency and enabling sophisticated control, the ability to accurately gauge electrical flow is paramount. This fundamental capability underpins the reliability and performance of everything from industrial machinery to the ubiquitous devices that populate daily life. The continuous monitoring of electrical current provides vital diagnostic information, allowing for proactive maintenance, fault detection, and the overall optimization of complex electrical architectures.
At its core, an electrical shunt is a device meticulously engineered to provide a low-resistance pathway for an electrical current, effectively diverting or bypassing a portion of the current around a specific point in a circuit. While the term "shunt" historically referred to diverting current away from sensitive meter movements in analog ammeters, it now broadly applies to precision resistors inserted directly into a circuit. These components are designed to generate a small, measurable voltage drop directly proportional to the current flowing through them. This voltage drop, though minimal, becomes the key to indirect current measurement, transforming a high current into a manageable voltage signal that can be safely and accurately processed by instrumentation.
II. The Material Science of Shunt Resistance: Beyond Pure Copper
While copper excels in its conductive properties, its utility in precision current sensing encounters a significant limitation: its relatively high Temperature Coefficient of Resistance (TCR). For pure copper, resistance increases by approximately 0.393% per degree Celsius, translating to a substantial 3900 ppm/°C. This means that as a copper shunt heats up due to the passage of current, its resistance changes perceptibly, leading to inaccuracies in the calculated current measurement. For applications demanding unwavering precision, such thermal drift is simply unacceptable. This fundamental limitation of pure copper for precision shunt applications necessitates the use of specialized alloys whose electrical resistance remains remarkably stable across varying temperatures, ensuring metrological integrity. This challenge has propelled innovation in material science, leading to the development of alloys specifically engineered to overcome copper's inherent temperature-induced resistance variations.
Manganin: The Quintessential Alloy for High-Precision Shunts
To overcome the thermal sensitivity inherent in pure copper, specialized alloys are employed, with Manganin standing as the preeminent choice for high-precision shunt resistors. This alloy, typically composed of approximately 84% copper, 12% manganese, and 4% nickel, is specifically engineered for metrological applications. Its unique metallurgical composition imparts several critical properties that make it indispensable in demanding electrical measurement scenarios:
• Low Temperature Coefficient of Resistance (TCR): Manganin boasts an exceptionally low TCR, often cited as less than 20 ppm/°C (0.0015%/°C) within its optimal operating range of +20 to +50 °C. This near-zero temperature dependence ensures that its resistance value remains remarkably consistent despite ambient or self-induced temperature fluctuations, providing unparalleled accuracy in measurement. The parabolic shape of its resistance-temperature curve further indicates a carefully engineered response, not merely an average low TCR, signifying a deep understanding of material physics in its development. This synergistic alchemy, where copper provides conductivity, manganese ensures resistance stability, and nickel enhances durability and mechanical strength, is what establishes Manganin as a standard material for precision shunt resistors.
• High Stability: Manganin shunt resistors exhibit high long-term stability of electrical resistance, minimizing drift over extended periods. This characteristic is crucial for applications requiring enduring reliability and consistent performance without the need for frequent recalibration.
• Extremely Low Thermal EMF versus Copper: The minimal thermal electromotive force (EMF) generated when Manganin is coupled with copper is another pivotal advantage. This property is vital in precision measurements, where even minute parasitic voltages, which could arise from temperature gradients across dissimilar metal junctions, can introduce significant errors. If the shunt material and its connecting leads (often copper) had a substantial Seebeck effect, temperature differences across the junctions would create spurious voltages, adding noise or offset to the primary voltage drop measurement and corrupting the current calculation. Manganin's specific composition minimizes this effect, ensuring the integrity of the measured signal.
• Excellent Linearity: The relationship between voltage and current across a Manganin shunt remains predictable and proportionate over a wide operating range, ensuring consistent accuracy across varying current loads.
MalioTech's Manganin Shunt Solutions for Unwavering Accuracy
MalioTech, recognizing the critical demand for precision in current measurement, offers a diverse portfolio of Manganin shunt solutions. These products are meticulously designed to deliver the high accuracy, stability, and reliability demanded by modern electronic systems, leveraging Manganin's superior properties. MalioTech's Manganin shunt resistors are available in various forms, including bar and cable wire configurations, both known for their low-temperature coefficient and high stability. These shunts are engineered for high precision current measurement with excellent thermal stability. They offer a wide range of resistance values, from 0.001 Ω to 100 Ω, and are capable of handling significant power ratings, from 0.1W to 500W, with tolerances as tight as ±0.01%. This robust performance ensures their suitability for demanding industrial and consumer applications.
The transition from the theoretical properties of Manganin to MalioTech's specific product offerings demonstrates how advanced material science is directly translated into tangible, high-performance industrial components. For instance, the MalioTech Electricity Meter PCB-mounted EBW Manganese Copper Shunt (P/N: MLSP-2172) exemplifies this commitment to quality. This particular shunt features a TCR of less than 50 ppm/K, ensuring stable performance across different current and temperature conditions, and boasts high accuracy, good linearity, and long-term reliability for critical applications such as electricity meters. The availability of various mounting types, including SMD, screw, and welding, along with customized design options, further highlights MalioTech's ability to cater to diverse engineering requirements. These offerings exemplify the industrial application of sophisticated material science, providing engineers with components that meet stringent accuracy and reliability requirements in real-world scenarios.
Constantan and Other Specialized Alloys: Expanding the Spectrum of Performance
Beyond Manganin, other specialized alloys contribute to the pantheon of shunt resistance materials, each possessing unique characteristics tailored for specific applications. The existence of multiple specialized alloys with similar low TCR properties but distinct secondary attributes (e.g., ductility, corrosion resistance, high resistivity) indicates a nuanced approach to material selection; it is not a "one-size-fits-all" scenario. Each alloy is optimized for a particular niche where its specific combination of properties provides the best performance for a given application.
• Constantan: This copper-nickel alloy, typically comprising 55% copper and 45% nickel, is another prominent choice for shunt resistance. It shares Manganin's virtue of a low temperature coefficient of resistance, typically ranging from 8 to 40 ppm/K. Constantan exhibits good ductility, allowing it to be easily drawn into wires, and possesses high specific thermal resistance, which contributes to its good insulating properties and reduced heat loss. Furthermore, it is resistant to atmospheric corrosion and can be easily soldered and molded. Constantan is particularly valued in strain gauges and thermocouples due to its stable electrical resistance over a wide temperature range and its strong negative Seebeck coefficient. It is also employed for DC current shunts, though it can exhibit continuous drift at temperatures exceeding 65°C.
• Nickel-Chromium (NiCr) Alloys: These alloys are characterized by high resistivity and strong resistance to oxidation and chemical corrosion. While primarily utilized for heating elements and high-value electrical resistors due to their ability to withstand temperatures up to 1250°C, specific NiCr compositions have been engineered for specialized shunts. These are particularly useful for high impulse current measurements, such as those encountered in lightning discharge studies, where the shunt must withstand significant heat generated during high current discharges. The design of such NiCr shunts often focuses on eliminating inductive effects to ensure accurate measurements of fast-changing currents.
• Karma Alloy: This alloy is also noted for its low temperature coefficient of resistance, indicating its suitability for precision resistance applications.
The selection of shunt material is a multi-factorial decision, requiring a deep understanding of the operating environment, the required precision, and secondary performance criteria beyond just current measurement. This reflects the complexity of real-world engineering challenges, where materials are chosen not just for their primary function but for their comprehensive behavior under specific operational stressors. The development and selection of specialized alloys like Manganin and Constantan for shunts exemplify the advanced material science required to overcome fundamental physical limitations, such as temperature-dependent resistance, in electronic components. This pursuit of material perfection directly translates into enhanced measurement precision, long-term reliability, and ultimately, the ability to build more sophisticated and trustworthy electrical systems.
| Material | Primary Composition (Approx.) | Key Electrical Property | Temperature Coefficient of Resistance (TCR) (Typical) | Thermal EMF vs. Copper | Ideal Applications |
| Copper | Pure Copper | High Electrical & Thermal Conductivity | ~3900 ppm/°C (High) | N/A (reference) | High-current connections, flexible shunts (braided/laminated) where precision is secondary to current handling and flexibility. |
| Manganin | 84% Cu, 12% Mn, 4% Ni | Low Resistance, High Stability, Excellent Linearity | <20 ppm/°C (Extremely Low) | Extremely Low | Precision current measurement, energy meters, battery management systems, high-end audio, industrial automation, laboratory equipment. |
| Constantan | 55% Cu, 45% Ni | Stable Resistance, Good Ductility, High Resistivity | 8-40 ppm/K (Low) | Strong Negative Seebeck Coeff. | Strain gauges, thermocouples, DC current shunts, heating elements. |
| Nickel-Chromium (NiCr) | Various Ni-Cr ratios | High Resistivity, Oxidation/Corrosion Resistance | Varies (e.g., 60-170 ppm/°C) | N/A | High-value resistors, heating elements, high impulse current shunts (specialized). |
III. Engineering Precision: Optimizing Current Sensing with Shunts
The efficacy of a current shunt transcends its material composition; it is profoundly influenced by meticulous engineering and design considerations. A primary objective in shunt design is to minimize power dissipation and the resultant voltage drop across the component. Shunt resistors in series with high-current loads can quickly become inefficient, dissipating power that could otherwise be delivered to the load. Therefore, shunts must possess an extremely low resistance value to curtail I²R power losses and the generation of heat. Simultaneously, they must feature adequate power ratings to safely carry the full current of the circuit under test. This presents a delicate design conundrum: a smaller resistance yields less power loss but also a smaller voltage drop, potentially leading to lower measurement resolution. Conversely, a larger resistance provides a more easily measurable voltage drop but increases power dissipation and self-heating. Striking the optimal balance between these competing factors is paramount for achieving both efficiency and granular measurement accuracy.
A cornerstone technique for achieving superlative accuracy in low-resistance measurements, particularly with high currents, is the Kelvin connection, also known as the 4-wire method. In this configuration, a shunt resistor is equipped with four separate terminals: two larger terminals for the primary current flow (force leads) and two smaller terminals for voltage measurement (sense leads). This segregation ensures that the voltmeter measures only the voltage drop directly across the resistive element of the shunt, effectively eliminating errors introduced by the resistance of the connecting wires, PCB traces, or contact points. For very low resistance values, where lead and contact resistance can be comparable in magnitude to the shunt's resistance, the Kelvin connection becomes indispensable for maintaining measurement integrity. This method significantly enhances the accuracy of current sensing, minimizes thermal drift by isolating the measurement from temperature-dependent lead resistance, and reduces noise in analog measurement circuits.
Beyond the Kelvin connection, mitigating parasitic inductance and environmental influences is critical for shunt performance. In applications involving high-frequency or rapidly changing currents, parasitic inductance within the shunt can introduce measurement errors and distort signals. Low-inductance shunt designs, such as tubular or specific metal film constructions, are therefore preferred for these dynamic scenarios. Furthermore, environmental factors such as temperature fluctuations, humidity, and mechanical shock can impact shunt accuracy and longevity. The selection of materials with low TCR, as previously discussed, directly addresses temperature stability. Robust packaging and mounting options are also crucial to ensure the shunt's reliable performance across its specified operating temperature range and under various mechanical stressors.
IV. The Ubiquitous Reach: Applications of Copper and Alloy Shunts
The versatility and precision of copper and alloy shunts render them indispensable components across an expansive spectrum of industries and applications, underpinning critical functions from energy management to advanced automotive systems.
Transforming Energy Management: From Smart Meters to Grid Monitoring
In the energy sector, shunts play a pivotal role in transforming how consumption is monitored and managed. They are fundamental to the operation of smart meters, providing the real-time current data necessary for accurate billing, load profiling, and demand-side management. The integration of shunts into electricity meters allows consumers to access immediate information about their energy usage, fostering more efficient and sustainable practices. For utility companies, this data enables remote meter reading, fault detection, and optimized power distribution. MalioTech's commitment to this critical sector is exemplified by its

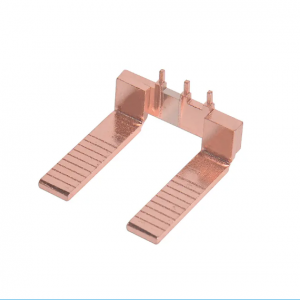

Electricity Meter PCB-mounted EBW Manganese Copper Shunt (P/N: MLSP-2172). This product is specifically designed for electricity meters, offering high accuracy, good linearity, and long-term reliability. Its features, such as small self-heating and stable performance across varying currents and temperatures, make it an ideal solution for the demanding environment of energy metering. This specialized shunt is mounted with electron beam welding (EBW) and is passivized by pickling for enhanced durability, ensuring consistent and precise current measurement for smart grid infrastructure.
Propelling the Future: Electric Vehicles and Advanced Battery Management Systems
The burgeoning electric vehicle (EV) market and the proliferation of advanced battery management systems (BMS) represent another significant application domain for shunts. In EVs, shunts are crucial for precise current monitoring within the battery packs, ensuring optimal charging, discharging, and overall battery health. A battery monitor shunt, typically installed on the main battery negative lead, enables real-time current measurement with high precision and minimal energy loss, providing vital data for calculating state-of-charge and state-of-health. This accurate current sensing enhances safety and efficiency in electric mobility, allowing for predictive maintenance and extended battery lifespan. Shunts are also integral to EV charging stations, where precise current measurement is essential for efficient power delivery and billing.
Industrial Automation, Power Distribution, and Telecommunication Infrastructure
Shunts are foundational elements in a multitude of industrial applications, contributing to the safety, control, and efficiency of complex machinery and systems. They are widely used in power supplies, inverter drives, and motor control systems for accurate current monitoring and fault detection. In power distribution networks, large copper shunts, particularly braided and laminated types, serve as flexible, high-current connectors in switchgear, transformers, generators, and substations, accommodating vibration and thermal expansion while ensuring robust electrical paths. Their role extends to electrolytic processes, general grounding, and rectifiers. Furthermore, shunts find application in telecommunication equipment, where precise current sensing is necessary for system stability and performance.
Integration in Consumer Electronics and Test Instrumentation
While often unseen, shunts are also integrated into various consumer electronic devices, particularly those requiring precise power management or current monitoring. This includes high-end audio equipment, where Manganin shunts help ensure signal integrity and freedom from distortion. They are also found in some home appliances. In the realm of test and measurement, shunts are indispensable components in digital multimeters (DMMs), ammeters, and oscilloscopes, enabling accurate current readings across a wide range of magnitudes. Their ability to provide a precise voltage signal proportional to current makes them ideal for laboratory equipment and calibration devices, where accuracy is paramount.
V. Conclusion: The Evolving Landscape of Current Sensing
The electrical shunt, a seemingly simple component, is in fact a sophisticated marvel of engineering and material science, playing an indispensable role in the accurate measurement and control of electrical current across virtually every modern industry. From its foundational principle rooted in Ohm's Law to its diverse manifestations in copper and specialized alloys, the shunt consistently provides the critical data necessary for operational safety, energy efficiency, and system optimization. The judicious selection of shunt material, whether it be the highly conductive copper for robust power connections or the thermally stable Manganin for precision metrology, is a testament to the tailored engineering required to meet the exacting demands of varied applications.
The continuous drive for higher precision, greater reliability, and enhanced integration capabilities will undoubtedly shape the future trajectory of shunt technology. Innovations in materials science will continue to yield alloys with even lower TCRs and improved long-term stability, pushing the boundaries of measurement accuracy. Concurrently, advancements in manufacturing processes, such as electron beam welding, will enable more compact, robust, and cost-effective shunt designs capable of seamless integration into increasingly miniaturized and complex electronic systems. As the world moves towards more electrified and interconnected infrastructures, from smart grids and electric vehicles to advanced industrial automation, the role of the humble yet powerful shunt will only grow in significance, ensuring the precise and safe flow of electrical energy that powers our progress.
Post time: Jul-15-2025
