The Silent Sentinels of Modern Electrical Systems
Relays, often considered the unsung heroes of electrical engineering, are fundamental components that enable control over diverse circuits. These electromechanical switches facilitate the safe and efficient management of power, from the simplest household appliance to the most complex industrial machinery. Within this critical domain, a particular class of device, the magnetic latching relay, stands apart for its inherent "memory" and remarkable energy efficiency. Unlike its conventional counterparts, a magnetic latching relay retains its operational state without continuous power, a characteristic that underpins its widespread adoption in contemporary systems. This exploration delves into the intricate mechanics and pervasive utility of these indispensable components.
The Electromechanical Genesis: Unraveling Basic Relay Operation
At its core, any magnetic relay operates on the foundational principles of electromagnetism, a nexus elegantly articulated by Faraday's Law of Induction. This seminal law posits that a changing magnetic field can engender an electromotive force (EMF) in a conductor, thereby inducing an electric current. Michael Faraday's groundbreaking experiments in 1831, building upon Hans Christian Ørsted's discovery that electric currents produce magnetic fields, conclusively demonstrated that a time-varying magnetic flux is the catalyst for induced current. This phenomenon forms the bedrock for numerous electrical devices, including transformers, inductors, and, critically, relays.
The operational anatomy of a standard magnetic relay is deceptively simple yet profoundly effective. It comprises three primary constituents: a coil of wire, a movable armature, and one or more sets of contacts. When an electric current traverses the coil, it generates a transient magnetic field. This field, in turn, exerts an attractive force upon the ferromagnetic armature, causing it to pivot or translate. This mechanical movement is precisely engineered to either establish (make) or interrupt (break) a connection with fixed contacts, thereby opening or closing an independent electrical circuit. Relays typically feature contacts configured as Normally Open (NO), Normally Closed (NC), or Double Throw (DT), also known as "Form C" or change-over contacts, which switch between two circuits.
The inherent characteristic of a conventional relay is its ephemeral switching action. Such devices necessitate a continuous application of power to their coil to maintain the actuated state. Upon the cessation of this control power, the armature, typically biased by a spring or gravity, reverts to its original, de-energized position, disconnecting the controlled circuit. This dependency on persistent energization, while suitable for many applications, presents limitations in scenarios prioritizing power conservation or state retention during power interruptions. The fundamental interplay of electromagnetism and mechanical action means that relays are not merely switches; they are electromechanical transducers whose operation is rooted in fundamental physics, specifically electromagnetic induction. This conversion allows a low-power control signal to manage high-power circuits, providing isolation and safety. This foundational understanding highlights why relays are indispensable in systems requiring signal isolation, power amplification, or remote control, setting the stage for understanding the magnetic latching variant's unique advantages.
Beyond Transience: The Distinctive World of Magnetic Latching Relays
Magnetic latching relays transcend the momentary nature of their conventional brethren by embodying bistability. This distinctive characteristic means they possess two inherently stable positions – a "set" (on) state and a "reset" (off) state – and will steadfastly maintain either configuration without requiring a continuous supply of electrical power to their coil. This intrinsic memory function is a pivotal advantage, as the relay "remembers" its last commanded state, even if the control signal is removed or power is interrupted.
The operational paradigm of magnetic latching relays is predicated on pulse-driven precision. Instead of continuous energization, these relays respond to momentary current pulses to effect a state transition. This pulse can be remarkably brief, often just a few milliseconds in duration.
Two primary architectures define magnetic latching relays based on their coil configurations:
Single-Coil Devices: In this design, a single coil serves both setting and resetting functions. The direction of the momentary current pulse's polarity determines the resulting state. A pulse of one polarity sets the relay, while a pulse of the opposite polarity resets it. This approach simplifies the coil structure but necessitates a control circuit capable of reversing polarity.
Dual-Coil Devices: Conversely, dual-coil latching relays feature two distinct coils: one dedicated to the "set" operation and the other to the "reset" operation. Each coil responds to a pulse, regardless of polarity (for AC-controlled types, steering diodes differentiate commands), providing a more straightforward control mechanism as no polarity reversal is required.
The linchpin of a magnetic latching relay's enduring state retention is the integration of a permanent magnet within its mechanism. When a coil is momentarily energized, the induced magnetic field works in concert with (or against) the permanent magnet's field to move the armature to a new position. Once the armature reaches this new position, the permanent magnet's field is sufficient to hold it there indefinitely, even after the electrical pulse to the coil dissipates. This ingenious design eliminates the need for continuous power to maintain the contact closure, a stark contrast to conventional relays. The bistable nature of magnetic latching relays, facilitated by permanent magnets and pulse-driven control, yields significant advantages in energy efficiency, thermal management, and operational reliability, particularly in environments prone to power fluctuations. This positions them as a superior choice for modern, resilient systems. This makes magnetic latching relays ideal for critical infrastructure and battery-powered devices where energy conservation and uninterrupted operation are paramount, positioning them as a superior choice for modern, resilient systems.
Latching vs. Non-Latching Relays: A Comparative Overview
To further delineate the unique attributes of magnetic latching relays, a comparative overview with their non-latching counterparts is illuminating.
| Feature | Latching Relay | Non-Latching Relay |
| Power Requirement | Pulse-only (momentary current) | Continuous power to maintain state |
| State Retention | Maintains state (memory) even after power removal | Returns to default state when power is removed |
| Energy Consumption | Low (power consumed only during state transition) | Higher (continuous power required to remain active) |
| Heat Generation | Low (due to intermittent coil energization) | Higher (due to continuous coil energization) |
| Control Mechanism | More complex (e.g., polarity reversal for single coil, dual coils) | Simpler (single signal to open/close contacts) |
| Noise | Silent operation (no continuous electrical activity) | Potentially noisier (due to ongoing electrical activity) |
| Typical Applications | Smart meters, Home automation, Security systems, Industrial automation | Motor control, Push-button applications, General purpose switching |
Engineering Elegance: Design Considerations for Robust Performance
The meticulous engineering of magnetic latching relays involves a delicate balance of material science and circuit design to ensure both stable state retention and reliable switching. A critical aspect lies in optimizing the magnetic circuit itself. The choice of core material is paramount; its permeability, which dictates how readily it can be magnetized, and its saturation characteristics, defining the maximum magnetic flux it can sustain, directly influence the relay's stability and switching efficacy. High-performance relays often employ advanced core materials such as nanocrystalline cores, known for their high permeability, or specialized silicon steel and ferrite cores. In parallel, minimizing air gaps within the magnetic circuit, particularly in designs like split-core current transformers (which share similar magnetic principles), is crucial for maintaining magnetic path integrity and enhancing accuracy. Precision clamps and latching mechanisms are engineered to mitigate these inherent air gaps.
Coil craftsmanship is another vital consideration. The number of turns in the coil and the magnitude of the current passing through it directly determine the strength of the resultant magnetic field. For optimal efficiency and performance, coils are often wound with materials like copper wire, celebrated for its low resistance and superior power transmission capabilities.
The longevity and reliability of a relay are intrinsically linked to its contact material science. Materials such as silver tin oxide (AgSnO2) are commonly chosen for relay contacts due to their exceptional durability and extended service life. These materials are designed to withstand repeated switching cycles, minimizing contact resistance and resisting degradation from arcing. Furthermore, the dielectric strength, representing the insulation's ability to withstand high voltages, is a critical safety parameter, with values often reaching 4KV between the coil and contacts in high-quality relays. Proper arc suppression techniques are also vital to prolong contact life, especially when switching inductive loads like motors or transformers.
The overall design process involves a sophisticated balancing act. Engineers must weigh factors such as power consumption, striving for minimal energy draw during operation and state retention. Response time, the speed at which the relay transitions between states, is also a key performance metric, often optimized by minimizing magnetic flux leakage. Physical size and dimensions are critical for integration into compact electronic systems , while robust insulation ensures safety and reliability across specified voltage ranges. The robust performance and extended lifespan of magnetic latching relays are a testament to advanced engineering, where the selection and optimization of core materials, coil designs, and contact alloys are meticulously balanced to achieve stable, efficient, and safe operation. For manufacturers like MalioTech, this translates into a commitment to material science and precision manufacturing, ensuring their products meet stringent performance and reliability standards for demanding applications.
The Unseen Architects: Pervasive Applications Across Industries
Magnetic latching relays are the unseen architects behind the seamless operation of countless modern systems, with their unique attributes making them indispensable across a broad spectrum of industries.

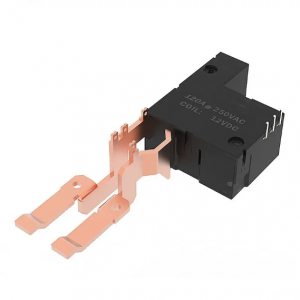

Smart Metering: The Quintessential Application
Perhaps the most prominent and impactful application of magnetic latching relays is within the burgeoning domain of smart metering. These relays serve as critical components for facilitating the remote disconnection and reconnection of power to consumer premises. This capability is fundamental to advanced energy management systems, enabling utilities to remotely control power supply, manage demand, and implement flexible billing strategies without the need for physical intervention. The inherent low power consumption of magnetic latching relays, requiring only a momentary pulse for state change, is a significant advantage in smart meters, where energy conservation and operational efficiency are paramount. Indeed, the quality and performance of the magnetic latching relay directly influence the overall reliability and safety of the smart meter itself. MalioTech, for instance, offers advanced solutions such as the 80a100a magnetic latching relay and the 120a magnetic latching relay, engineered to meet the stringent demands of modern energy grids. Their product portfolio also includes a comprehensive range of relay solutions for various current ratings and applications.
Magnetic latching relays are not merely components in smart meters; they are pivotal enablers of smart grid functionality, facilitating remote energy management, enhancing reliability, and contributing directly to energy conservation efforts. This implies that relay quality is a system-level determinant of grid stability and consumer safety. As smart grids evolve, the demand for high-quality, reliable magnetic latching relays will intensify, driving innovation in relay design and manufacturing to support increasingly complex and interconnected energy ecosystems.

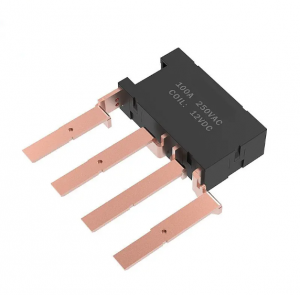

MalioTech Magnetic Latching Relay Key Specifications (Example)
| Product Model (P/N) | Current Rating (A) | Coil Configuration | Dielectric Strength (Coil to Contacts) | Contact Gap (mm) | Contact Pressure | Operational Endurance (Mechanical/Electrical) | Special Features |
| MLLR-2178 | 80A/100A | Single/Double Coil | 4KV | N/A | N/A | N/A | RoHS Compliant, Low power consumption, Small physical size |
| MLLR-2189 | 100A/120A | Single/Double Coil | 4KV | ≥1mm | 3000V | N/A | UC3 Approval, 6000A Short-circuit current capability, Low power consumption |
| (Various) | 30A-90A | Single/Double Coil | 1.5KV-4KV | 0.5mΩ-2.0mΩ Max. | N/A | 1,000,000 OPS Mechanical; 10,000 OPS Electrical | Anti-tampering, Anti-magnetic field (over 400mT for 80A model) |
Note: "N/A" indicates information not explicitly detailed for that specific product model in the provided context, but general specifications for similar products are included.
Beyond the Meter: Diverse Industrial and Consumer Deployments
The utility of magnetic latching relays extends far beyond smart metering, permeating various other critical sectors:
Industrial Automation: In automated machinery and production lines, these relays are indispensable for maintaining specific machine states, even through transient power interruptions or scheduled pauses, ensuring seamless resumption of operations. They provide the robust control necessary for complex industrial processes.
Building Automation Systems: They play a crucial role in regulating a building's infrastructure, from HVAC systems and lighting controls to security access points, ensuring consistent operation and energy savings. Their ability to retain state contributes significantly to the reliability of smart building ecosystems.
Security Systems: Latching relays are integral to alarm systems, where, once triggered, they can maintain the "alarm on" state even during power loss, guaranteeing system functionality upon power restoration. This resilience is paramount for uninterrupted security.
Motor Controls & Data Acquisition: They enable transient start signals for motors and are utilized in data logging applications to preserve vital data points during power outages. This ensures data integrity and operational continuity.
Telecommunication Equipment: In telecommunications systems, particularly for routing and switching, their memory property ensures dependable signal routing and circuit configuration. This is critical for maintaining network stability and connectivity.
Backup Power Systems: When integrated with battery backup systems, latching relays can automatically switch circuits to an auxiliary power source during a primary power failure, maintaining essential services with minimal disruption. This provides a vital layer of redundancy.
Consumer Electronics & Home Appliances: From smart plugs and lighting controls to various household devices, their low power consumption and ability to retain state make them ideal for remote-control systems and energy-efficient designs. The versatility of magnetic latching relays stems directly from their inherent advantages, positioning them as essential components across a myriad of applications where intelligent, energy-efficient, and reliable switching is paramount. This broad applicability underscores the significant market potential and continued relevance of magnetic latching relay technology, driving ongoing research and development to tailor these devices for emerging technological landscapes.
Advantages of Latching Relays: A Paradigm of Efficiency
The compelling advantages of magnetic latching relays position them as a superior choice for a multitude of contemporary electrical systems.
Unparalleled Energy Efficiency: The most salient benefit is their remarkable energy efficiency. Unlike conventional relays that demand continuous power to maintain an actuated state, magnetic latching relays only require a momentary current pulse to switch positions. Once the state is set, the permanent magnet sustains it without drawing further power, leading to substantial energy savings over time. This is particularly crucial in battery-powered devices and large-scale energy management systems, where every milliwatt saved contributes to operational longevity and reduced utility costs.
Superior Thermal Management: A direct corollary of reduced power consumption is minimal heat generation. Since the coil is not continuously energized, the relay itself and surrounding circuit components experience significantly less thermal stress. This contributes to a cooler operating environment, which in turn enhances the longevity and reliability of the entire electronic assembly by mitigating the detrimental effects of sustained elevated temperatures on sensitive components.
Enhanced Reliability and State Retention: Magnetic latching relays offer an inherent "memory" function, retaining their last commanded position even in the event of a power interruption or complete power failure. This characteristic is invaluable for critical systems where maintaining a specific operational state is paramount, preventing unintended resets or system disruptions that could lead to data loss, operational downtime, or safety hazards.
Durability and Longevity: The pulse-only operation translates to reduced mechanical wear and tear on the internal components, particularly the armature and contacts. This diminished physical stress contributes to a longer operational lifespan compared to relays that are constantly cycling or continuously energized, which are subject to greater fatigue. Furthermore, the absence of continuous electrical activity means quieter operation, reducing audible noise in sensitive applications. The cumulative benefits of magnetic latching relays—energy savings, reduced thermal stress, enhanced reliability, and extended lifespan—collectively contribute to a significantly lower total cost of ownership, making them an economically astute choice for long-term deployments. This economic argument reinforces their adoption in large-scale infrastructure projects and consumer products where long-term operational efficiency and minimal maintenance are key performance indicators.
Conclusion: Powering the Future with Intelligent Switching
Magnetic latching relays represent a pinnacle of electromechanical ingenuity, offering a compelling blend of precision, efficiency, and steadfast reliability. Their fundamental operation, rooted in Faraday's inductive principles, is elegantly enhanced by the integration of permanent magnets, enabling a unique bistable memory function. This allows for state retention with only momentary power pulses, yielding profound advantages in energy conservation, thermal management, and resilience against power interruptions.
From their ubiquitous presence in smart meters, where they facilitate intelligent energy management and remote control, to their critical roles in industrial automation, building systems, and consumer electronics, these relays are indispensable enablers of modern technological advancement. The meticulous design considerations, encompassing advanced core materials, robust contact alloys, and optimized coil architectures, underscore the commitment to engineering excellence that defines their performance. As the demand for more intelligent, energy-efficient, and reliable electrical systems continues to burgeon, magnetic latching relays will undoubtedly remain a cornerstone, powering the future with their intelligent switching capabilities.
